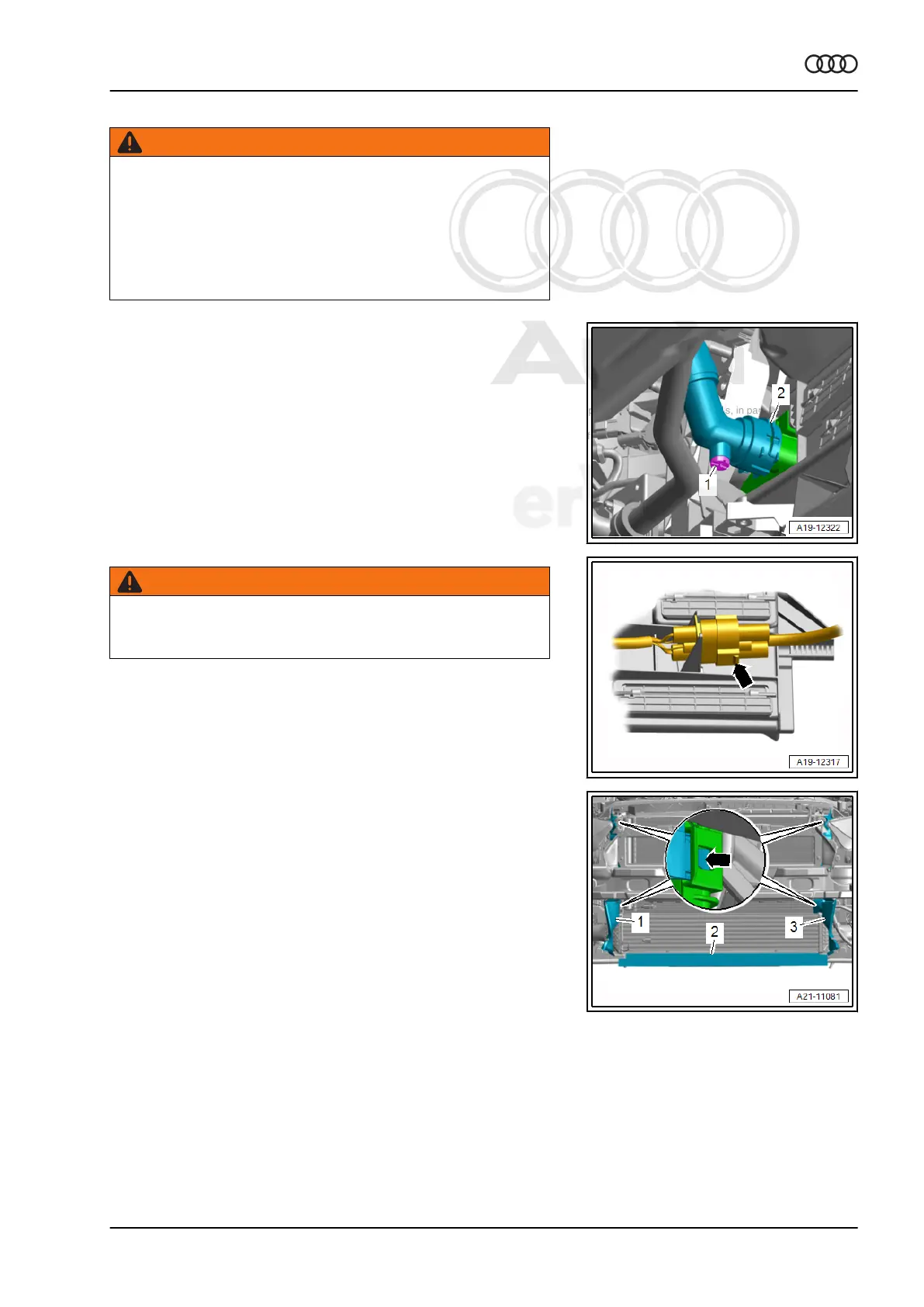

WARNING
The cooling system is under pressure when the engine is warm.
There is a risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
– Wear safety gloves.
– Wear protective eyewear.
– Reduce the pressure by covering the coolant expansion tank
cap with a cloth and carefully opening it.
– Place the container of the -VAS5014- or the -VAS6208- un‐
derneath.
– A4: remove the left headlamp. Refer to ⇒ Electrical Equip‐
ment; Rep. Gr. 94 ; Headlamps; Headlamp, Removing and
Installing .
– Lift the clamp -2- and remove the coolant hose from the lower
right of the radiator and drain the coolant.
WARNING
There Is a Risk of Injury If the Radiator Fan Turns on by Itself
– When performing procedures near the radiator maintain a
distance to the radiator.
– Disconnect the radiator fan connector -arrow-.
– Release the catches -arrow- and remove the air ducts
-1 and 3-.
– Unclip the air duct -2-.
Audi A4 2015 ➤ , Audi A4 China 2016 ➤ , Audi A5 2016 ➤
4-Cylinder Direct Injection 2.0L 4V TFSI Engine (EA 888 Generation III) - Edition 11.2019
4. Radiator/Radiator Fan 121
