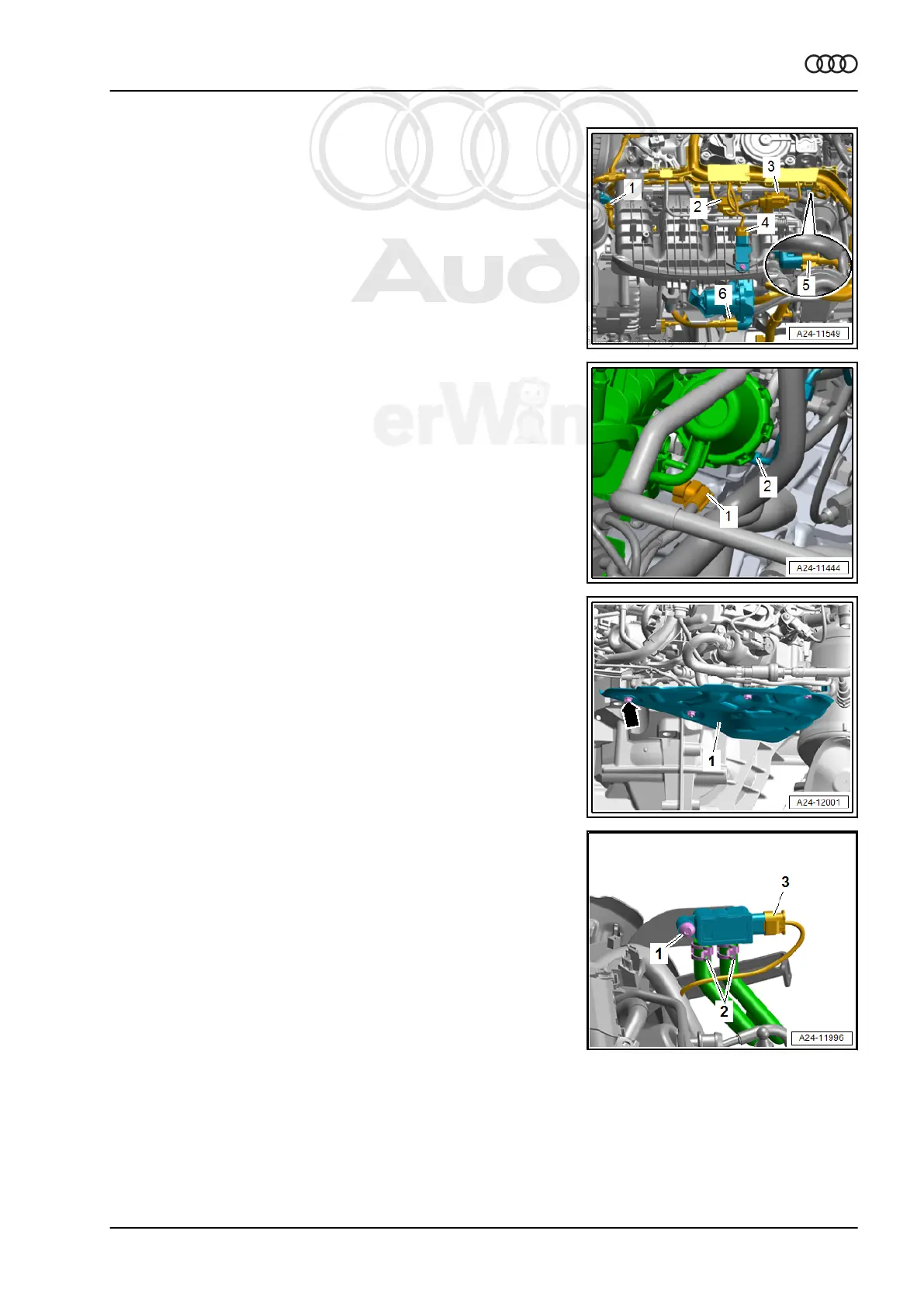

– Disconnect the connectors and free up the wires.
1 - For the Intake Manifold Runner Position Sensor - G336-
2 - For Low Fuel Pressure Sensor - G410- (Version with MPI
System)
3 - Central Connector for Fuel Injectors (Version with MPI Sys‐
tem)
4 - For the Intake Air Temperature Sensor - G42-
5 - For the Camshaft Position Sensor - G40-
6 - For the Throttle Valve Control Module - GX3-
– Disconnect the connector -1- for the Intake Manifold Runner
Control Valve - N316- .
– Disconnect the vacuum hose -2-.
– Remove the nut -arrow- on the heat shield. (Shown with the
particulate filter removed).
– Disconnect the connector -3-.
– Remove the bolt -1- and push the Differential Pressure Sensor
- G505- to the side.
Audi A4 2015 ➤ , Audi A4 China 2016 ➤ , Audi A5 2016 ➤
4-Cylinder Direct Injection 2.0L 4V TFSI Engine (EA 888 Generation III) - Edition 11.2019
3. Intake Manifold 155
