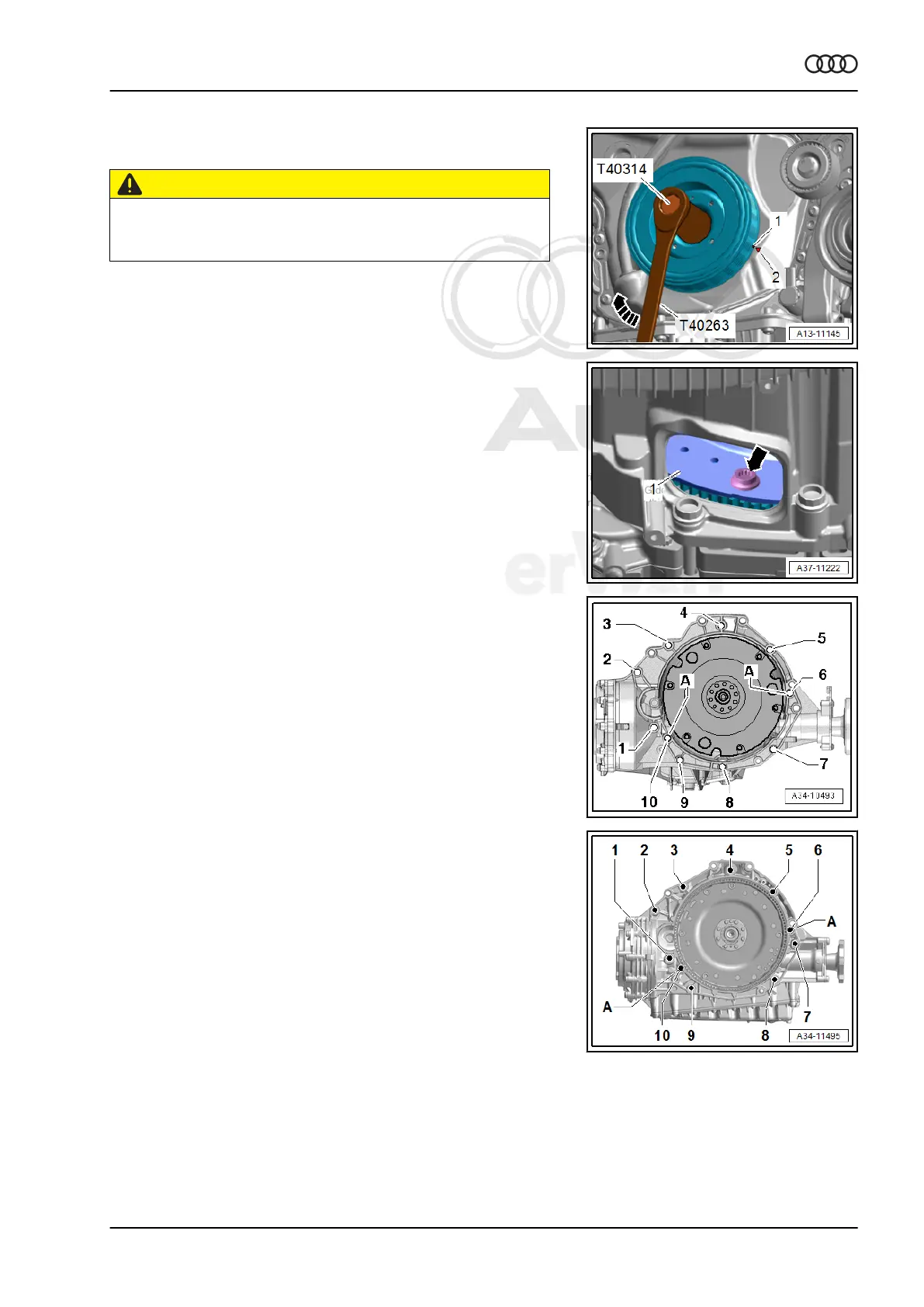

– To loosen the bolts for the flywheel, counterhold the crankshaft
using the -T40263- and -T40314- .
CAUTION
Risk of Damaging the Engine by the Timing Mechanism Skip‐
ping
– Only let the engine turn in the direction of engine rotation.
– Turn the crankshaft an additional 120° respectively in the di‐
rection of engine rotation -arrow-.
– Remove the three bolts -arrow- for the flywheel -1-.
Vehicle with Manual Transmission:
– Loosen the bolt -1- using the - VAG1332/14- and -VAS6948- .
– Remove the bolts -6 through 10- that attach the engine to the
transmission.
Vehicle with Dual-Clutch Transmission:
– Loosen the bolt -1- using the - VAG1332/14- and -VAS6948- .
– Remove the bolts -6 through 10- that attach the engine to the
transmission.
