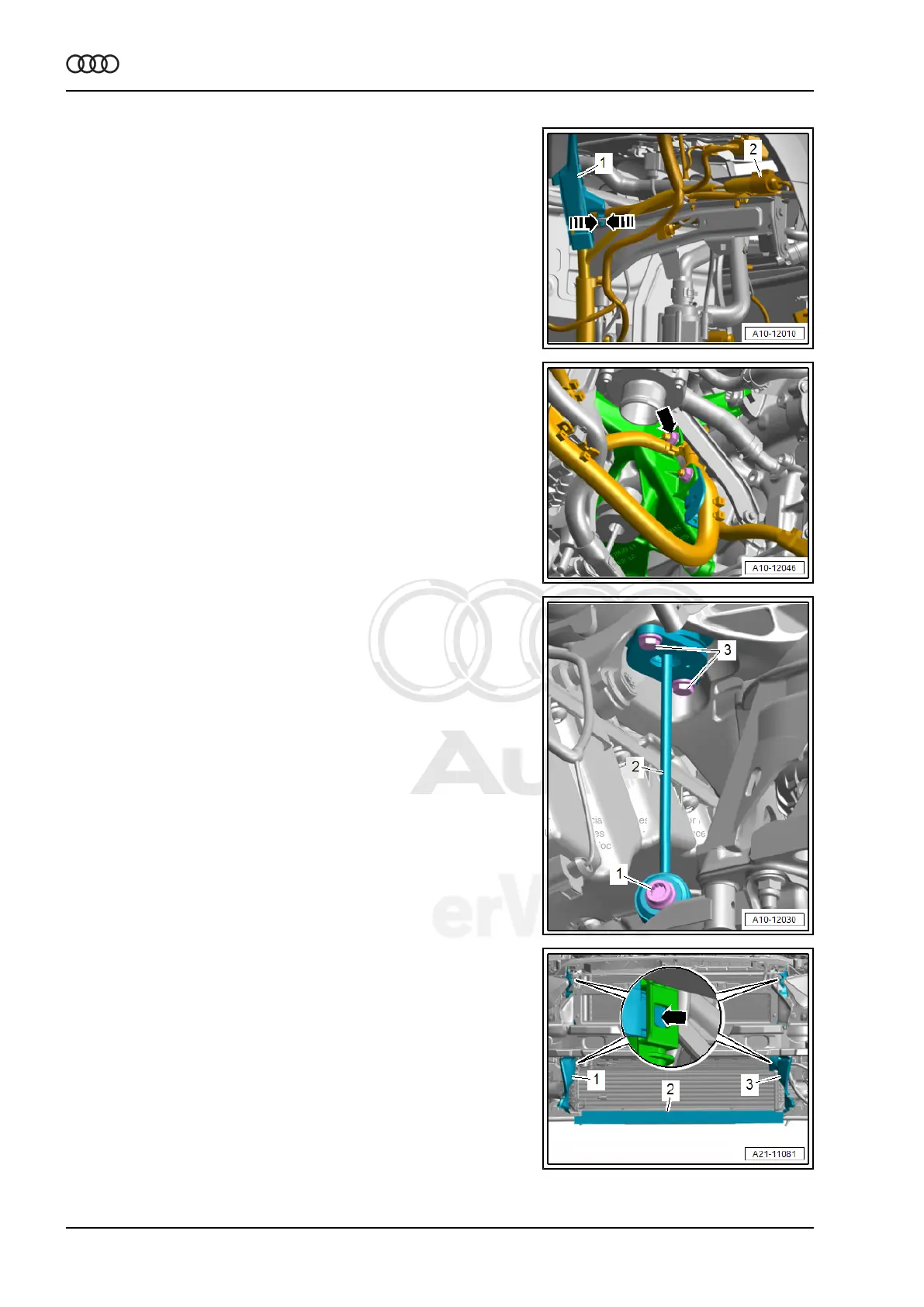

– Remove the connector -2- from the bracket and disconnect it.
– Release the catches in direction of -arrows- and free up the
wiring duct -1-.
– Free up the wiring harness to the engine.
– Remove the nut -arrow- and free up the ground wire.
– Remove the left and right bolts -1-.
– Release the catches -arrow- and remove the air ducts
-1 and 3-.
– Unclip the air duct -2-.
