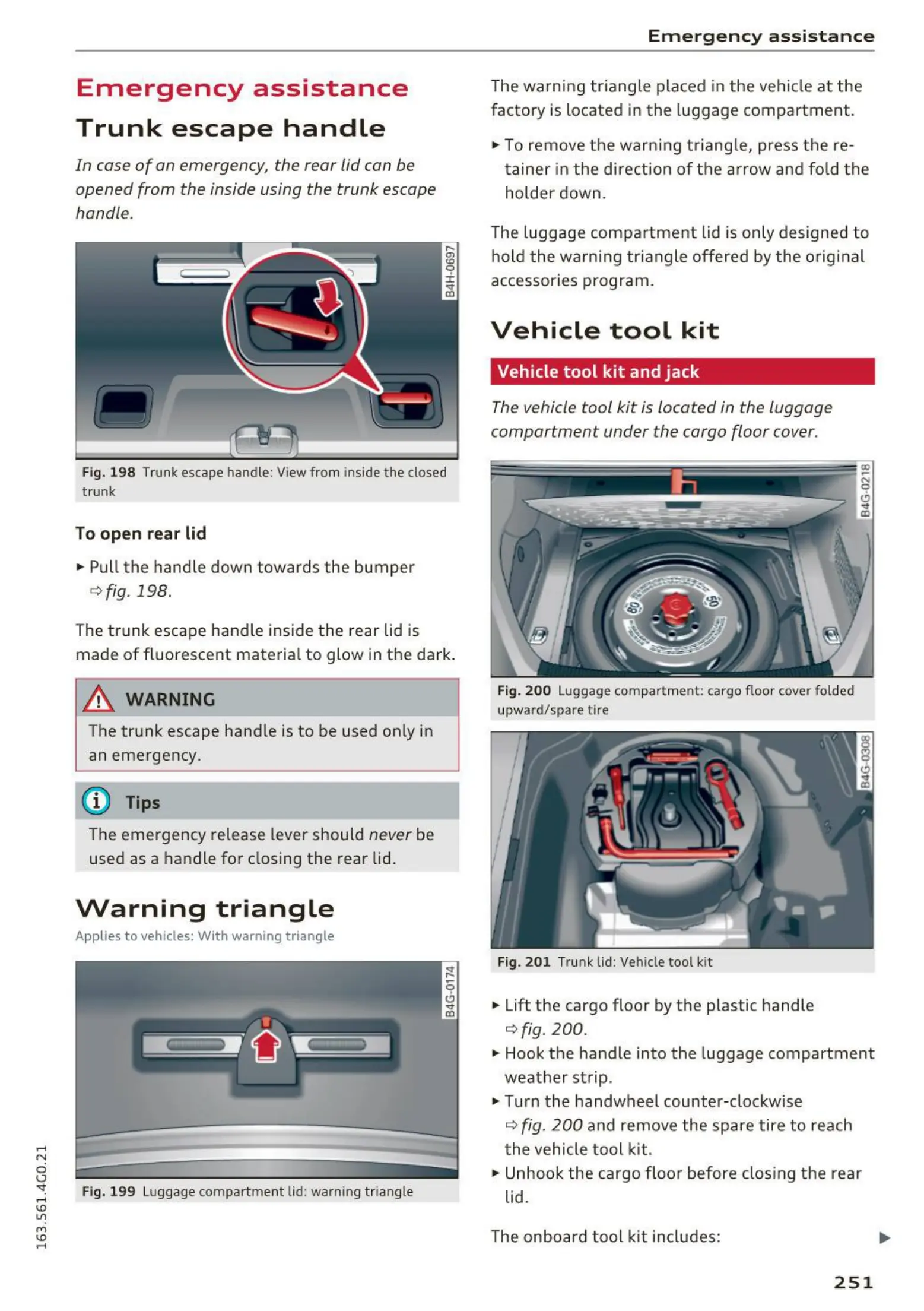

Emergency assistance
Trunk escape handle
In case of an emergency, the rear lid can be
opened from the inside using the trunk escape
handle.
Fig. 198 Trunk escape handle: View from inside the closed
tru nk
To open rear lid
.,. Pull the handle down towards the bumper
<=>fig . 198.
The trunk escape handle inside the rear lid is
made of f luorescent material to glow in the dark.
&_ WARNING
The trunk escape handle is to be used only in
an emergency.
@ Tips
The emergency release lever should never be
used as a handle for closing the rear lid.
Warning triangle
Applies to vehicles: With warning triangle
Fig. 199 Luggage compartment lid: warn ing t riangle
Em er gen cy a ss istanc e
The warning triangle placed in the vehicle at the
factory is located in the luggage compartment.
" To remove the warn ing triangle, press the re -
tainer in the direction of the arrow and fold the
holder down.
The luggage compartment lid is only designed to
hold the wa rning t riangle offered by the original
accessories program .
Vehicle tool kit
Vehicle tool kit and jack
The vehicle tool kit is located in the luggage
compartment under the cargo floor cover.
Fig. 200 Luggage compa rt m ent : cargo floor cover fo lded
upwa rd / spa re t ire
Fig. 201 Trunk lid : Vehicle too l kit
.,. Lift the cargo floor by the plastic handle
<=>fig. 200.
a,
-
N
9
(!)
..
CD
" Hook the handle into the luggage compartment
weather strip.
" Turn the handwheel counter-clockwise
<=> fig. 200 and remove the spare tire to reach
the vehicle tool kit .
.,. Unhook the cargo floor before closing the rear
lid .
The onboard tool kit includes:
25 1
