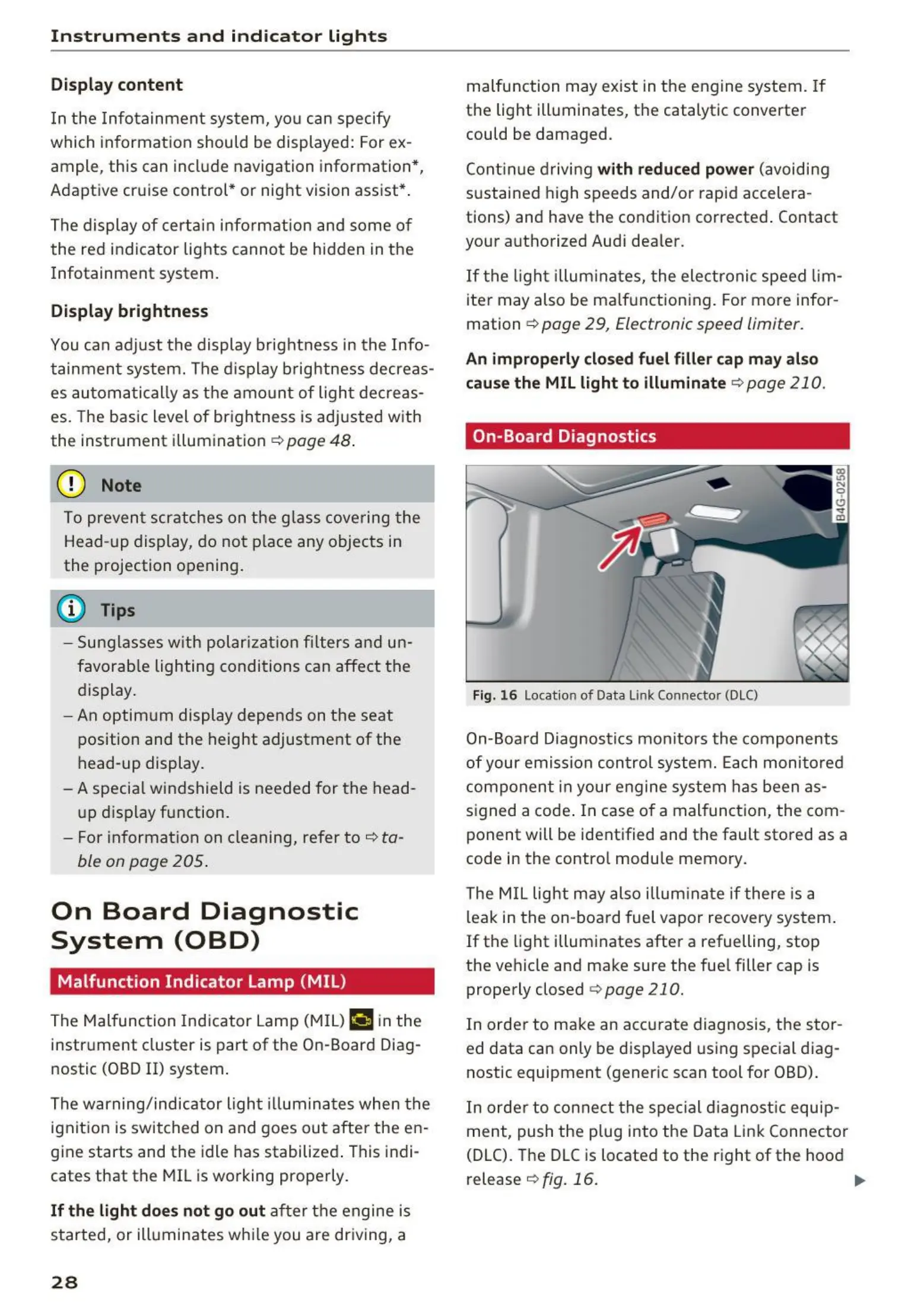

Instruments and indicator lights
Display content
In the Infotainment system, you can specify
which information should be displayed: For ex-
ample, this can include navigation information *,
Adapt ive cruise control* or night vision assist* .
The display of certai n information and some of
the red indicator lights cannot be hidden in the
Infotainment system.
Display brightness
You can adjust the display brightness in the Info-
tainment system. The display brightness decreas-
es automatically as the amount of light decreas-
es. The basic level of brightness is adjusted with
the instrument illumination ¢
page 48.
(D Note
To prevent scratches on the glass covering t he
Head-up display , do not place any objects in
the projection opening.
@ Tips
- Sunglasses w ith polarization f ilt ers and un-
favorable lighting conditions can affect the
display.
- An optim um display depends on the seat
position and the height adjustment of the
head-up display.
- A specia l windshield is needed for the head-
up display function.
- For informat ion on cleaning, refer to
c::;;, ta-
ble on page 205.
On Board Diagnostic
System (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢..ifi in the
instrument cluster is part of the On-Board Diag-
nostic (OBD II) system .
The warning/indicator light illuminates when the
ignit ion is switched on and goes out after the en -
gine starts and the idle has stabilized . This indi-
cates that the MIL is working properly.
If the light does not go out after the engine is
started, or illuminates wh ile you are driving, a
28
malfunction may exist in the engine system. If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained hig h speeds and/or rapid accelera-
tions) and have the condition corrected . Contact
your authorized Audi dea ler.
If t he light illuminates, t he electronic speed lim-
iter may also be ma lfunctioning. For more infor-
mation ¢
page 29, Electronic speed limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
c::;;, page 210.
On-Board Diagnostics
Fig. 16 Locatio n of Data Link Connector (DLC)
On-Boa rd Diagnostics mon itors the components
of your emission control system. Each monitored
component in your engine system has been as-
s igned a code . In case of a malfunct ion, the com-
pon ent will be identified and the fault stored as a
code in the contro l module memory.
The MIL light may also illum inat e if there is a
leak in the on -boa rd fuel vapor recovery system .
If the light illuminates after a refuelling, stop
the vehicle and make sure the fuel filler cap is
properly closed
c::;;, page 210.
In order to make an accu rat e diagnosis, the st or-
ed data can only be displayed using special d iag-
nostic equipment (generic scan tool for OBD).
In order to connect th e special diagnostic equ ip-
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release r:!>
fig. 16. ..,.
