Audi A6 2016 - Driver Side Cockpit Fuse Assignment

Fuses
Driver side cockpit fuse
assignment

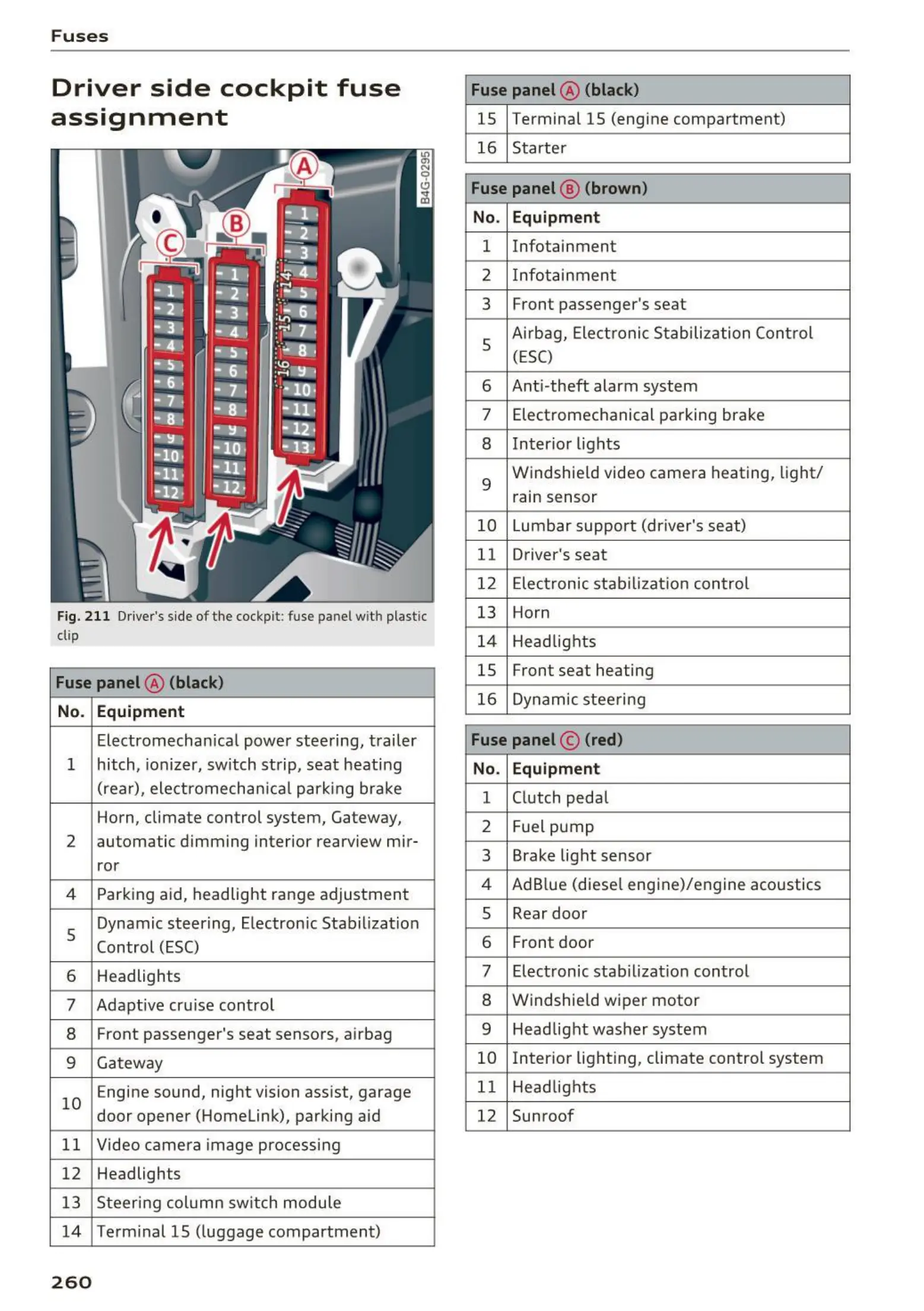

Fig. 21 1 Driver's side of t he cockpit : fuse panel with plastic
clip
Fuse panel @ (black)
No. Equipment
Electromecha nical powe r stee ring, t rai ler
1 hitch, ionizer, switch st rip, seat heat ing
(rear), electromech anical par king brake
Horn, climate control system, Gateway,
2
automatic dimming interior rearview mir-
ror
4 Parking aid, headlight range adjustment
5
Dynamic steering, Electron ic Stabilization
Control (ESC)
6 Headlights
7 Adaptive cruise control
8
Front passenger's seat sensors, airbag
9 Gateway
10
Engine sound, night vision assist, garage
door opener (Homelink), parking aid
11 Video camera image pro cessing
12 Headlights
13 Steeri ng col umn switch module
14 Term inal 15 (luggage compartment)
260
Fuse panel @ (black)
15 Terminal 15 (engine compartment)
16 Starte r
Fuse panel @ (brown)
No. Equipment
1
Infotainment
2 Infotainmen t
3
Front passenger's seat
5
Airbag, Electronic St abiliza t ion Contr ol
(ESC)
6 Ant i-theft alarm system
7 Electromechanical parking brake
8
Inter ior lights
9
Windshie ld video camera heating, li ght/
rain sensor
10 Lumbar support (dr iver's seat)
11
Driver's seat
12 Electr onic stab iliz ati on cont rol
13 Horn
14 Headlights
15
Front seat heating
16 Dynamic stee ring
Fuse panel © (red)
No. Equipment
1 Clutch pedal
2 Fuel pump
3
Brake light sensor
4
AdBlue (diesel eng ine)/engine acoustics
5
Rear door
6
Front door
7 Electronic stab ilizat ion cont rol
8 Windshie ld wiper motor
9 Headlight washer system
10
Inter ior light ing, climate control system
11 Headlights
12 Sunroof
