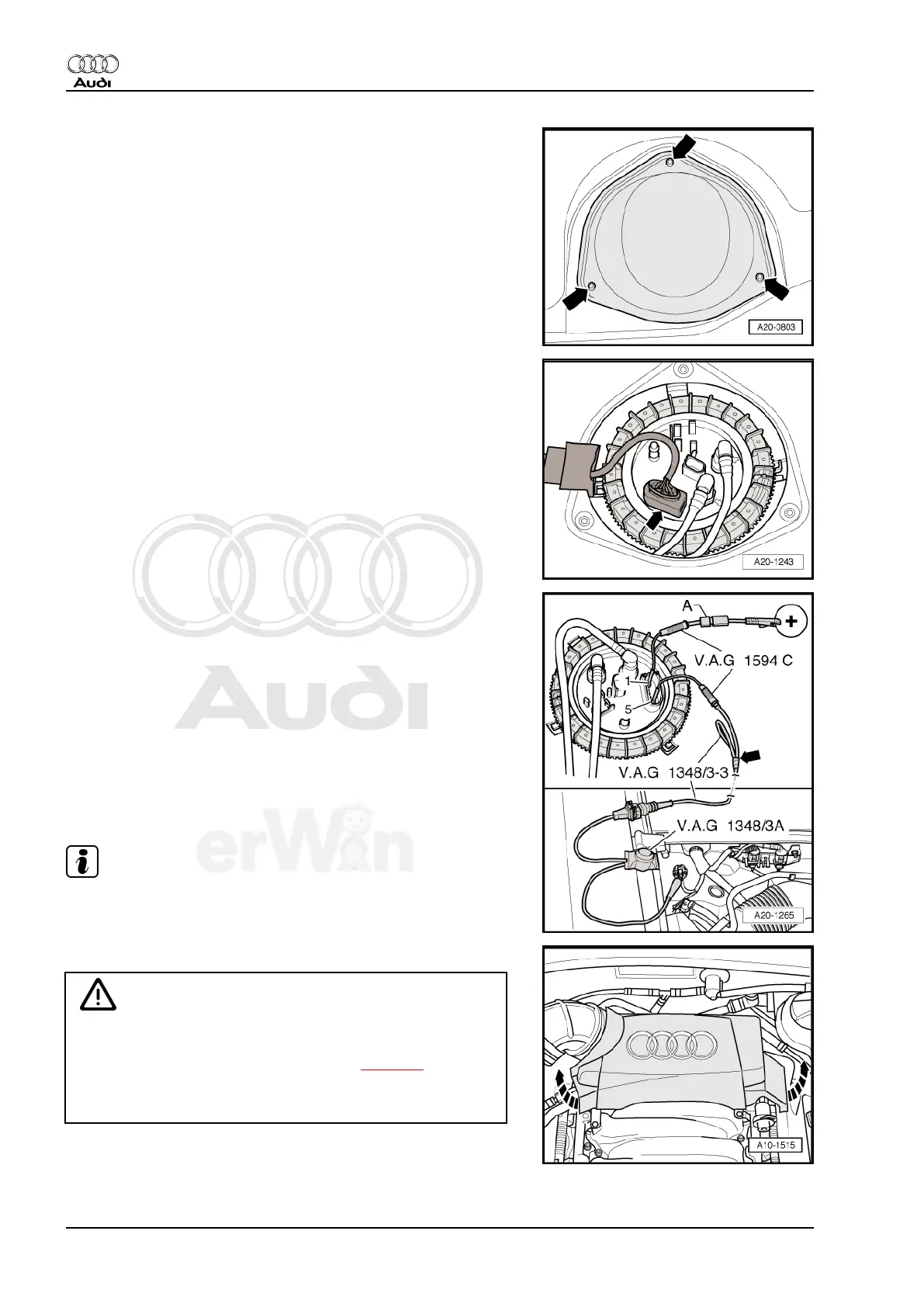

– Remove cover for right locking flange -arrows-.
– Carefully release and disconnect electrical harness connector
-arrow- at locking flange.
Continuation for All
– Connect remote control -V.A.G 1348/3A- with adapter cable -
V.A.G 1348/3-3- with an adapter cable from connector test set
-V.A.G 1594C- at terminal -5-.
– Cover 2nd connector terminal of adapter cable -
V.A.G 1348/3-3- with insulating tape to prevent short circuit
-arrow-.
– Route remote control -V.A.G 1348/3A- switch forward in en‐
gine compartment.
– Connect alligator clip to ground (GND) point in engine com‐
partment.
– Connect contact -1- to battery “+” using a self-made adapter
cable.
Note
For safety reasons, install a fuse -A- in the cable.
– Remove rear engine cover -arrows-.
WARNING
♦ Fuel system is under high pressure! Before opening high
pressure components of the fuel injection system, pressure
must be relieved to residual pressure ⇒ page 2 .
♦ Then wrap a clean cloth around the connection and relieve
residual pressure by carefully loosening the connection.
Audi A6 2005 ➤
Fuel Injection and Ignition - Edition 03.2008
22 Rep. Gr.24 - Fuel injection system
