10 Instruments and warning /i ndicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.

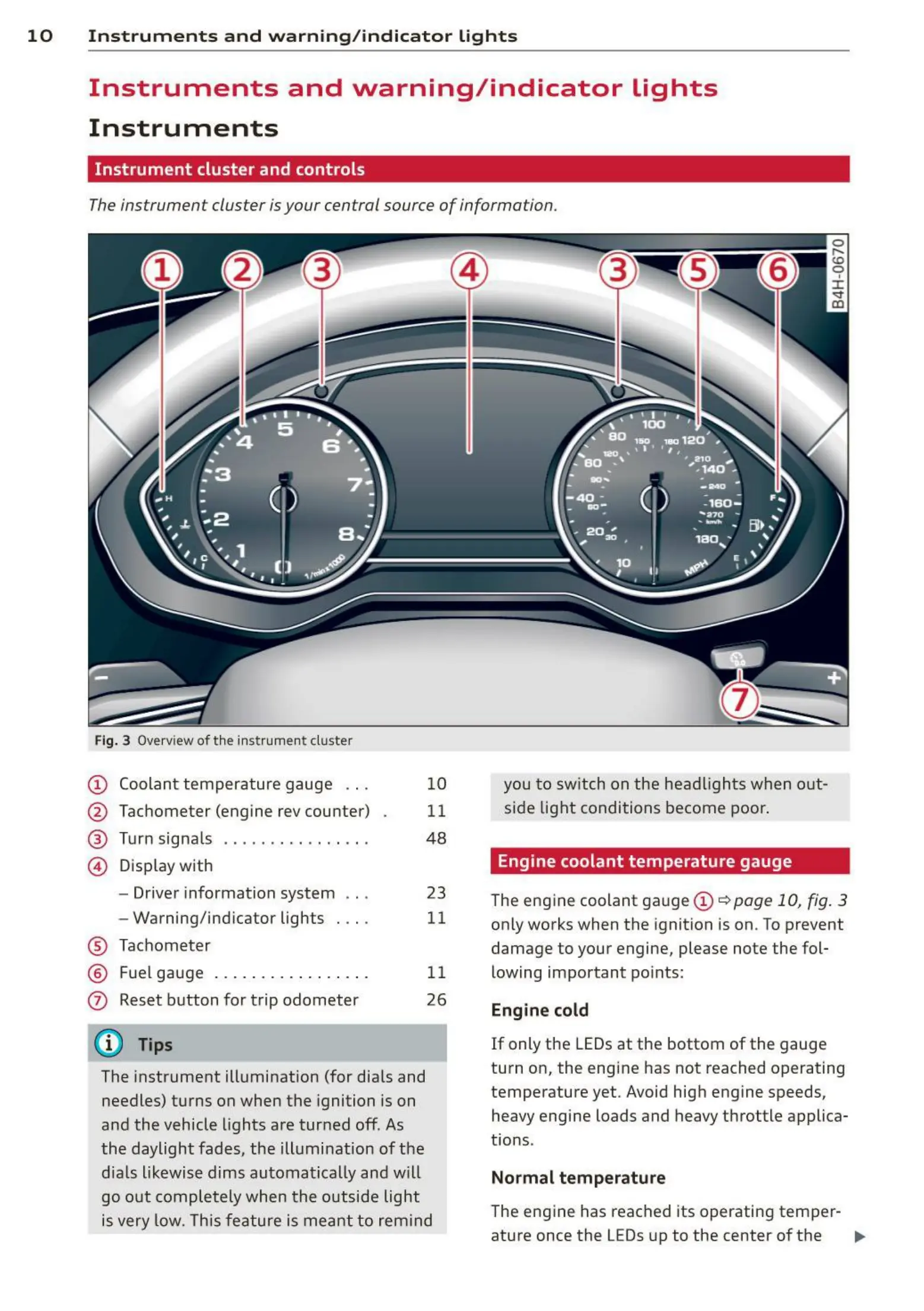

Fig. 3 Overview of t he instr ument cluster
(!) Coolant tempera t ure gauge ...
@ Tachometer (engine rev counter)
® Turn signals ............. . . .
© Display with
- Driver information system .. .
- Warning/ind icator lights
® Tachometer
® Fuel gauge . ... . .... . . . . . . . .
0 Reset button for trip odometer
(D Tips
10
11
48
23
11
1 1
26
The instrument illumination (for dials and
needles) t urns on when the ignition is on
and the vehicle lights are tur ned off. As
the daylight fades, the illumination of t he
dials likewise dims automatica lly and w ill
go out comple t ely when t he outsi de light
is very low. This feature is meant t o remind
you t o switch on the headli ght s when out-
side light condit ions become poor.
Engine coolant temperature gauge
The engine coolant gauge (!) ¢ poge 10, fig. 3
only works when the ignition is on. To prevent
damage to your engine, please note the fol-
lowing important points:
Engine cold
If only the LEDs at the bottom of the gauge
turn on, the engine has not reached operating
temperature yet. Avoid hig h engine speeds,
heavy engine loads and heavy throttle applica-
tions .
Normal temp erature
The engine has reached its operating temper-
at ure once the LEDs up to the center of the .,.
