Parking systems
Switching on or off
Applies to: vehicles with to p view camera system

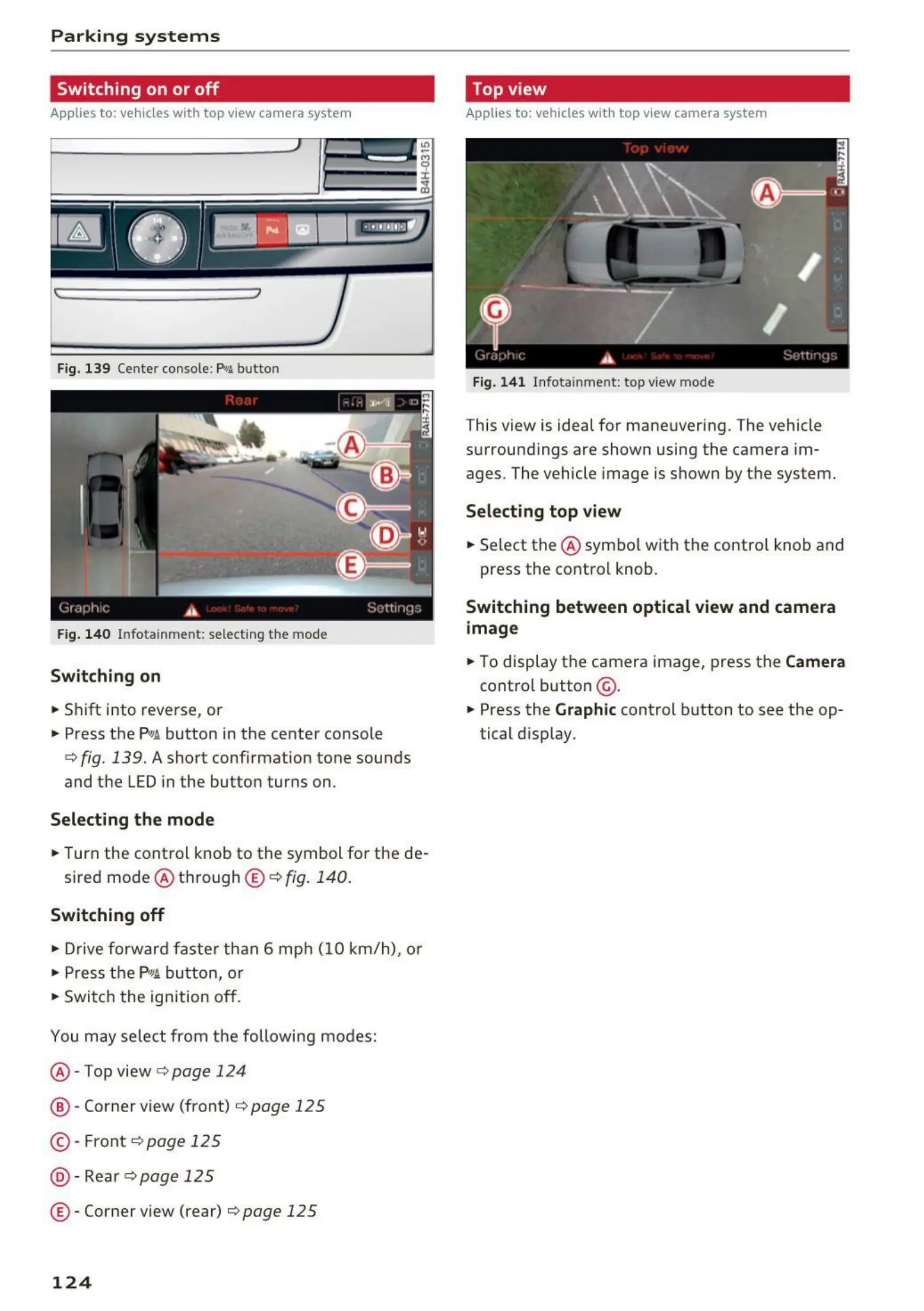

Fig. 139 Center console: Pw.!. button
Fig. 140 Infotainment: se lecting the mo de
Switching on
.. Shift into reverse , or
.. Press the P"'A button in the center console
c> fig. 139. A short confirmation tone sounds
and the LED in the button turns on.
Selecting the mode
.. Turn the cont rol knob to the symbol for the de-
sired mode @ through ® ¢ fig . 140.
Switching off
.. Drive forward faste r than 6 mph (10 km/h), or
.. Press the P,#A button, or
.. Switch the ignition off.
You may sele ct from the following modes:
@ - Top view
c> page 124
@ - Corner view (front) c> page 125
© - Front <:!)page 125
@ - Rear¢ page 125
® - Corner view (rear) ¢ page 125
124
Top view
Applies to : vehicles wit h top view camera system
Fig. 141 Infot ainment: top view mode
This view is ideal for maneuvering. The vehicle
surroundings are shown using the camera im-
ages. The vehicle image is shown by the system.
Selecting top view
.. Select the @ symbo l with the contro l knob and
press the control knob .
Switching between optical view and camera
.. To display the camera image, press the Camera
control button @ .
.. Press the
Graphic control button to see the op-
tical disp lay .
