Fuses and bulbs
Fuse panel @ (black) Fuse panel @ (black)
7
Front passenger door contro l module
10
ESC contro l modu le
8 Front passenger powe r window 11 Righ t rear power window
9 ESC control module 12
Front passenger 's seat (pneumatic)

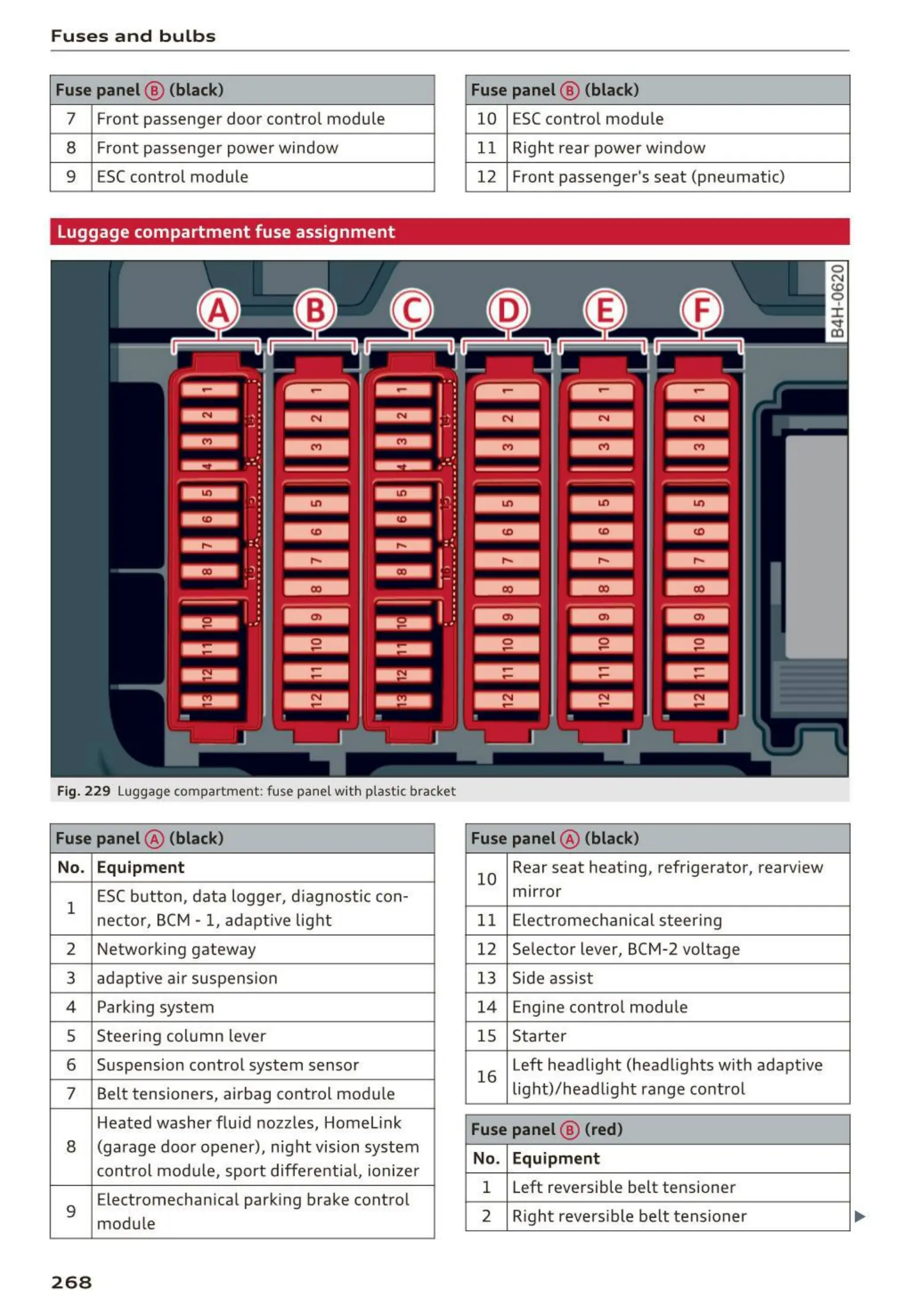

Luggage compartment fuse assignment
Fig. 22 9 l uggage compartment: fuse panel wit h plastic bracket
Fuse panel @ (black) Fuse panel @ (black)
No.
Equipment
1
ESC but t on, dat a logge r, diagnos tic con-
necto r, BCM - 1, ad apt ive light
10
Rear seat heating, refrigerator, rearview
mirror
1 1 Elect rome chanical st eer ing
2
Networking gateway
12
Se lector lever, BCM-2 voltage
3 ad a ptive a ir suspension 13 Side assis t
4 Park ing system 14 Engine contro l module
5
Steeri ng col umn lever
15
St arter
6
Suspension contro l system sensor
7
Belt t ensioners, airbag cont rol mod ule
16
Left headlight (headl ights w it h adapt ive
light)/headlight range control
Heated washer flu id nozzles, Home li nk
8 (garage doo r opener), night vision system
cont rol module, sport differe nt ia l, ionizer
9
Electromechan ica l park ing brake contro l
mod ule
Fuse panel ® (red)
No. Equipment
1
Left reve rsible belt tensioner
2 Right revers ible belt tens ioner
