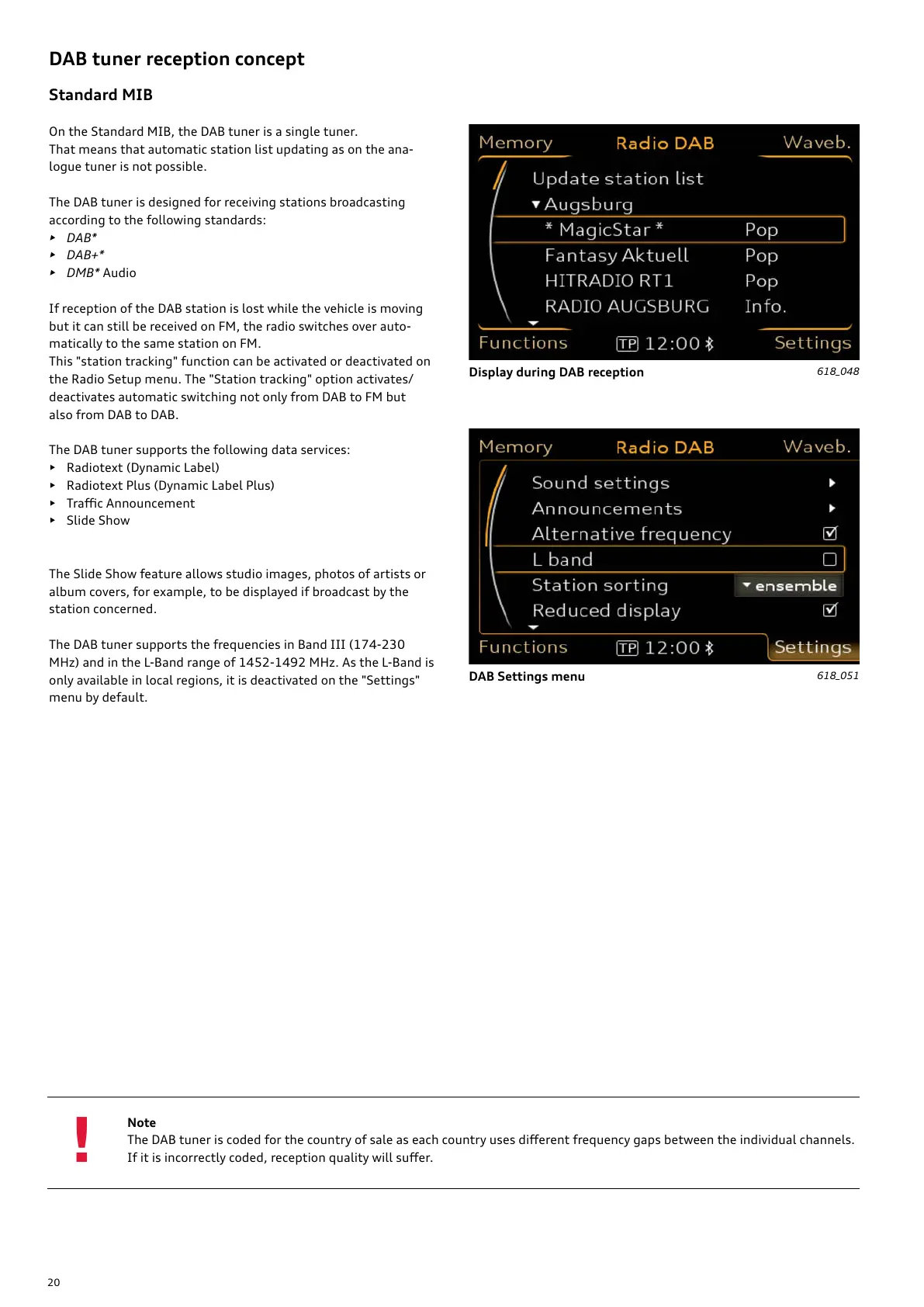

DAB tuner reception concept
Standard MIB
On the Standard MIB, the DAB tuner is a single tuner.
That means that automatic station list updating as on the ana-
logue tuner is not possible.
The DAB tuner is designed for receiving stations broadcasting
according to the following standards:
• DAB*
• DAB+*
• DMB* Audio
If reception of the DAB station is lost while the vehicle is moving
but it can still be received on FM, the radio switches over auto-
matically to the same station on FM.
This "station tracking" function can be activated or deactivated on
the Radio Setup menu. The "Station tracking" option activates/
deactivates automatic switching not only from DAB to FM but
also from DAB to DAB.
The DAB tuner supports the following data services:
• Radiotext (Dynamic Label)
• Radiotext Plus (Dynamic Label Plus)
• Trac Announcement
• Slide Show
The Slide Show feature allows studio images, photos of artists or
album covers, for example, to be displayed if broadcast by the
station concerned.
The DAB tuner supports the frequencies in Band III (174-230
MHz) and in the L-Band range of 1452-1492 MHz. As the L-Band is
only available in local regions, it is deactivated on the "Settings"
menu by default.
Note
The DAB tuner is coded for the country of sale as each country uses dierent frequency gaps between the individual channels.
If it is incorrectly coded, reception quality will suer.
Display during DAB reception
DAB Settings menu
