In terms of functionality and specifications, the Standard MIB is comparable with the RMC Radio Media Center. There are radio and naviga-
tion system versions of the Standard MIB.
The electronic information systems control unit 1 J794 for the Standard MIB always has a MOST bus connection. If no additional equip-
ment that requires a MOST bus is fitted, the MOST bus connection is unused.

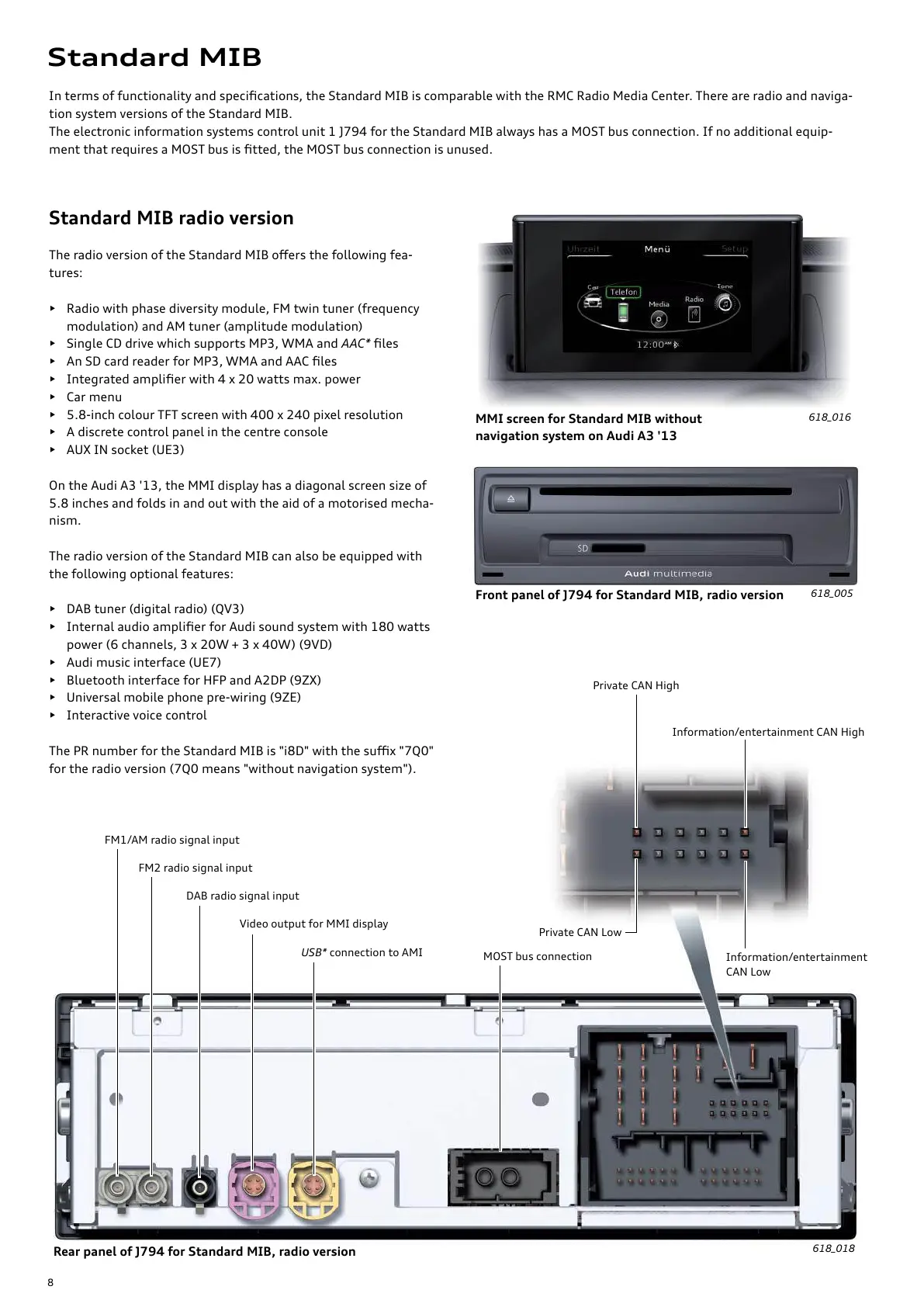

Standard MIB
FM2 radio signal input
FM1/AM radio signal input
Private CAN High
Information/entertainment CAN High
Private CAN Low
Information/entertainment
CAN Low
Rear panel of J794 for Standard MIB, radio version
Standard MIB radio version
The radio version of the Standard MIB oers the following fea-
tures:
• Radio with phase diversity module, FM twin tuner (frequency
modulation) and AM tuner (amplitude modulation)
• Single CD drive which supports MP3, WMA and AAC* files
• An SD card reader for MP3, WMA and AAC files
• Integrated amplifier with 4 x 20 watts max. power
• Car menu
• 5.8-inch colour TFT screen with 400 x 240 pixel resolution
• A discrete control panel in the centre console
• AUX IN socket (UE3)
On the Audi A3 '13, the MMI display has a diagonal screen size of
5.8 inches and folds in and out with the aid of a motorised mecha-
nism.
The radio version of the Standard MIB can also be equipped with
the following optional features:
• DAB tuner (digital radio) (QV3)
• Internal audio amplifier for Audi sound system with 180 watts
power (6 channels, 3 x 20W + 3 x 40W) (9VD)
• Audi music interface (UE7)
• Bluetooth interface for HFP and A2DP (9ZX)
• Universal mobile phone pre-wiring (9ZE)
• Interactive voice control
The PR number for the Standard MIB is "i8D" with the sux "7Q0"
for the radio version (7Q0 means "without navigation system").
MMI screen for Standard MIB without
navigation system on Audi A3 '13
Front panel of J794 for Standard MIB, radio version
DAB radio signal input
Video output for MMI display
USB* connection to AMI
MOST bus connection
