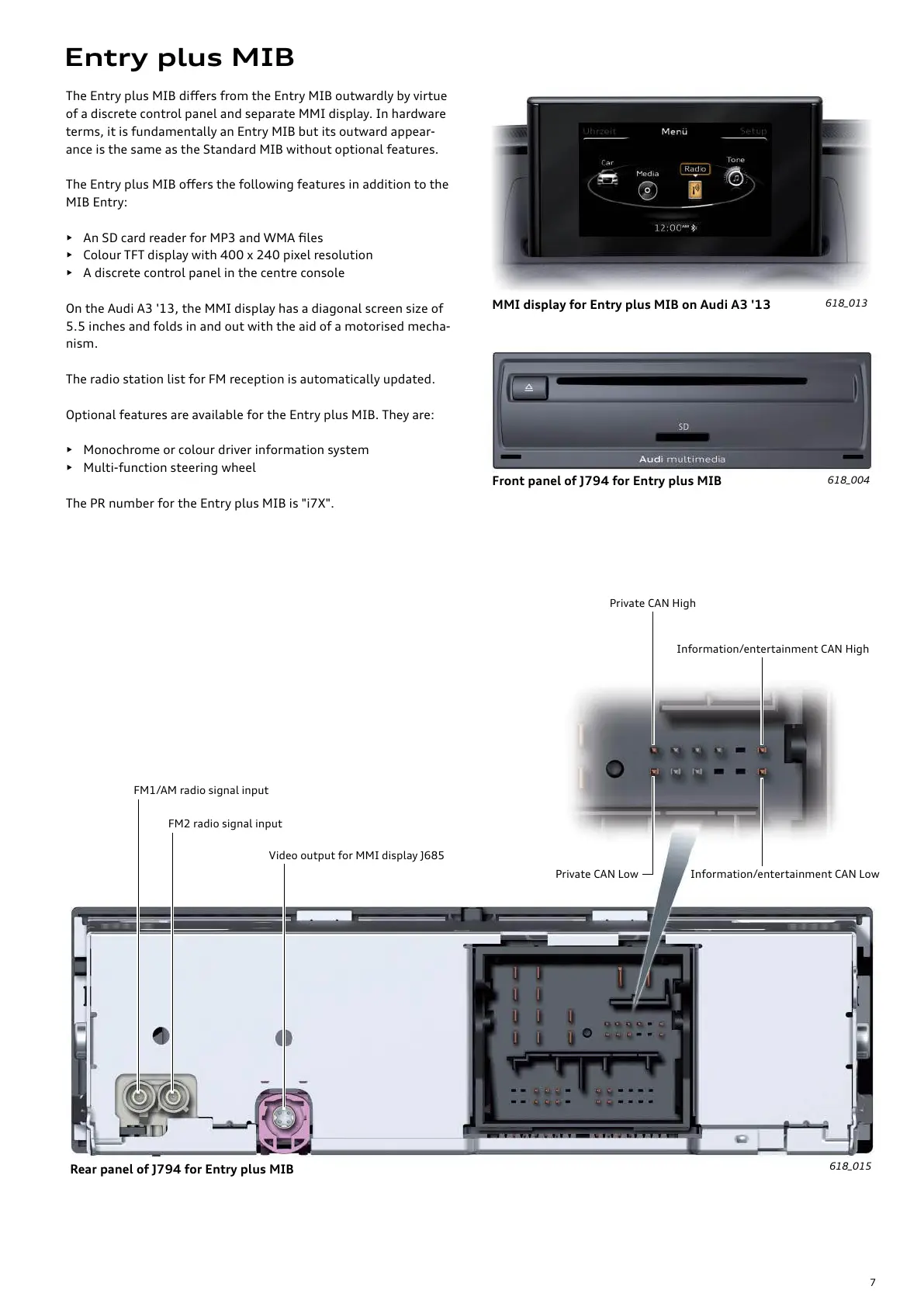

Audi Entry MIB - Entry Plus MIB System Features

7
618_013
618_004
618_015
The Entry plus MIB diers from the Entry MIB outwardly by virtue
of a discrete control panel and separate MMI display. In hardware
terms, it is fundamentally an Entry MIB but its outward appear-
ance is the same as the Standard MIB without optional features.
The Entry plus MIB oers the following features in addition to the
MIB Entry:
• An SD card reader for MP3 and WMA files
• Colour TFT display with 400 x 240 pixel resolution
• A discrete control panel in the centre console
On the Audi A3 '13, the MMI display has a diagonal screen size of
5.5 inches and folds in and out with the aid of a motorised mecha-
nism.
The radio station list for FM reception is automatically updated.
Optional features are available for the Entry plus MIB. They are:
• Monochrome or colour driver information system
• Multi-function steering wheel
The PR number for the Entry plus MIB is "i7X".
Entry plus MIB
FM2 radio signal input
FM1/AM radio signal input
MMI display for Entry plus MIB on Audi A3 '13
Front panel of J794 for Entry plus MIB
Private CAN High
Information/entertainment CAN High
Private CAN Low Information/entertainment CAN Low
Rear panel of J794 for Entry plus MIB
Video output for MMI display J685
