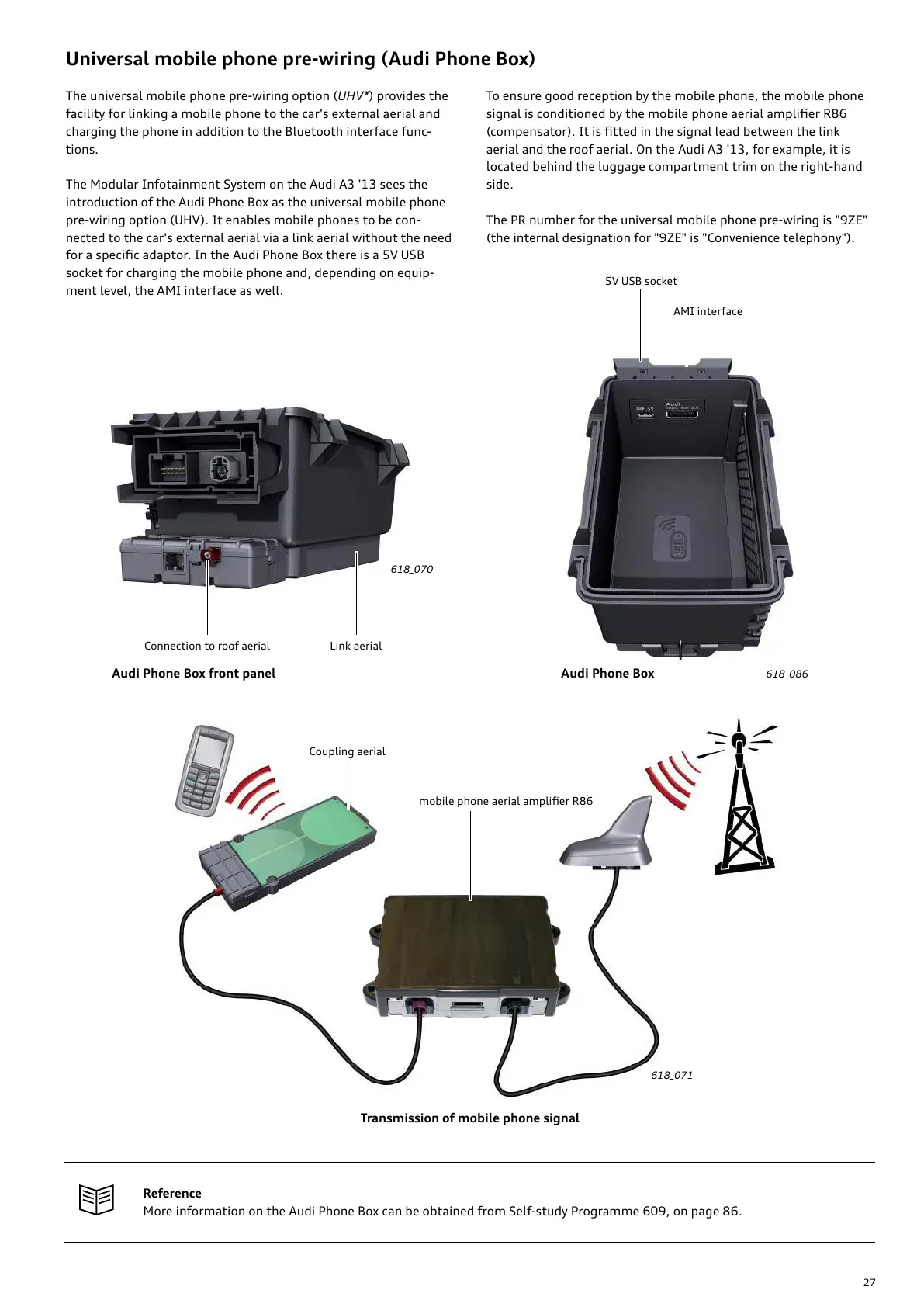

Universal mobile phone pre-wiring (Audi Phone Box)
The universal mobile phone pre-wiring option (UHV*) provides the
facility for linking a mobile phone to the car's external aerial and
charging the phone in addition to the Bluetooth interface func-
tions.
The Modular Infotainment System on the Audi A3 '13 sees the
introduction of the Audi Phone Box as the universal mobile phone
pre-wiring option (UHV). It enables mobile phones to be con-
nected to the car's external aerial via a link aerial without the need
for a specific adaptor. In the Audi Phone Box there is a 5V USB
socket for charging the mobile phone and, depending on equip-
ment level, the AMI interface as well.
To ensure good reception by the mobile phone, the mobile phone
signal is conditioned by the mobile phone aerial amplifier R86
(compensator). It is fitted in the signal lead between the link
aerial and the roof aerial. On the Audi A3 '13, for example, it is
located behind the luggage compartment trim on the right-hand
side.
The PR number for the universal mobile phone pre-wiring is "9ZE"
(the internal designation for "9ZE" is "Convenience telephony").
Audi Phone BoxAudi Phone Box front panel
5V USB socket
Connection to roof aerial
AMI interface
Link aerial
Transmission of mobile phone signal
Coupling aerial
mobile phone aerial amplifier R86
