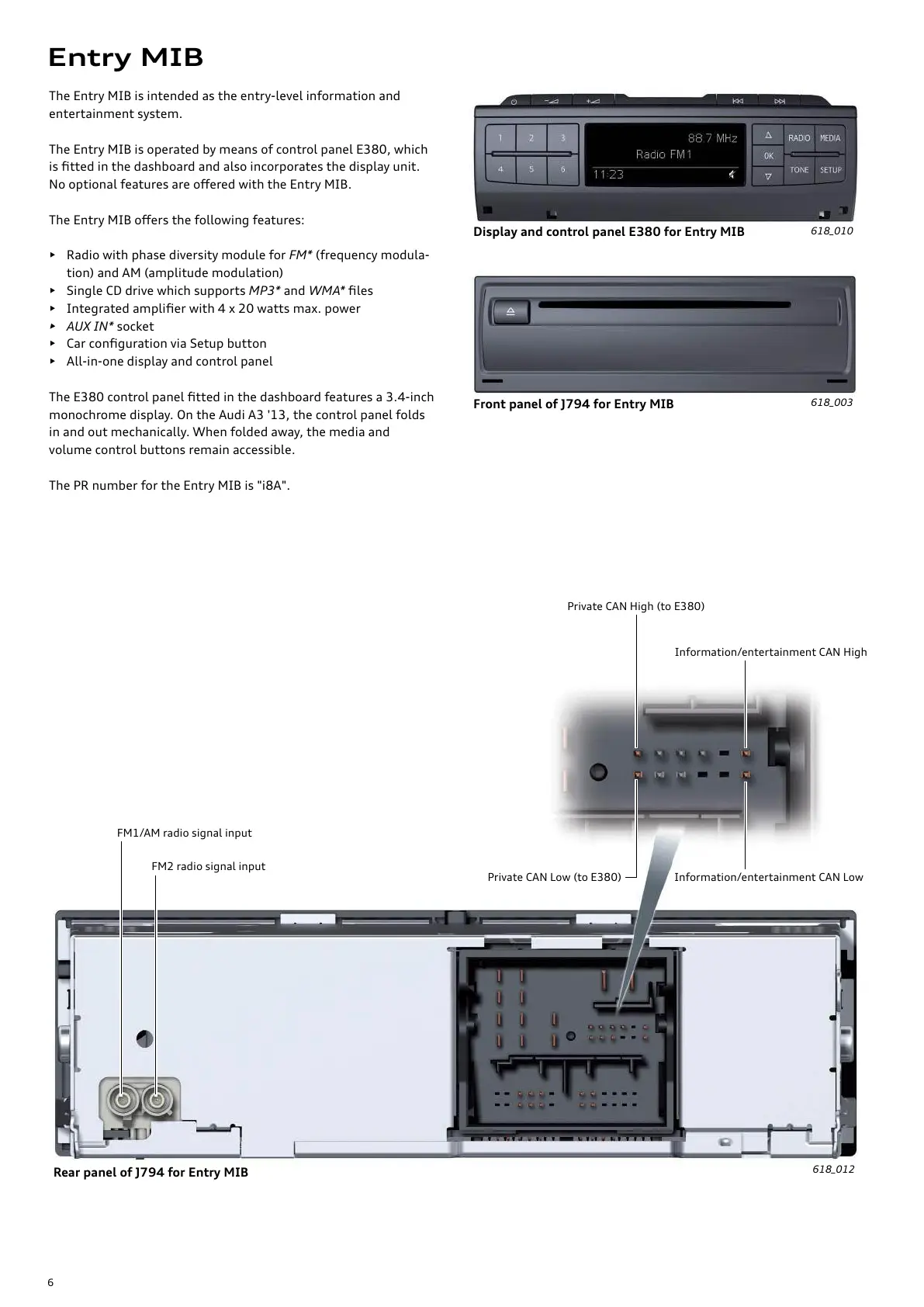

The Entry MIB is intended as the entry-level information and
entertainment system.
The Entry MIB is operated by means of control panel E380, which
is fitted in the dashboard and also incorporates the display unit.
No optional features are oered with the Entry MIB.
The Entry MIB oers the following features:
• Radio with phase diversity module for FM* (frequency modula-
tion) and AM (amplitude modulation)
• Single CD drive which supports MP3* and WMA* files
• Integrated amplifier with 4 x 20 watts max. power
• AUX IN* socket
• Car configuration via Setup button
• All-in-one display and control panel
The E380 control panel fitted in the dashboard features a 3.4-inch
monochrome display. On the Audi A3 '13, the control panel folds
in and out mechanically. When folded away, the media and
volume control buttons remain accessible.
The PR number for the Entry MIB is "i8A".
Entry MIB
FM2 radio signal input
FM1/AM radio signal input
Display and control panel E380 for Entry MIB
Front panel of J794 for Entry MIB
Private CAN High (to E380)
Information/entertainment CAN High
Private CAN Low (to E380) Information/entertainment CAN Low
Rear panel of J794 for Entry MIB
