Fuses and bulbs 269
Controls Safety Driving tips General maintenance Self-help Technical data
The description for changing the bulb refers to the left fog
light; in principle the same procedure applies to the right
fog light.
– Switch off the ignition and the lights.
– Detach the trim cover ⇒ page 268, fig. 248 (pull it care-
fully in the direction of the arrow).
– Remove the two securing screws ⇒ page 268, fig. 249
and pull the fog light unit out of the bumper.
– Unplug the electrical connector.
Caution
The trim cover is secured to the bumper by several retaining hooks.
Do not use force when removing the trim cover to avoid damaging
it.
Changing bulb
– Turn the bulb holder anti-clockwise ⇒ page 266 and take
it out of the fog light housing.
– Insert the new bulb holder and turn it clockwise as far as
the stop ⇒ page 266.
After changing the bulb re-install all parts in the reverse sequence
and check that the bulb is working.
Changing bulbs for rear lights in side
panel
Overview of rear lights
• Brake lights
• Turn signals
The following instructions for changing the bulb refer to the left side
of the vehicle. Follow the same procedure for changing the bulb on
the other side of the vehicle.

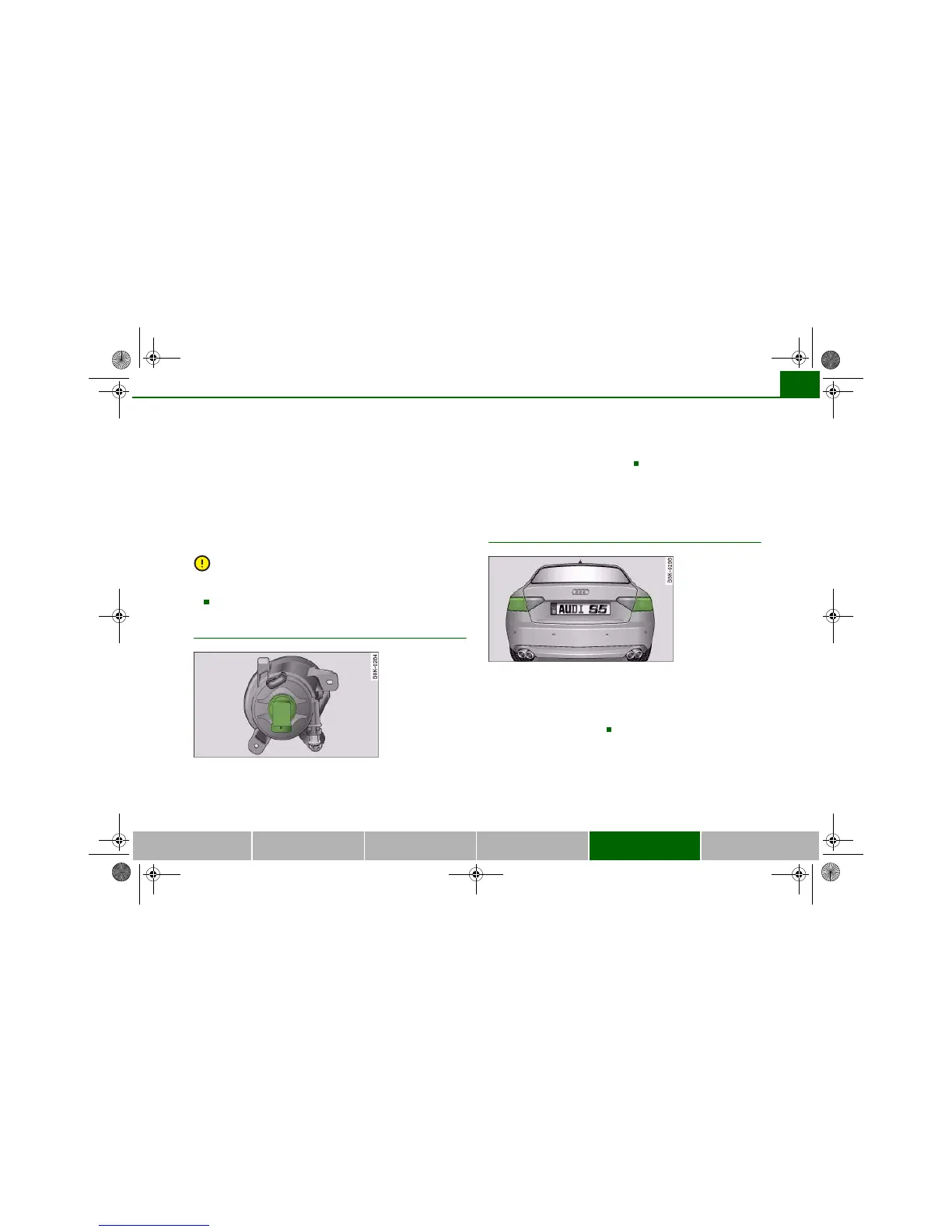

Fig. 250 Front fog
light: Bulb holder is
highlighted
Fig. 251 Rear lights in
side panel
