Changing bulbs in boot lid
Rear lights in boot lid
• Rear fog light
• Reversing light
Before you begin working, please make yourself familiar with the
different bulb versions ⇒ page 265.
Removing bulb carrier
The description for changing the bulb refers to the left rear
light unit; in principle the same procedure applies to the
right rear light unit.
– Check which of the bulbs is defective.
– Open the boot lid.
– Take the screwdriver out of the vehicle tool kit.
– Using the flat-blade side of the reversible screwdriver
insert, carefully detach the cover cap ⇒ fig. 257 -arrows-.
– Using the screwdriver, unscrew the nut ⇒ fig. 258 in
the anti-clockwise direction and remove the nut and the
retaining clip .
– Release the retaining tab and remove the bulb holder
from the light unit.
– Change the bulb ⇒ page 273.

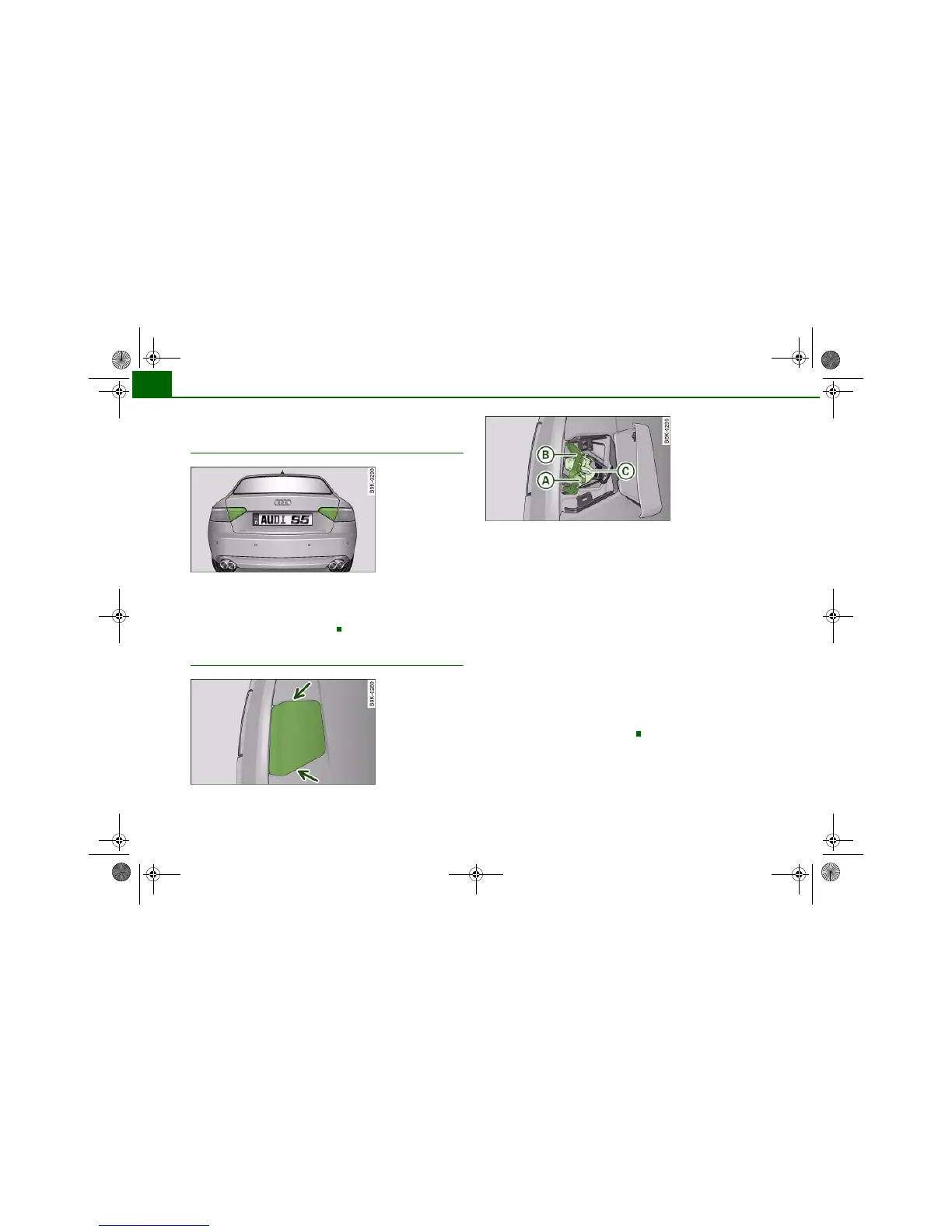

Fig. 256 Rear lights in
boot lid
Fig. 257 Boot lid:
Opening the cover in
the boot lid
Fig. 258 Boot lid:
Removing bulb carrier
