Functions & Controls

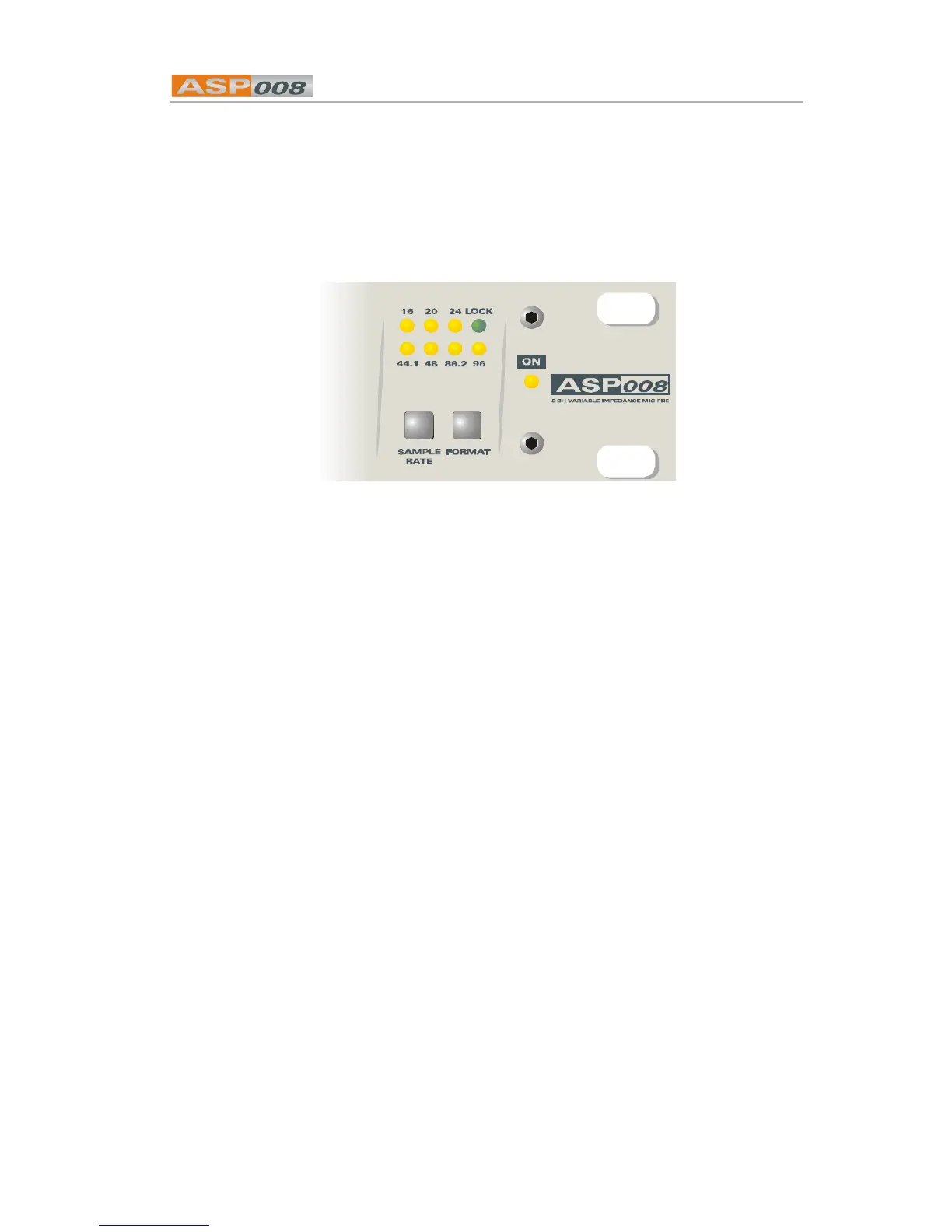

Sample rate
Sample rates of 44.1/44/
88.2 and 96kHz are
supported. The desired
rate can be selected by
repeatedly pressing the
Sample Rate select switch
to step through the
available settings as
indicated by the 4 yellow
LEDs and the green LOCK
led. The chosen selection
is retained in memory and
restored after power
down.
The sample rate select
switch is not operable if
external word clock is in
use.
Format
ASP008 ADAT outputs
can be set to 16/20 or 24
bit formats by repeatedly
pressing the Format select
switch. The selected bit
format is displayed on 3
yellow LEDs and is
retained in memory and
restored after power
down. The AES outputs
are always 24 bit.
Lock
This green LED illuminates
when the ASP008 external
clock input has been
selected and the
converters have
successfully sync’d to the
external clock source. It
will flash if
synchronisation has not
been achieved.
Functions and Controls (cont)

Audient ASP 008 Specifications

Audio Specifications

Maximum input level	+21.5 dBu
Maximum output level	+27.5 dBu
Total harmonic distortion	0.007% at 1kHz
Equivalent input noise	-127.5 dB @ 60dB gain/ref 150 ohms
Frequency response	-0.3 dB @10Hz to -3 dB @300kHz at unity gain
Common mode rejection ratio	75 dB at 1kHz and 60dB gain

Power

power consumption	40 watts

Weight and Dimensions

dimensions	480 mm x 278 mm x 44 mm
weight	4.5 kg
