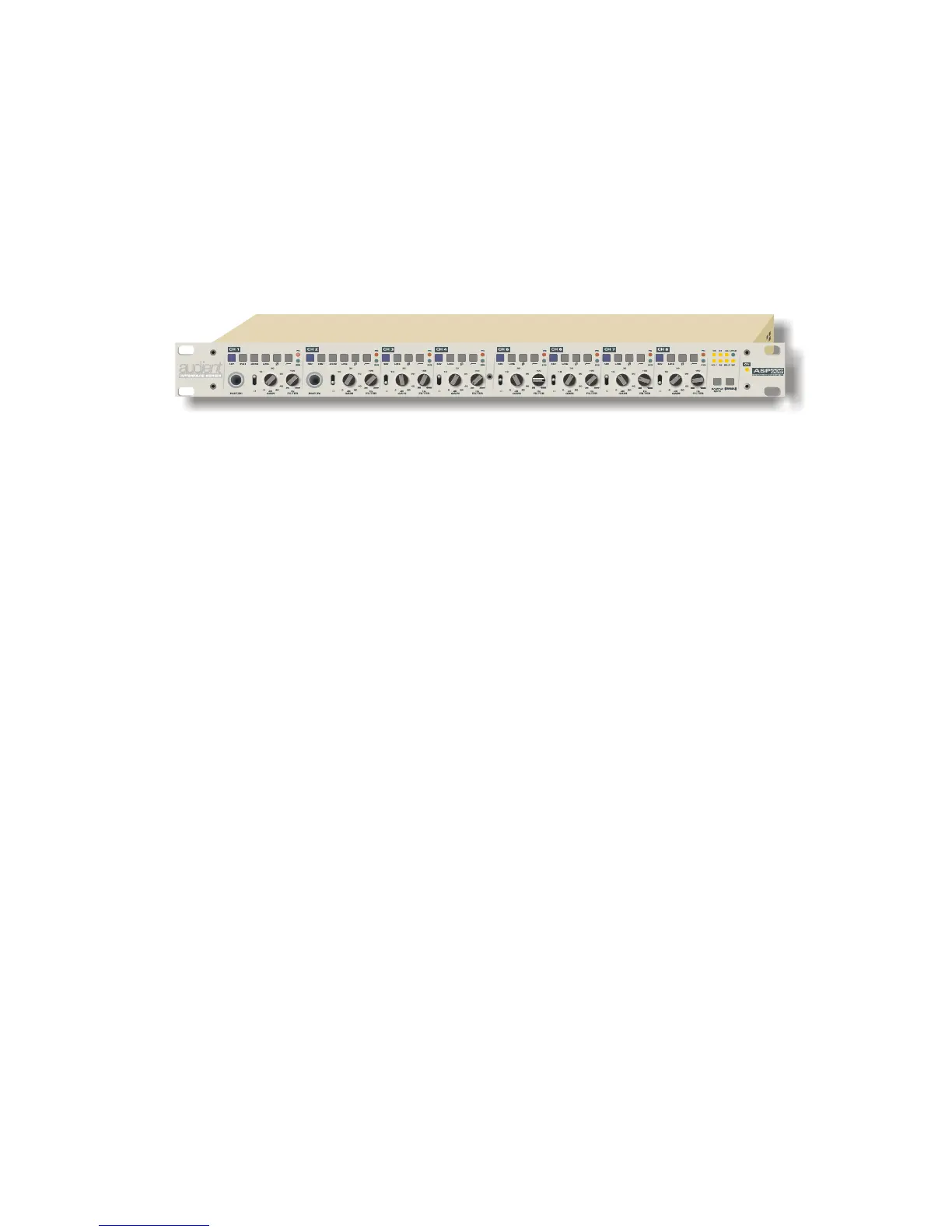

Audient ASP 008 User Manual

I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
I/P Z
0.2
5
1.2
k
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................5
UNPACKING ..................................................................................................6
MAINS POWER SUPPLY.................................................................................6
VOLTAGES ..................................................................................................... 6
FUSES ...........................................................................................................6
MECHANICAL INSTALLATION ........................................................................6
ANALOGUE INTERFACES ............................................................................ 6/7
PIN CONVENTIONS .......................................................................................6
DIGITAL INTERFACES ................................................................................. 8/9
FUNCTIONS AND CONTROLS ........................................................................9
SAMPLE RATE ............................................................................................. 10
FORMAT ..................................................................................................... 10
LOCK ........................................................................................................... 10
VARIABLE IMPEDANCE: WHAT IS IT AND WHAT DOES IT DO? .................... 11
SPECIFICATIONS ......................................................................................... 12
WARRANTY ................................................................................................. 12

Audient ASP 008 Specifications

Audio Specifications

Maximum input level	+21.5 dBu
Maximum output level	+27.5 dBu
Total harmonic distortion	0.007% at 1kHz
Equivalent input noise	-127.5 dB @ 60dB gain/ref 150 ohms
Frequency response	-0.3 dB @10Hz to -3 dB @300kHz at unity gain
Common mode rejection ratio	75 dB at 1kHz and 60dB gain

Power

power consumption	40 watts

Weight and Dimensions

dimensions	480 mm x 278 mm x 44 mm
weight	4.5 kg
