7
©audient 05/2008
Operation Manual
Installation

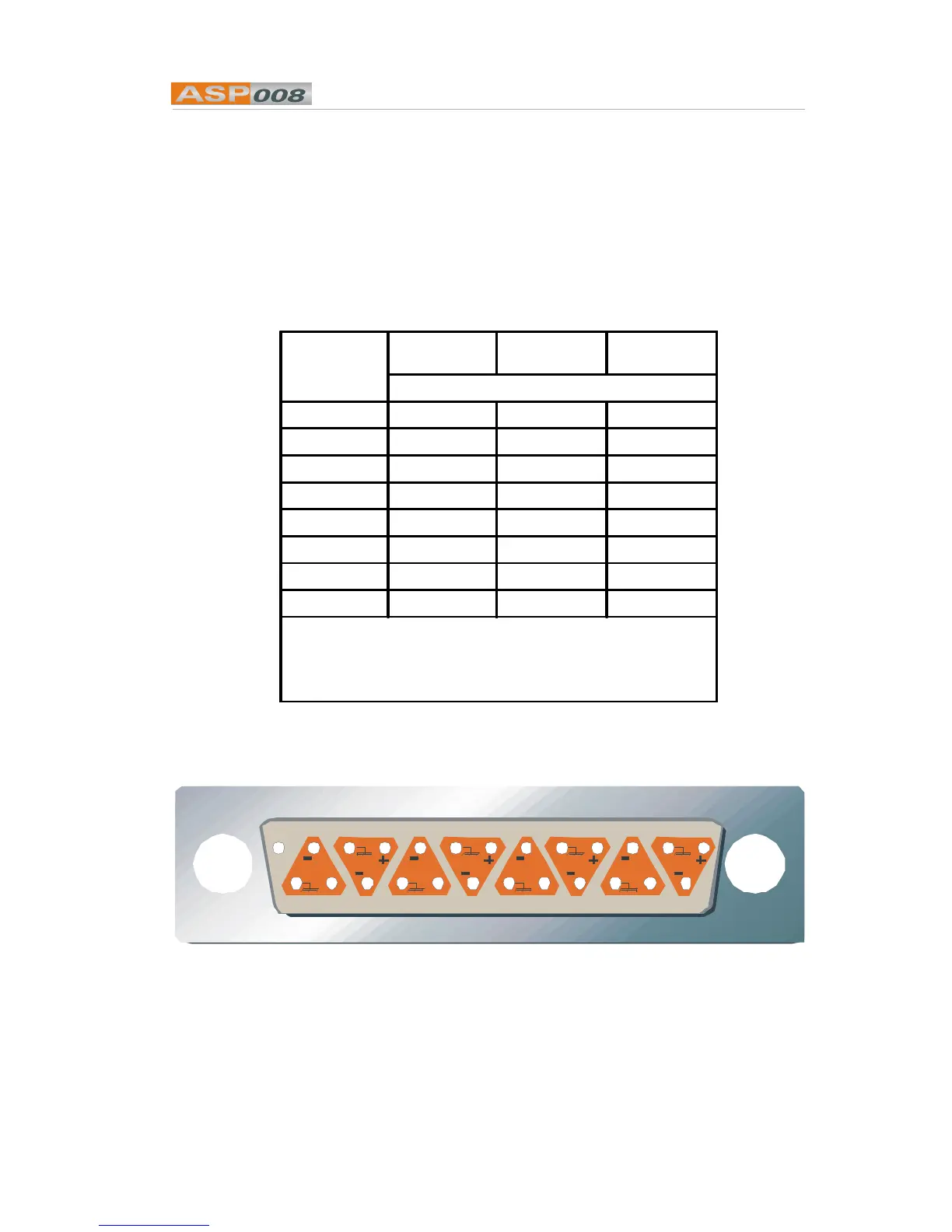

CHANNEL
NUMBER
+VE
SIGNAL
-VE
SIGNAL
SCREEN
D-SUB PIN
1 24 12 25
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
Note: All undesignated pins are
unconnected. All screen connections are
joined inside the unit and connected to
metalwork earth.
Important : When preparing your D-SUB
interface cables please note that the
maximum shell size that can be
accommodated is 18 x 60mm.
In order to maintain optimum EMC performance it is important that screens are properly
connected at both ends of cable runs. In this way the electromagnetic shield provided
by the equipment chassis and the cable screens will be optimised to reject interference.
It is recommended that only high quality braided screen cables are used to avoid
compromising EMC performance.
Analogue Interfaces (cont)
