5554
174mm
276mm
51mm
69mm
191mm
MICROPHONE PREAMPLIFIER:
(measurement includes ADC signal path)
MIC GAIN: 0 to 60dB
LINE GAIN: -10 to 50dB
PHANTOM POWER: 48V ±4V @ 10mA channel (12VDC only)
MIC EIN: <-126.0 dBu
CMRR: >80 dB @ 1kHz
MAXIMUM INPUT LEVEL: +18 dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic): 3k Ω balanced
INPUT IMPEDANCE (Line): 10k Ω balanced
FREQUENCY RESPONSE: ±0.5 dB 10Hz to 65kHz
CROSSTALK: <-90 dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.003% (-96dBu)
SNR: 96 dB
XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
HEADPHONE OUTPUT / (DAC 3 & 4:)
(Measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL: +14 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +14 dBu = 0 dBFS
OUTPUT IMPEDANCE: <50 Ω unbalanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2
CROSSTALK: <-110 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103 dB)
DYNAMIC RANGE: 124 dB un-weighted, 111 dB A-weighted
MAXIMUM LEVEL into 30 Ω: +7.5 dBu 0.003% THD+N Power: 225mW
MAXIMUM LEVEL into 60 Ω: +10.2 dBu 0.002% THD+N Power:
210mW
MAXIMUM LEVEL into 600 Ω: +14.2 dBu 0.001% THD+N Power: 54mW
1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)
D.I / INSTRUMENT INPUT:
(Channel 1)
D.I GAIN: 0 to 60dB
MAXIMUM INPUT LEVEL: +10 dBu
INPUT IMPEDANCE: 1MegΩ unbalanced
FREQUENCY RESPONSE: ±0.5 dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95 dB A-weighted
1/4” TS JACK: Tip (Hot) & Sleeve (Shield)
ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2):
(Measuredvia Insert Returns under AES-17)
MAXIMUM INPUT LEVEL: +18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +18 dBu = 0 dBFS
INUT IMPEDANCE >10k Ω Balanced
FREQUENCY RESPONSE: ±0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: -115 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB dB)
DYNAMIC RANGE: 121 dB un-weighted
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
DIGITAL TO ANALOGUE CONVERTER (DAC 1 & 2):
(Measured under AES-17 at line outputs 1 & 2)
MAXIMUM OUTPUT LEVEL: +18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +18 dBu = 0 dBFS
OUTPUT IMPEDANCE: <100 Ω
FREQUENCY RESPONSE: ±0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <-118 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 124 dB un-weighted, 127 dB A-weighted
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
DIGITAL INPUT:
16-CHANNEL ADAT: 44.1kHz to 48.0kHz
8-CHANNEL ADAT: 88.2kHz to 96.0kHz SMUX
STEREO S/PDIF / TOSLINK: 44.1kHz to 96.0kHz (Stereo)
USB2.0 HIGH SPEED:
No. of INPUT CHANNELS: 20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS: 24 (8 Analogue, 16 Digital)
CONNECTOR: USB Type-C
INCLUDED CABLES: 1.5m USB 2.0 Type-C to USB Type-C
1.5m USB 2.0 Type-C to USB Type-C
DSP MIXER LATENCY: ROUND TRIP (in-to-out)
44.1kHz 0.677ms
48.0kHz 0.625ms
88.2kHz 0.354ms
96.0kHz 0.323ms

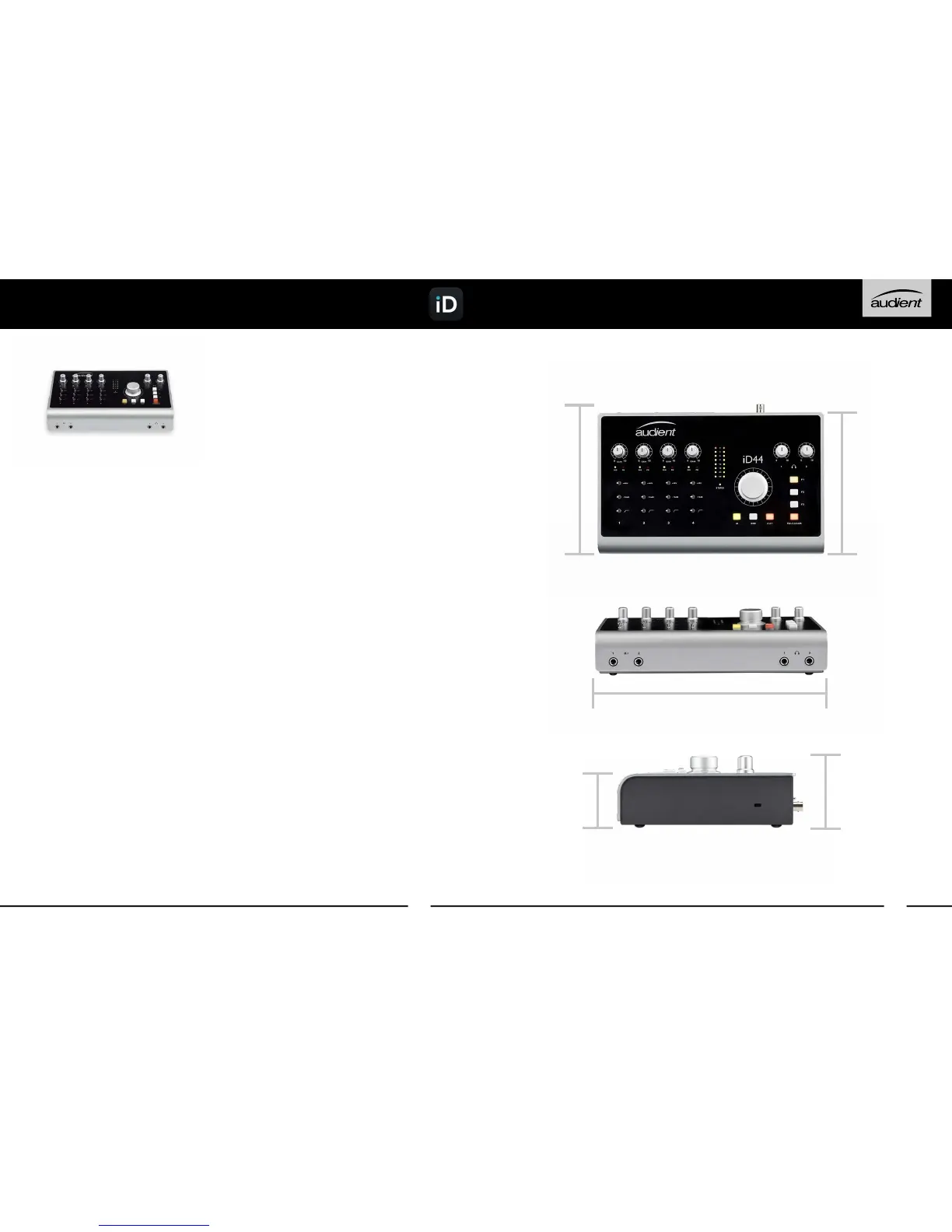

Technical Specifications
Dimensions
