Audio Technica AT-LP120XUSB User Manual

8

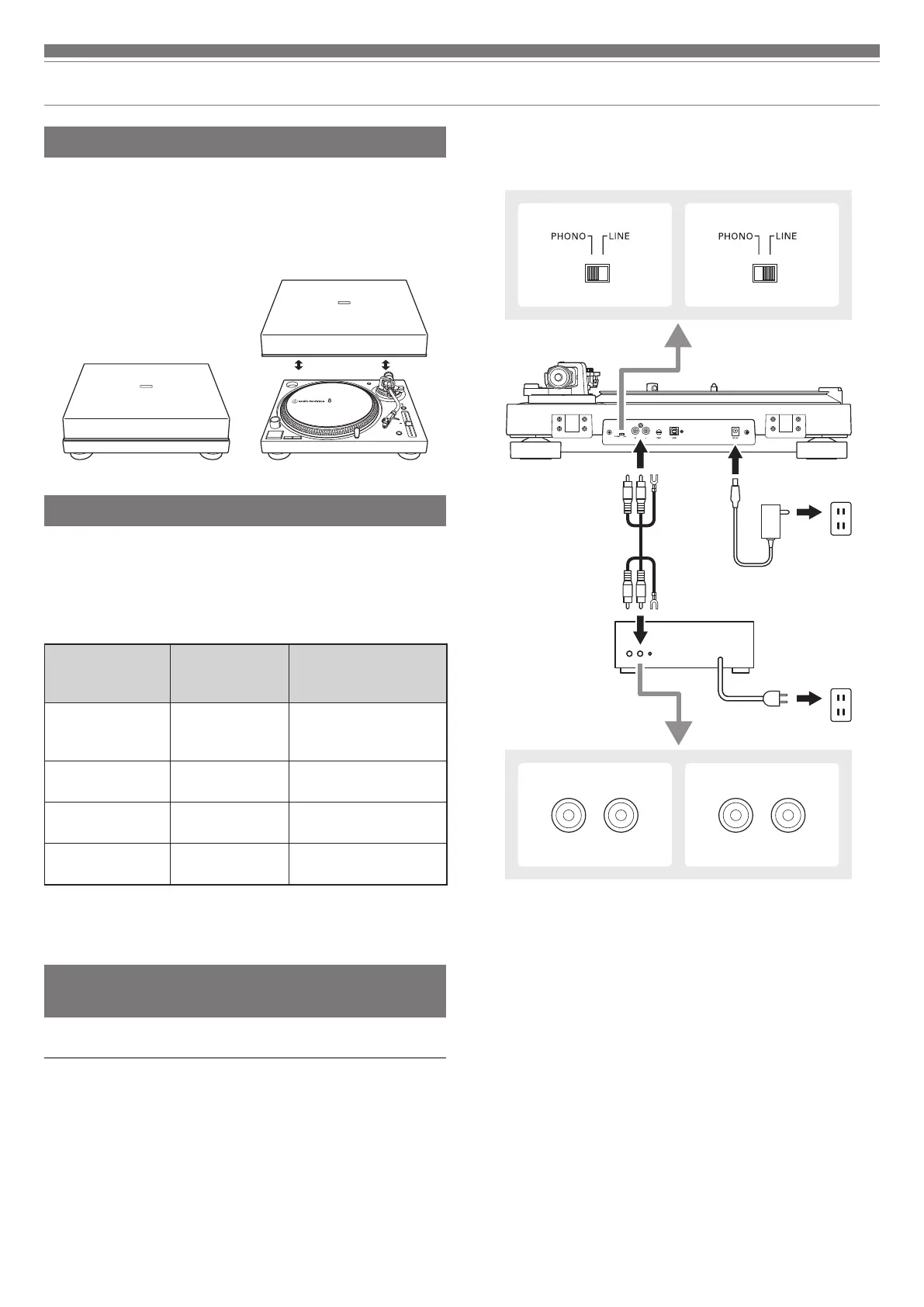

Preparation for use
Installing/removing the dust cover
• The dust cover is designed to protect the product's sensitive
components when the product is not in use. It should remain off
while records are playing.
• Using the dust cover during play may result in record damage or
sound degradation.
• Always remove and replace the dust cover carefully.
Setting pre-amplifier selector switch
This product has a built-in phono equalizer function. You can use the
product, even if you do not have a phono amplifier or connectable
equipment with a built-in phono amplifier, by connecting an active
speaker, etc.
Use the pre-amplifier selector switch to set the output, as shown
below.
Connectable
equipment being
used
Position of
pre-amplifier
selector switch
Where to connect the
RCA audio cable
Device with phono
input
PHONO Phono input jack and
ground (earth) terminal of
connectable equipment
Device without
phono input
LINE AUX or line input jack of
connectable equipment
PC sound card LINE Sound card's line input
jack*
1
Device with USB
input
LINE USB input of your
computer*
2
*1 An audio adapter (sold separately) may be required to connect the
RCA audio cable to the PC sound card's line input jack.
*2 Use included USB cable instead of RCA audio cable to connect.
Connecting to connectable equipment (active
speakers, amplifiers, etc.)
Connecting to audio source
Align the settings for the pre-amplifier selector switch and connect
the RCA audio cable to an input jack that is compatible with the
connectable equipment you are using (amplifier, receiver, active
speakers, sound card, etc.).
• The RCA audio cable's red jack is for the right (R) channel, and the
white jack is for the left (L) channel.
* Depending on the equipment you are connecting, a ground (earth)
terminal may exist near the phono input jack. If this is the case,
connect to it using the ground line from the RCA audio cable. This
will help prevent a low humming noise that might otherwise be heard
during playback.
AUX
L R
PHONO
L R
With PHONO input*
With PHONO input*
Without PHONO input
Without PHONO input
To outlet
To outlet
Connectable
equipment
(amplifier, etc.)

Audio Technica AT-LP120XUSB Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Motor type	DC servo motor
Output level	240 mV
Tone control	Yes
Product color	Silver
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45, 78 RPM
Volume control	Rotary
Starting torque	1 kg/cm
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	50 dB
Shape	S-shaped tonearm
USB ports quantity	1
Cables included	RCA, USB
Power supply type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
AC adapter output voltage	12 V
Power consumption (typical)	2.75 W

Weight and Dimensions

Depth	352 mm
Width	452 mm
Height	141.6 mm
Weight	8000 g
