Audio Technica AT2040USB User Manual

11
5

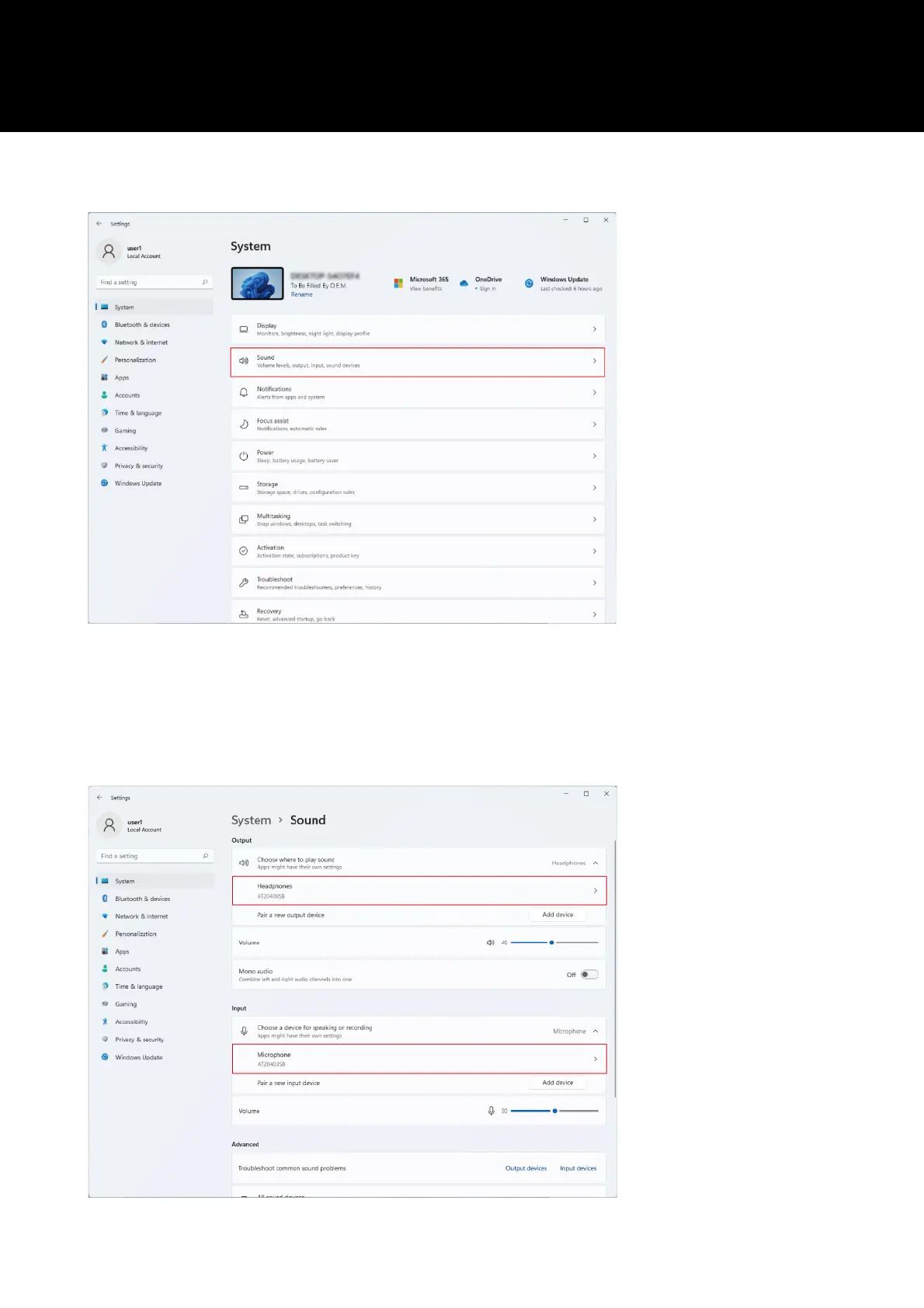

Select "Sound".
6
Under "Output" and "Input", confirm that the product is selected.
• If a device other than the product is being used as the output device, select this other device from "Choose
where to play sound".
• If you are using commercially available recording software to record audio, refer to "Microphone privacy
settings" (p. 12) to configure the settings.

Audio Technica AT2040USB Specifications

General

Type	PC microphone
Bit rate	24 bit
Sample rate	96 kHz
Microphone mute	Yes
Microphone frequency	80 - 16000 Hz
Microphone Total Harmonic Distortion (THD)	1 %
Device interface	3.5 mm (1/8\
USB connector type	USB Type-C
Connectivity technology	Wired
Cables included	USB Type-C to USB Type-A
Number of products included	1 pc(s)
Cable length	2 m
Product color	Black
Windows operating systems supported	Windows 10, Windows 11
Power source	USB
Input voltage	5 V
Output impedance	32 Ω

Weight and Dimensions

Height	145.3 mm
Diameter	52 mm
Microphone weight	600 g
