Audio Technica ATR2500x-USB User Manual

11

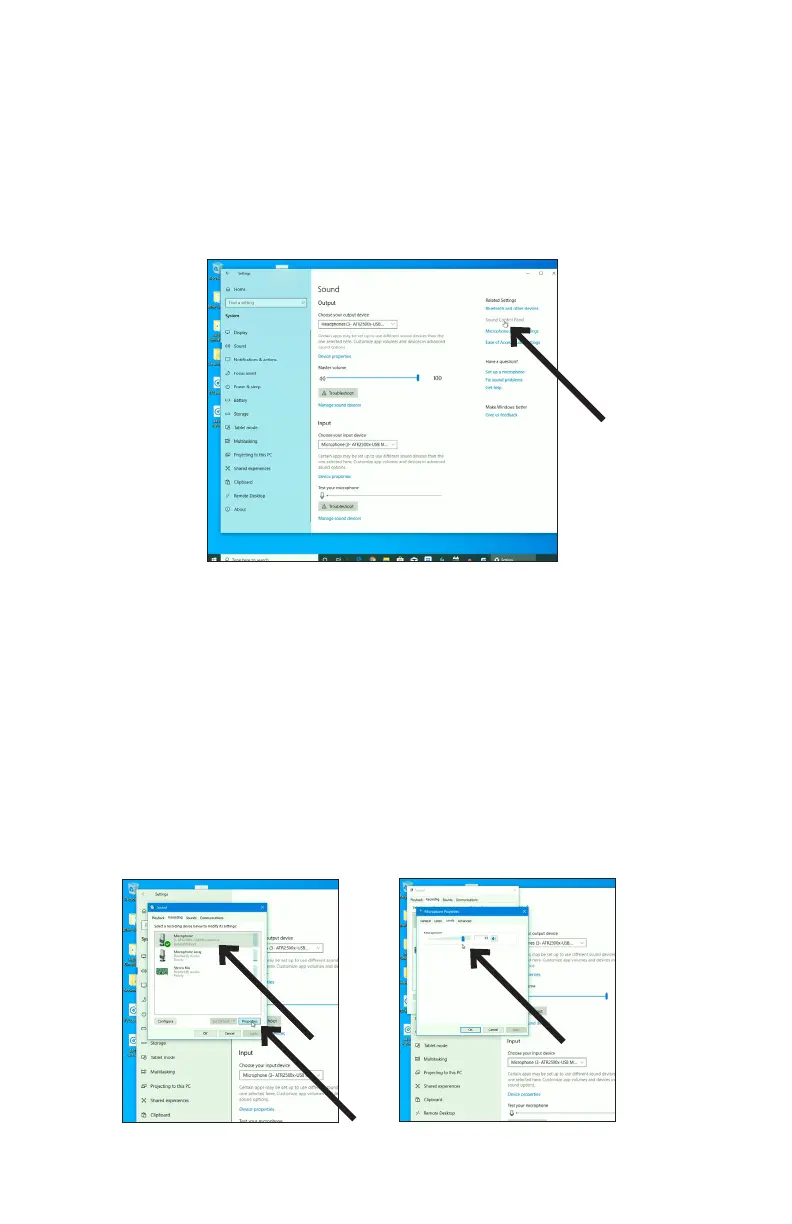

At this point Windows 10 is set up to use the ATR2500x-USB microphone as the input and output device. The sample
rate is set for the Windows default (44.1 KHz CD Quality). However, additional settings are available, including input
level and sampling rate.
1. To access these settings, click “Sound Control Panel.”
2. When the Sound Control Panel opens, select the “Recording” tab and select the ATR2500x-USB microphone.
3. Click “Properties.”
4. Click the Levels tab and move the slider to the right or left to set the input gain for the microphone. Setting it
too low will not provide enough signal to your recording application. Setting it too high can cause the recording
application to distort.
Note that this level setting is different from the volume control slider on the main sound settings window.
Advanced setup with Windows 10

Audio Technica ATR2500x-USB Specifications

General

Type	PC microphone
Bit rate	24 bit
Sample rate	192 kHz
Volume control	Buttons
Microphone frequency	30 - 15000 Hz
Desktop stand	Yes
Cables included	USB Type-C to USB Type-A, USB Type-C to USB Type-C
Number of products included	1 pc(s)
Power source	USB
Product color	Black
Compatible operating systems	Windows, Mac
Connectivity technology	Wired
Package depth	170 mm
Package height	250 mm
Package weight	605 g

Weight and Dimensions

Height	155 mm
Diameter	50 mm
Microphone weight	366 g
