Audio Technica ATR2500x-USB User Manual

7
Advanced Sound Settings
1. At this point the Mac is set up to use the ATR2500x-USB microphone as the input device and your selection as
the output device. The sample rate is set for the default value (44.1 KHz CD Quality). However, additional settings
are available that enable you to change the audio sampling rate and individually adjust left and right input signal
levels if you desire.

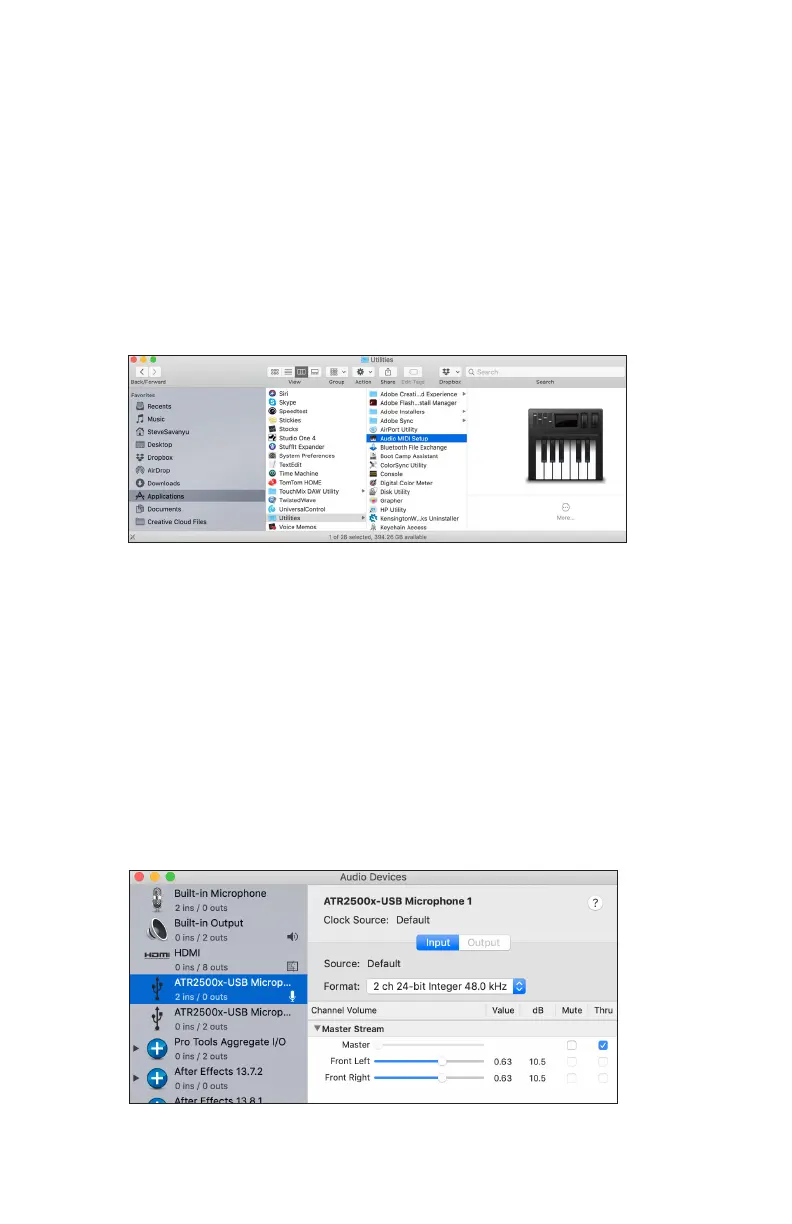

To access these settings, open a new finder window and navigate to “Applications—Utilities” and double-click the
Audio MIDI Setup application.
Advanced setup with MacOS Mojave
Audio MIDI Setup
2. A list of audio devices appears on the left side and the adjustable settings for the selected device appear on the right.
The ATR2500x-USB appears as two separate devices. One is an input device (2 ins / 0 outs) while the other
represents its output (0 ins / 2 outs).
Clicking the input device (2 ins / 0 outs) shows the current settings.
The Format section contains the sample rate settings.
The Master Stream section allows you to individually adjust the microphone signal levels for the
left and right audio inputs.
Select input version ATR2500x-USB with 2 ins / 0 outs

Audio Technica ATR2500x-USB Specifications

General

Type	PC microphone
Bit rate	24 bit
Sample rate	192 kHz
Volume control	Buttons
Microphone frequency	30 - 15000 Hz
Desktop stand	Yes
Cables included	USB Type-C to USB Type-A, USB Type-C to USB Type-C
Number of products included	1 pc(s)
Power source	USB
Product color	Black
Compatible operating systems	Windows, Mac
Connectivity technology	Wired
Package depth	170 mm
Package height	250 mm
Package weight	605 g

Weight and Dimensions

Height	155 mm
Diameter	50 mm
Microphone weight	366 g
