Mounting
A detachable belt clip is included for convenience. Slide the tapered end of the belt
clip into the grooved area located on the back of the unit until it clicks into place.
The receiver can be mounted to a video camcorder by means of the supplied
mounting bracket. Insert the “head” end of the bracket into the grooved area on
the back of the receiver and then insert the “foot” end to the mounting shoe of the
video camcorder.
You can also attach the receiver to the camcorder by using the included Velcro
®
tape. Remove the belt clip from the back of the receiver. Without separating the two
halves of the Velcro, remove the protective paper from the “hook” half of the Velcro
and press the exposed adhesive side against the back of the receiver. (Do not place
it over the Frequency Code on the nameplate, or the battery compartment cover.)
Then, without removing the protective paper from the other side, hold the receiver-
plus-Velcro against the camcorder to find a position with a sufficiently flat area that
does not interfere with the camcorder viewfinder, controls or hinge points.
Once you are satisfied with the position, remove the remaining protective paper
and press the “pile” half of the Velcro into place on the camcorder.
The double-sided adhesive foam provided is only for permanent mounting of
the receiver.

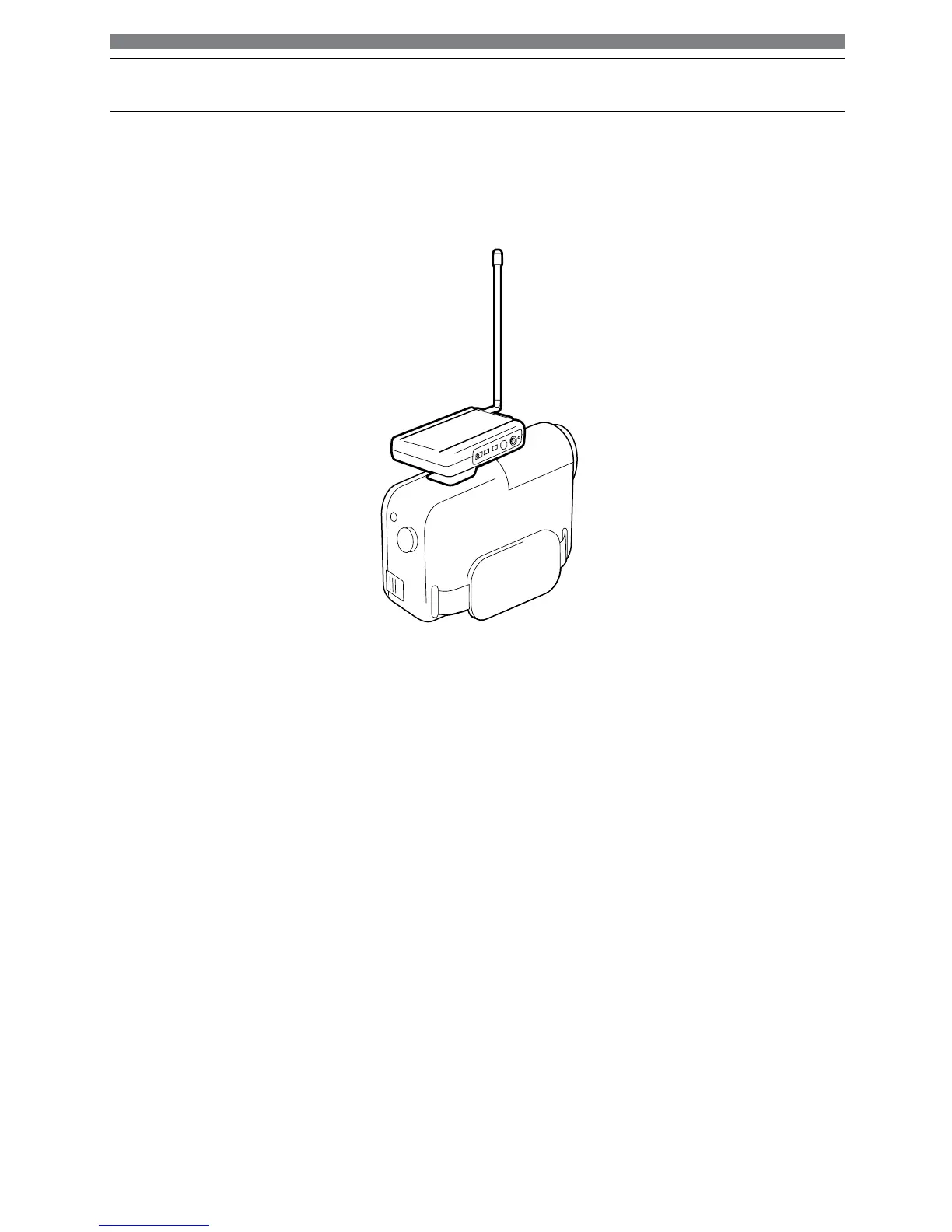

PRO 88W receiver mounted to video camcorder accessory shoe or supplied Velcro tape
Mounting on a Camera
Belt Clip
