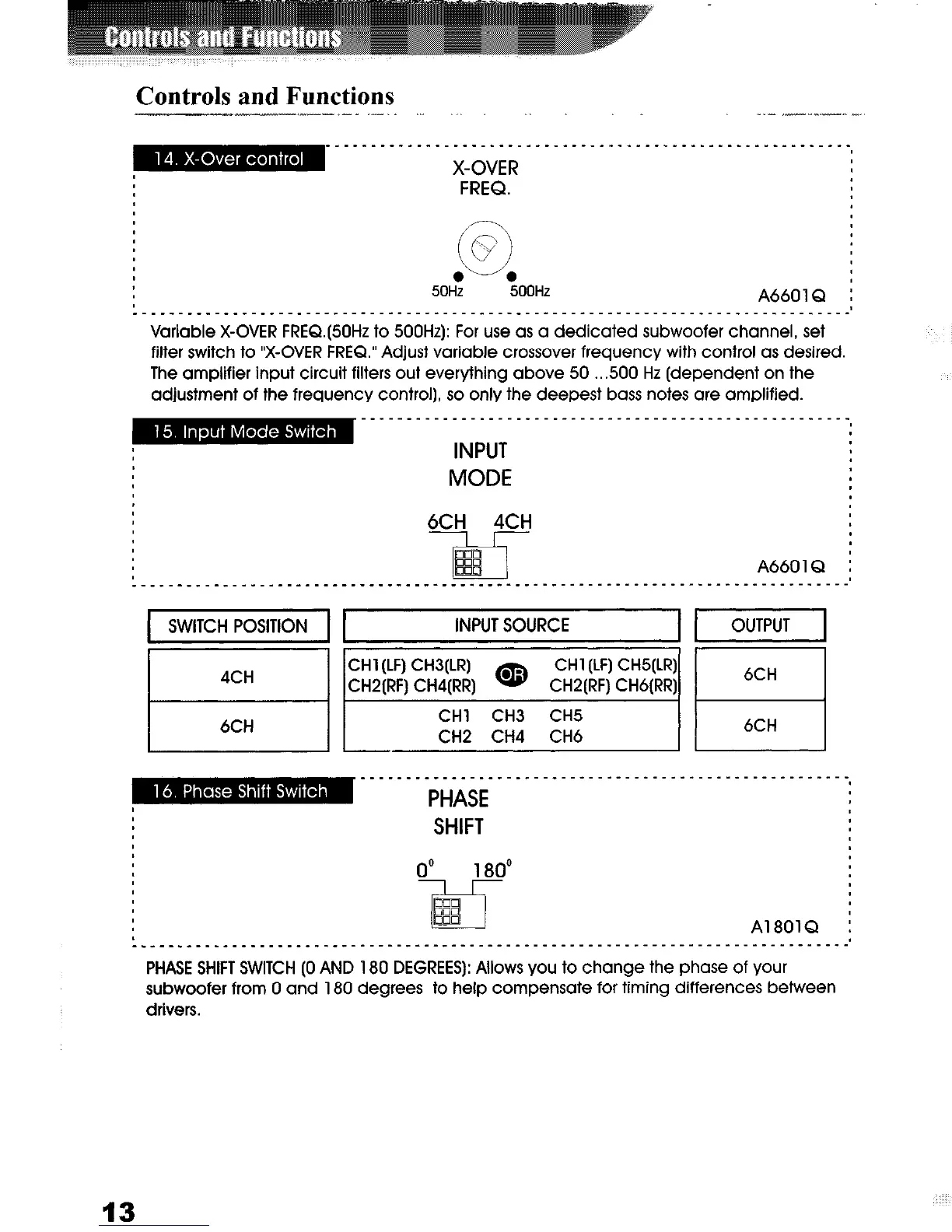

Controls and Functions
-x__-,___-,-. .-. I.- ,-.. _ .-.._
________________________________________--------~-~-------
X-OVER
FREQ.
,
50Hz 5OOHz
A6601Q i
________________________________________------------~-------------~---~---~----~
Variable X-OVER FREQ(50Hz to 500Hz): For use as a dedicated subwoofer channel, set
filter switch to “X-OVER FREQ.” Adjust variable crossover frequency with control as desired.
The amplifier input circuit filters out everything above 50 . ..500 Hz (dependent on the
adjustment of the frequency control], so only the deepest bass notes are amplified.
________________________________________--------------
INPUT
6CH 4CH
A6601Q !
SWITCH POSITION
INPUT SOURCE
CHl CH3 CH5
CH2 CH4 CH6
,
I
A1801Q :
________________________________________------------------~--~-----------------~
PHASE SHIFT SWITCH (0 AND 180 DEGREES): Allows you to change the phase of your
subwoofer from 0 and 180 degrees to help compensate for timing differences between
drivers.
i
!
Controls and Functions
A2:
I__________________________________
-PWR (Power) : This BLUE LED will illumil
illuminate, check the power connec
-PROT ( Protection) : The amplifier prot
overload, short circuit or extremely hi!
protection mode is in operation, the
what has caused the protection circa
the remote power off and then on ag
overload condition, please allow it tc
down because of an input overload
before attempting to power up the a
13
‘...
