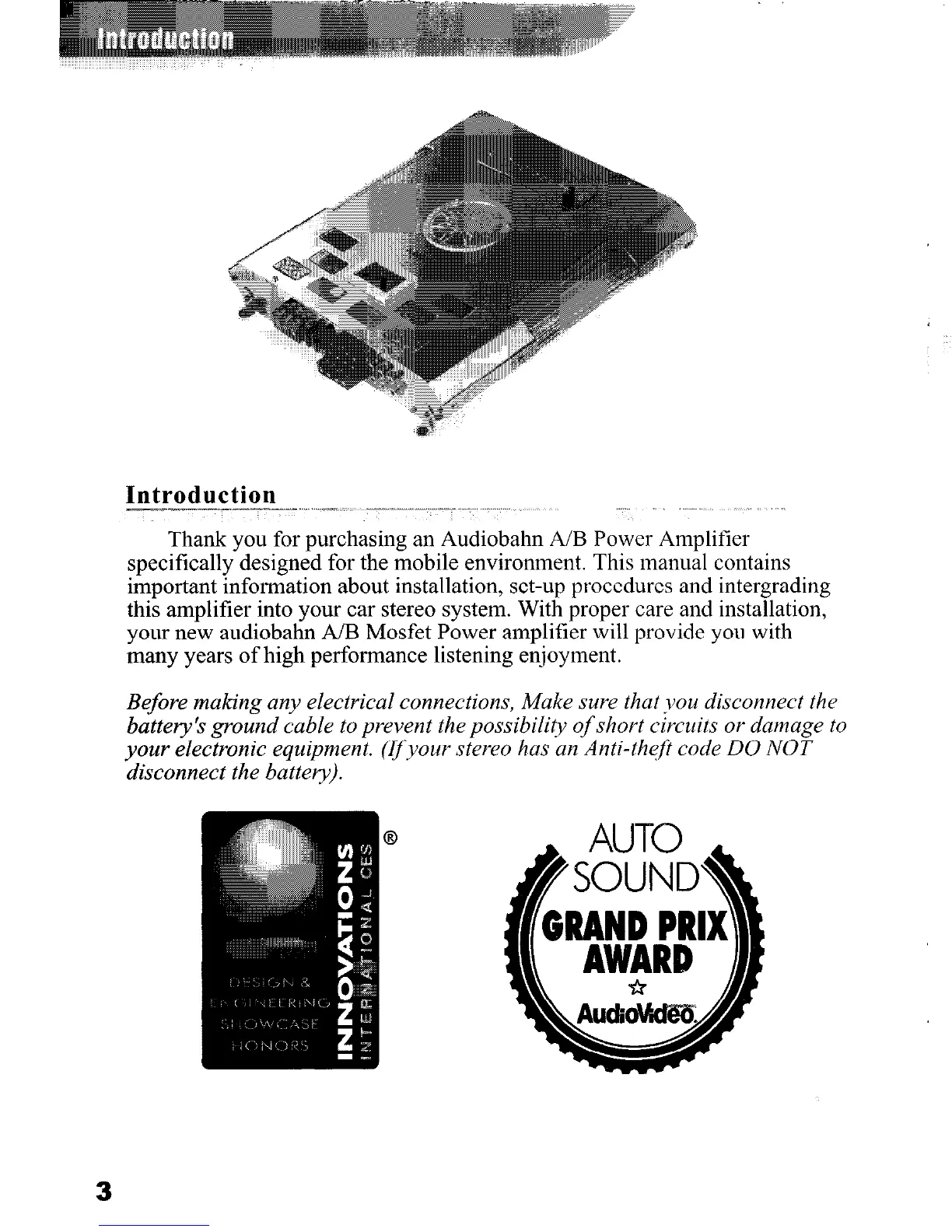

Introduction
” ----. “.--“- . ----.“-.“. ^..- ---- --I ”
.
Thank you for purchasing an Audiobahn A/B Power Amplifier
specifically designed for the mobile environment. This manual contains
important information about installation, set-up procedures and intergrading
this amplifier into your car stereo system. With proper care and installation,
your new audiobahn A/B Mosfet Power amplifier will provide you with
many years of high performance listening enjoyment.
Before making any electrical connections, Make sure that vou disconnect the
battery’s ground cable to prevent the possibility of short &wits or damage to
your electronic equipment. (rJ’your stereo has an Anti-th# code DO NOT
disconnect the battery).
Features and Specificatioln
.‘ “““.
e Class A/B Mosfet Power Amplifier
e 2 Ohm Stable Stereo
Q 4 Ohm Stable Mono
e Full Mosfet Power Supply
@ Non Regulated Power Supply
@ Double Sided Circuit Board
0 Interior Circuit Board llluminatior
e Blue LED Volt Meter*
0 Fan Cooled
* 18dB Bass Boost
l Soft Start Circuitry
l Variable Sub Sonic Filter 20-50H.
* Signal To Noise Ratio: 1 OOdB
* High Quality Bipolar Audio Stagt
Recommended Fuse Size
. A2201Q
* A2301Q
* A2401Q
* A2601Q
e A2801Q
. A3201Q
* A4401Q
l A4601Q
* A6601Q
@ A1801Q
2OAx 1
25Ax 1
30Ax 1
20Ax2
30Ax2
4OAx2
30Ax 1
2OAx2
3OAx2
2OAx2
Power Output -_
“.._” .,^-x_I.
. A2201Q 50 watts x 2 @ 4 ohm
. A2301Q
75 watts x 2 @ 4 ohm
l A2401Q lOOwattsx2@4ohr
. A2601Q 150 watts x 2 @ 4 ohr
. A2801Q
200 watts x 2 @ 4 ohr
. A3201Q 300 watts x 2 @ 4 ohr
. A4401Q
50wattsx4@4ohm
. A4601Q 75wattsx4@4ohm
e A6601Q 75wattsx6@4ohm
l A1801Q 400 watts x 1 @ 4 ohr
3
