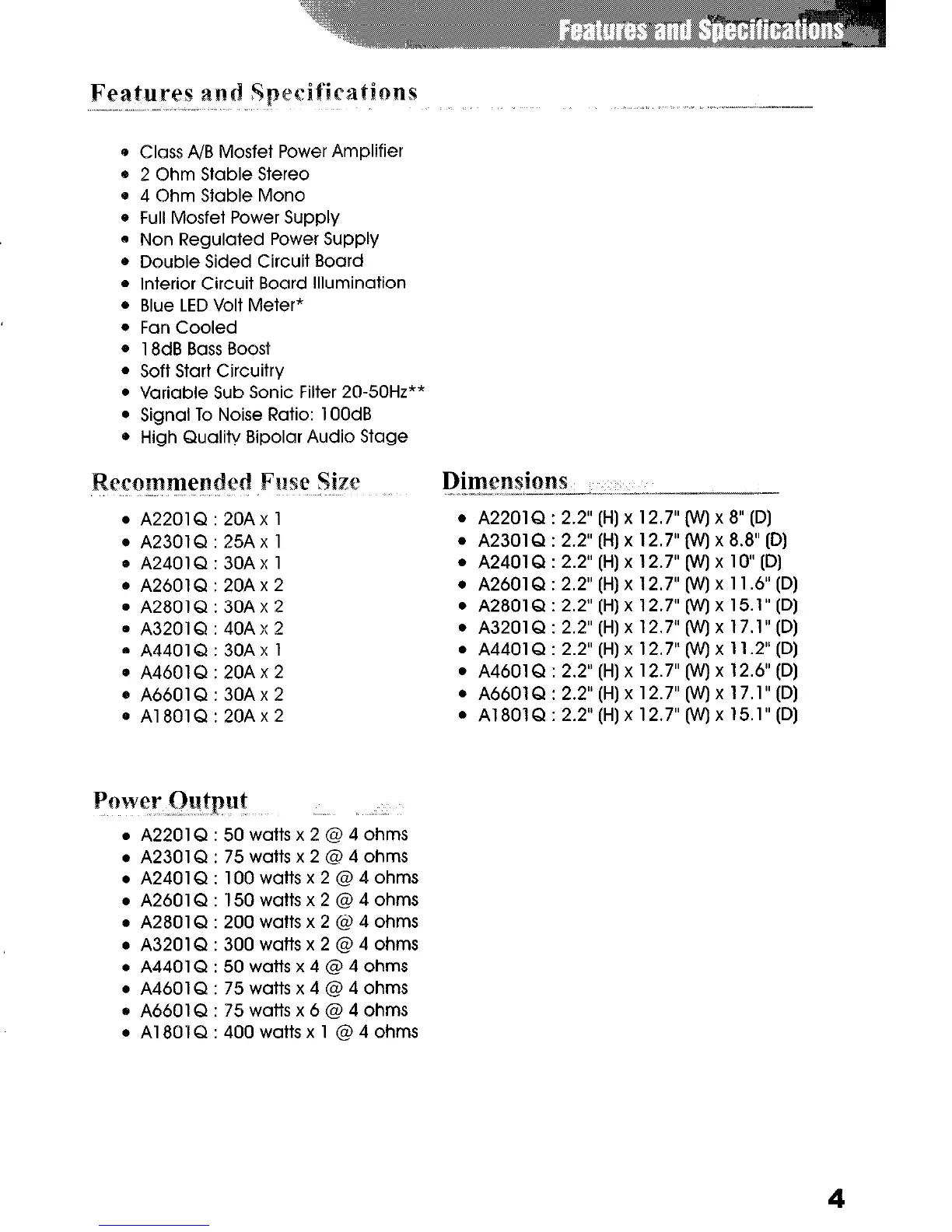

AudioBahn A2201Q - Page 5

n A/B Power Amplifier
ment. This manual contains
-up procedures and intergrading
5th proper care and installation,
Wier will provide you with
Ijoyment.
fake sure that vou disconnect the
ility qf shovt c&cuits or damage to
7s an Anti-th$ code DO MOT
B Class A/B Mosfet Power Amplifier
e 2 Ohm Stable Stereo
e 4 Ohm Stable Mono
0 Full Mosfet Power Supply
@ Non Regulated Power Supply
e Double Sided Circuit Board
0 Interior Circuit Board Illumination
0 Blue LED Volt Meter*
0 Fan Cooled
0 18dB Bass Boost
l Soft Start Circuitry
l Variable Sub Sonic Filter 20-5OHz**
l Signal To Noise Ratio: 1 OOdB
e High Quality Bipolar Audio Stage
. A2201 Q : 20A x 1
. A2301 Q : 25A x 1
0 A2401Q: 3OAx 1
. A26OlQ: 2OAx2
* A28OlQ:3OAx2
* A3201Q: 4OAx 2
e A44OlQ: 3OAx 1
* A46OlQ:2OAx2
0 A66OlQ:3OAx2
* Al8OlQ: 2OAx2
Power ~~~~~~
“..^ .
. A2201 Q : 50 watts x 2 @ 4 ohms
l A2301 Q : 75 watts x 2 @ 4 ohms
l A24OlQ: lOOwattsx2@4ohms
l A26OlQ: 15Owattsx2@4ohms
l A2801 Q : 200 watts x 2 @ 4 ohms
l A3201 Q : 300 watts x 2 @ 4 ohms
l A44OlQ:5Owattsx4@4ohms
l A4601 Q : 75 watts x 4 @ 4 ohms
o A6601 Q : 75 watts x 6 @ 4 ohms
o Al 801 Q : 400 watts x 1 @ 4 ohms
-_l_ll_,_^,~-_---l--.-_ll.“...l-^l~
~
. A22OlQ : 2.2” (H) x 12.7” (W) x 8” (D)
. A2301 Q : 2.2” (H) x 12.7” (W) x 8.8” (D)
. A2401 Q : 2.2” (H) x 12.7” (WI x lo” (D)
. A2601 Q : 2.2” (H) x 12.7” (WI x 11.6” (D)
. A28OlQ : 2.2” (H) x 12.7” [WI x 15.1” (D)
. A32OlQ : 2.2” (H) x 12.7” (WI x 17.1” (D)
l A4401 Q : 2.2” (H) x 12.7” (W) x 11.2” (D)
. A4601 Q : 2.2” (H) x 12.7” (W) x 12.6” (D)
. A66OlQ : 2.2” (H) x 12.7” (w) x 17.1” (D)
l A18OlQ: 2.2”(H)x12.7”(W)x 15.1”(D)
