AudioCodes Mediant 1000 User Guide

Fast Track Guide 3. Configuring the Mediant 1000
Version 5.0 25 October 2006
Note: The following sections from here, up to the end of this Guide,
apply equally to MEGACO, H.323, and SIP.
3.6 Configuring the Trunks
¾ To configure the trunks, take these 13 steps:
1. Access the Embedded Web Server (refer to Section 3.3 on page 15).
2. Open the ‘Trunk Settings’ screen (Advanced Configuration menu > Trunk Settings); the
‘Trunk Settings’ screen is displayed.
Initially, the screen appears with the parameters fields grayed (indicating read-only). The
Stop Trunk button appears at the bottom of the screen. Table 3-2 describes the Trunk
Status indicators.

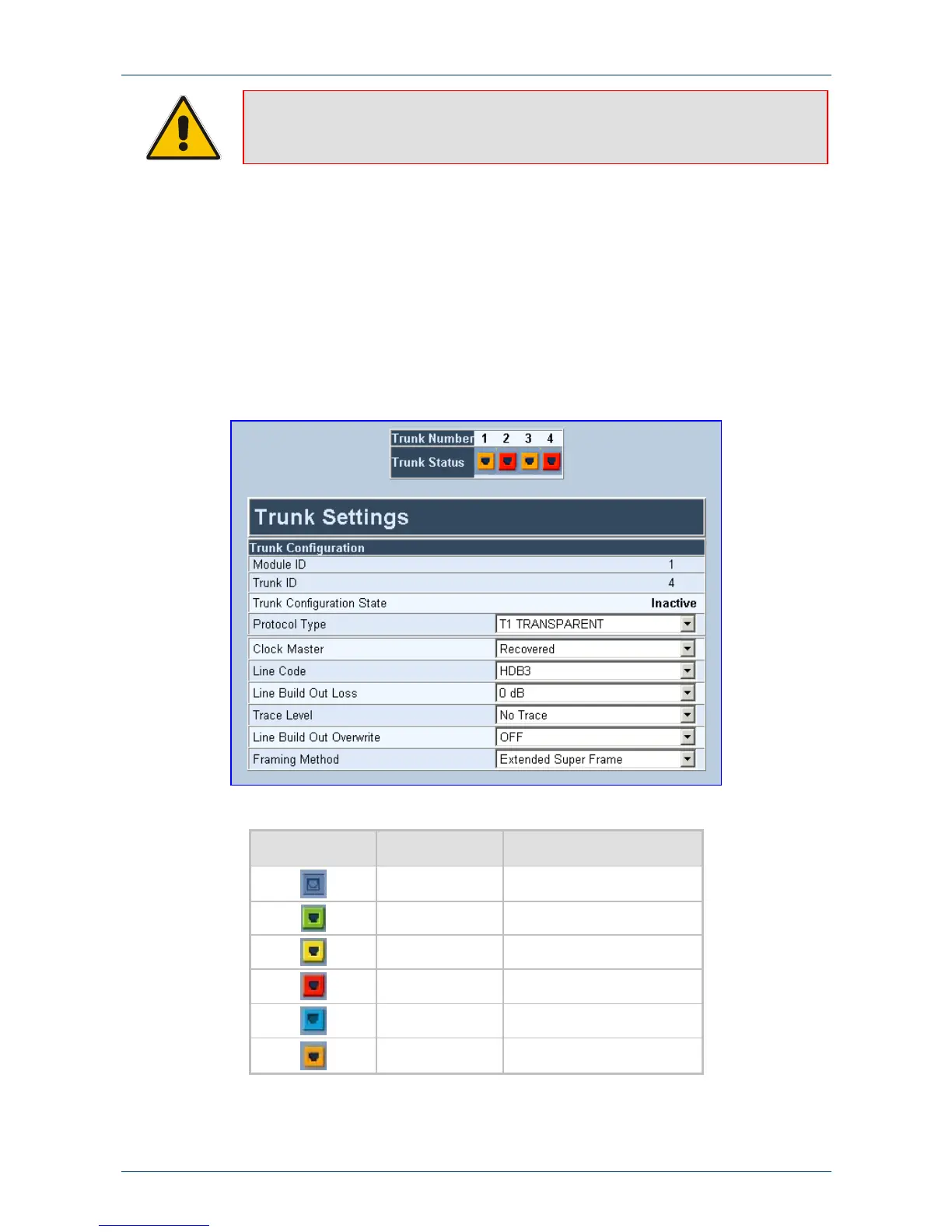

Figure 3-10: 'Trunk Settings' Screen
Table 3-2: Trunks Status Color-Code Description
Indicator Color Description
Gray Disabled
Green Active-OK
Yellow RAI Alarm
Red LOS/LOF Alarm
Blue AIS Alarm
Orange D-channel Alarm (ISDN only)
3. To configure the parameters of a specific trunk, select the trunk you want to configure by
clicking the Trunk Status indicator corresponding to the trunk number. The first parameter
named ‘Trunk ID’ changes according to the trunk you selected. The parameters displayed
are for the selected trunk only.

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
