AudioCodes Mediant 600 - Figure 2-4: Location on Underside of Grooves for Rubber Feet

Version 6.0 15 February 2010
Installation Manual 2. Installing the Device
¾ To stick the anti-slide rubber bumpers to the device:
1. Flip the device over so that its underside faces up.
2. Locate the four anti-slide grooves on the device's underside -- one in each of the four
corners, as shown in the figure below:

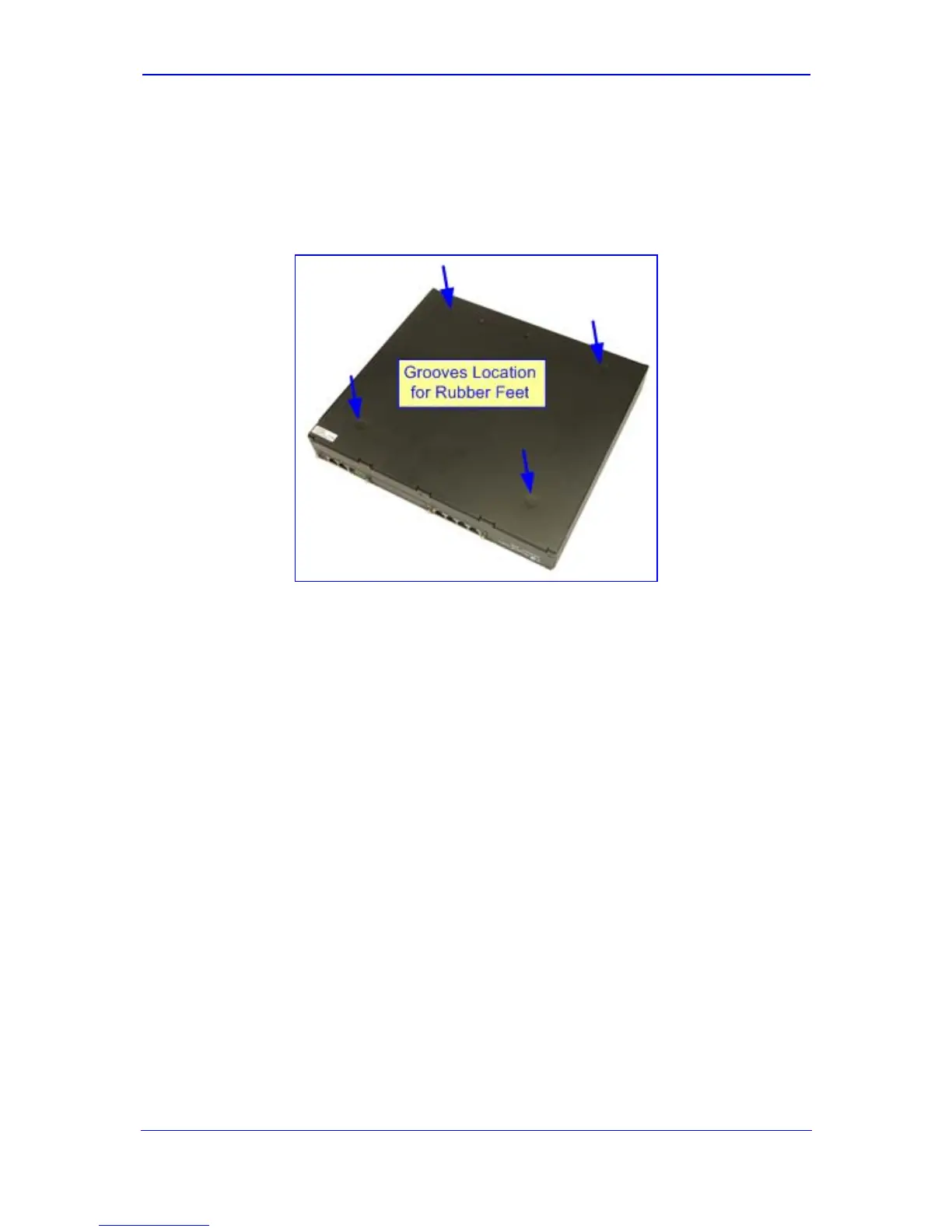

Figure 2-4: Location on Underside of Grooves for Rubber Feet
3. Peel off the adhesive, anti-slide rubber feet and stick one in each anti-slide groove.
4. Flip the device over again so that it is resting on its underside and the rubber bumpers
are in contact with the surface.
