USB 2.0 port, not applicable.
5 // Reset pinhole button to reset the device or to restore to factory defaults. To restore to
factory defaults: With a paper clip or any other similar pointed object, press and hold down
the pinhole button for at least 12 seconds, but no longer than 25 seconds
6 S1 / FE LAN Up to four Fast Ethernet (10/100Base-T) ports (RJ-45) to connect to LAN or WAN. These
support full-duplex modes, auto-negotiation, and straight or crossover cable detection.
7 S2 / BRI Up to four ISDN BRI port interfaces (RJ-45)
2.1.3 Cabling
2.1.3.1 Connecting LAN Interfaces
Four Fast Ethernet (10/100Base-T) ports (supporting half- and full-duplex modes, auto-
negotiation, and straight or crossover cable detection) allow connection to the LAN/WAN.
To connect the device to the BroadCloud service:
1. If the device's IP isn't configured yet, connect as shown in Section 3.
2. If the device's IP has already been configured:
a. Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the RJ-45
port labeled S1 / FE LAN port 1.
b. Connect the other end to the DMZ port assigned by the IT administrator.

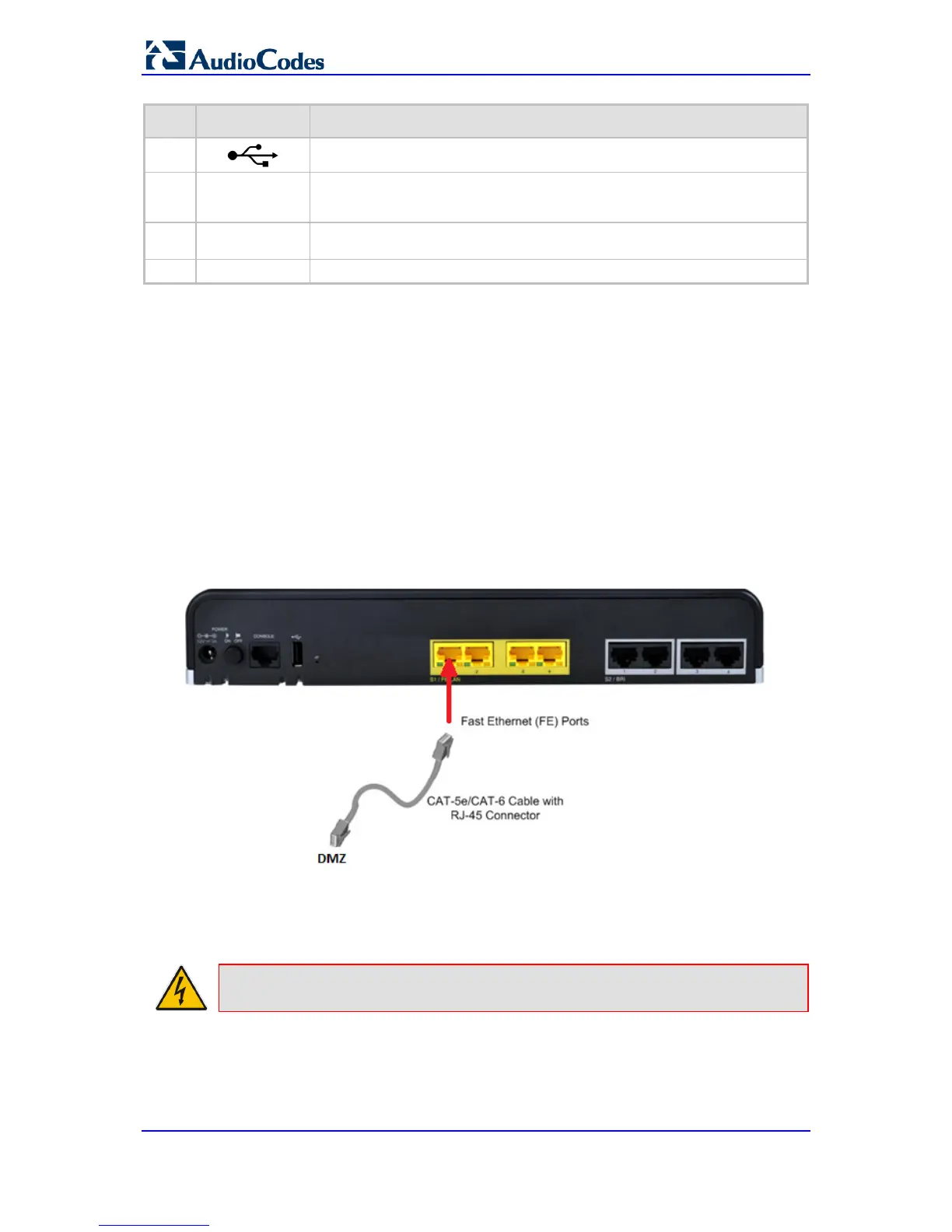

Figure 2-3: Cabling Ethernet Ports
2.1.3.2 Connecting BRI Lines
This section shows how to connect the device's BRI ports to the PBX.
