Quick Setup Guide 2. Installing the Hardware
BroadCloud SIP Trunk 7 AudioCodes Mediant BRI/PRI Gateway

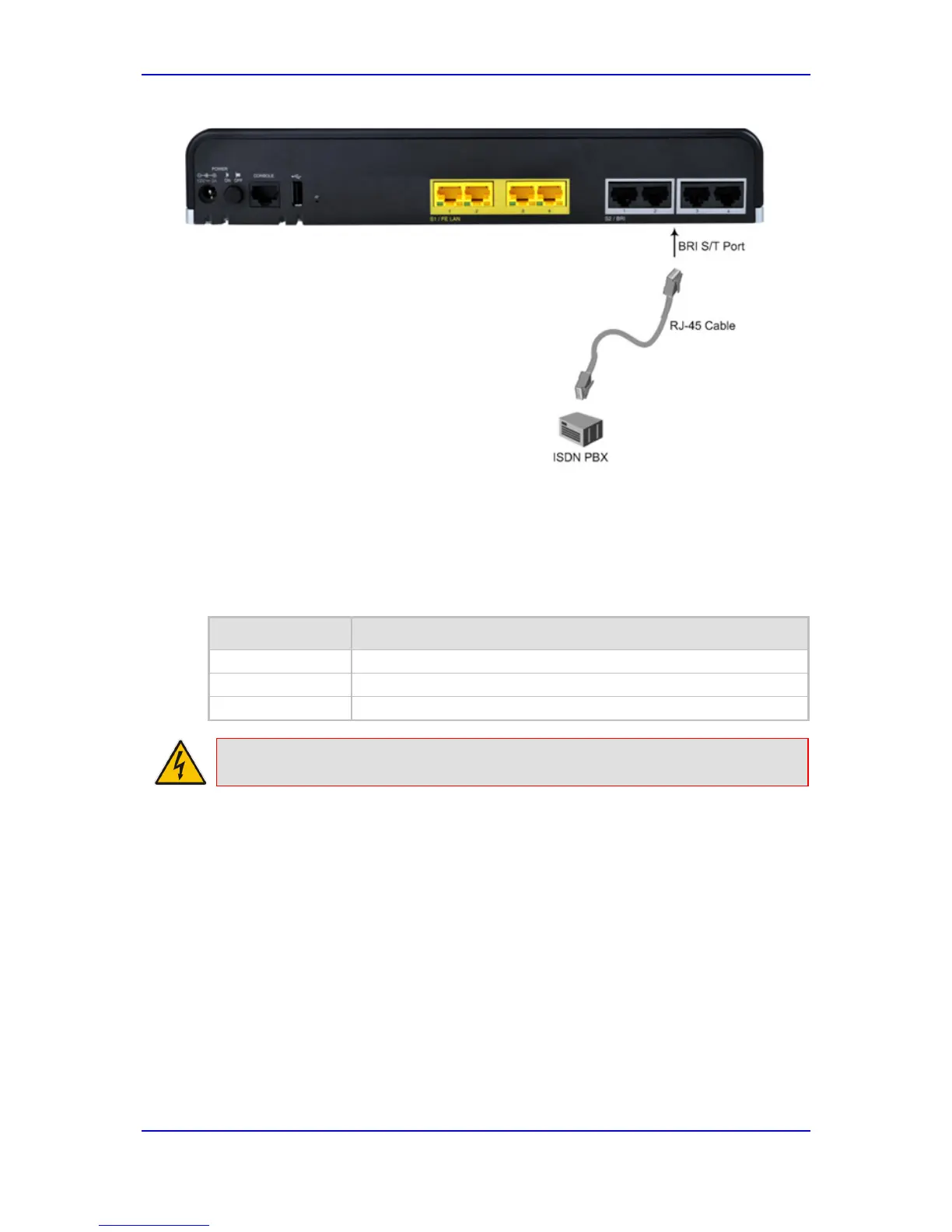

Figure 2-4: Cabling BRI Ports
2. Connect the other end of the cable to your ISDN PBX equipment.
2.1.3.3 Connecting to the Power Supply
The device is powered by an external 12V AC/DC power adapter (supplied), connected to
a standard alternating current (AC) electrical wall outlet.
Table 2-3: Power Specifications
Item Description
Power Supply Single universal external AC power supply
Input Ratings 100-240 VAC, 50-60 Hz
Output Ratings 12V/3A
Warning: Use only the AC/DC power adapter supplied with the device.
The device is shipped with the AC/DC power adapter shown Figure 2-5 which also
supports interchangeable plugs to suite the electrical wall outlet type requirement of the
country in which the device is being installed.
