Mounting the Device
You can mount the device in a standard 19-inch rack.

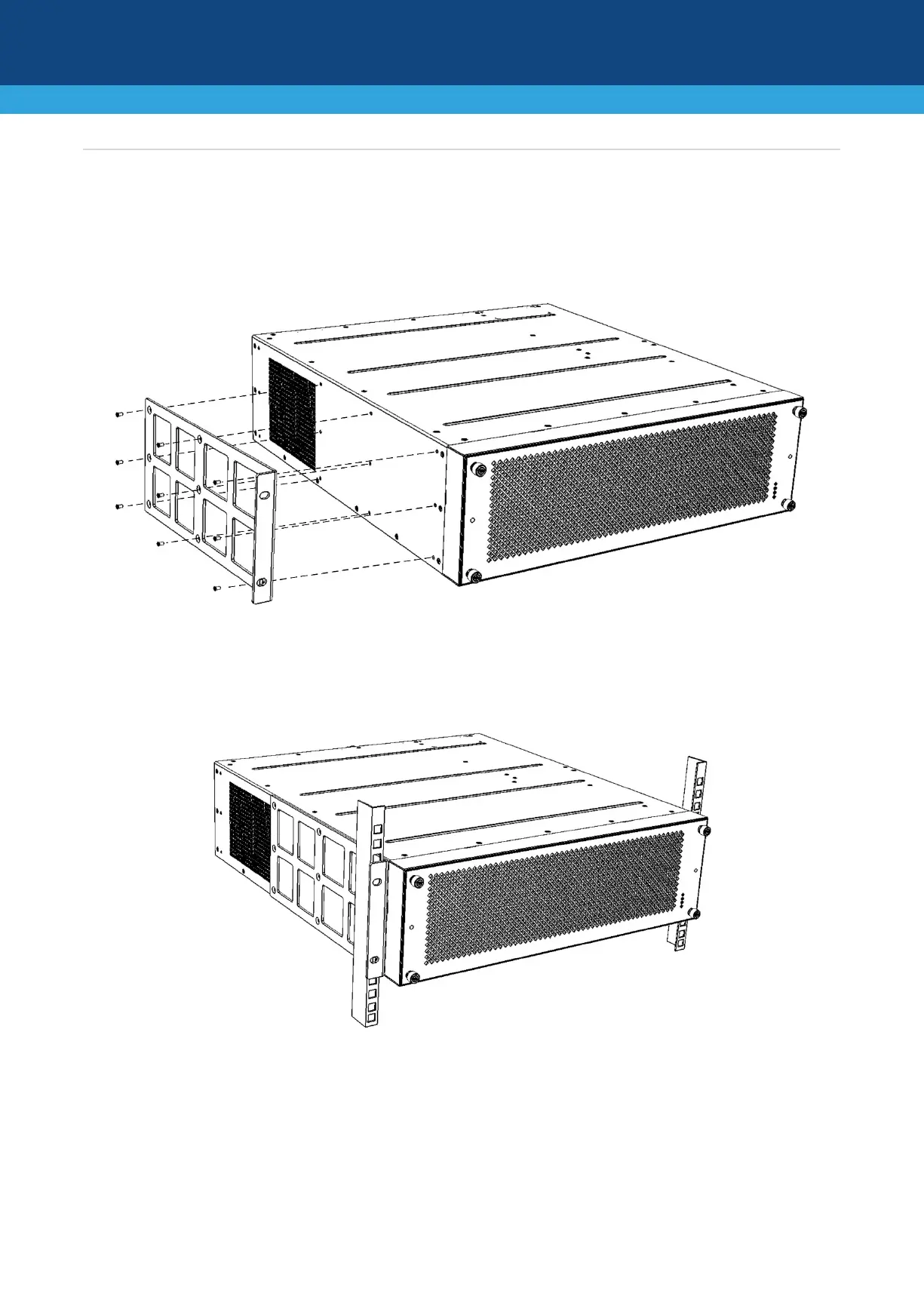

1. Attach the two front-mounting brackets (supplied) to both sides of the chassis. Each bracket is secured
to the chassis using 9 screws (supplied).
2. With two people, lift the chassis into the rack from the front of the rack.
3. Hold the chassis for support while the second person positions the chassis so that the front-mounting
brackets are flush against the front-rack posts and that the holes of the front-mounting brackets are
aligned with the holes on the front-rack post.
4. Hold the chassis in position while the second person secures the two front-mounting brackets to the
front posts, by finger-tightening 19-inch rack bolts (not supplied) to the rack posts. Each mounting
bracket is secured to the rack by two bolts. Make sure that the left and right front-mounting brackets
are attached to the rack posts at the same level so that the chassis is supported in a horizontal position.
5. Tighten the bolts on the front-mounting brackets.
