Installation Manual 12 Document #: LTRT-59809
MediaPack Series

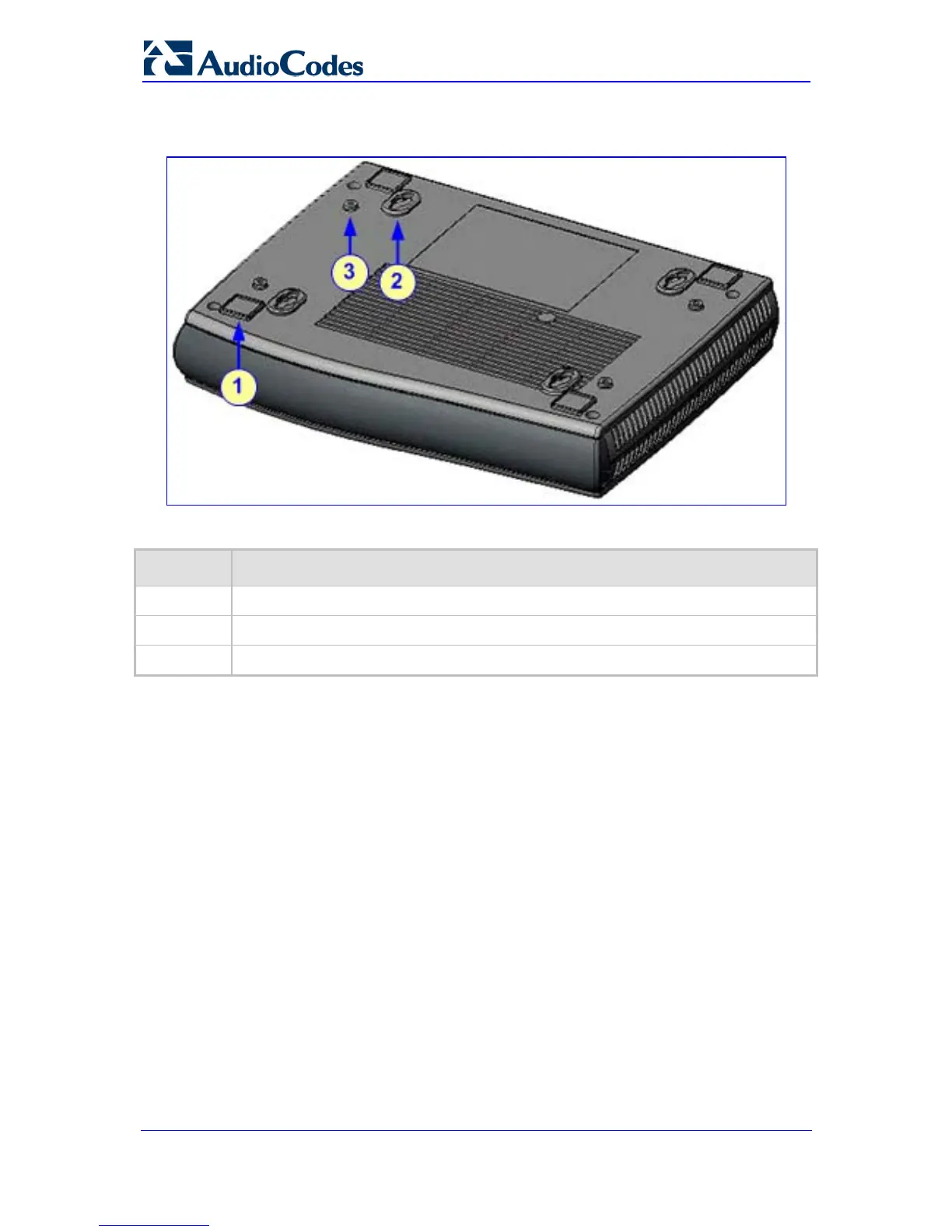

The figure below shows the mounting components on the underside of the MP-11x:
Figure 2-3: View of MP-11x Underside
Table 2-2: Mounting Components on MP-11x Underside
Item # Functionality
1
Square slot used to attach anti-slide bumpers (for desktop mounting).
2
Oval notch used to attach the MP-11x to a wall.
3
Screw opening used to attach the MP-11x to a 19-inch shelf rack.
2.1.3.1 Desktop Mounting
Attach the four (supplied) anti-slide bumpers to the base of the MP-11x and place it on a
desktop in the desired position.
2.1.3.2 Wall Mounting
Follow the procedure below for mounting the MP-11x on a wall.
¾ To mount the MP-11x on a wall, take these 4 steps:
1. Drill four holes according to the following dimensions:
• Horizontal distance between holes: 140 mm (5.51 inches)
• Vertical distance between: 101.4 mm (4 inches)
2. Insert a wall anchor of the appropriate size into each hole.
3. Fasten a DIN 96 3.5X20 wood screw (not supplied) into each of the wall anchors.
4. Position the four oval notches, located on the underside of the MP-11x (refer to Item
#2 in 'Mounting the MP-11x' on page 11),
over the four screws and hang the MP-11x
on them.
