AudioCodes MediaPack MP-112 Fast Track Guide

Analog Fast Track Guide 7. Upgrading the MediaPack
Version 4.8 33 March 2006

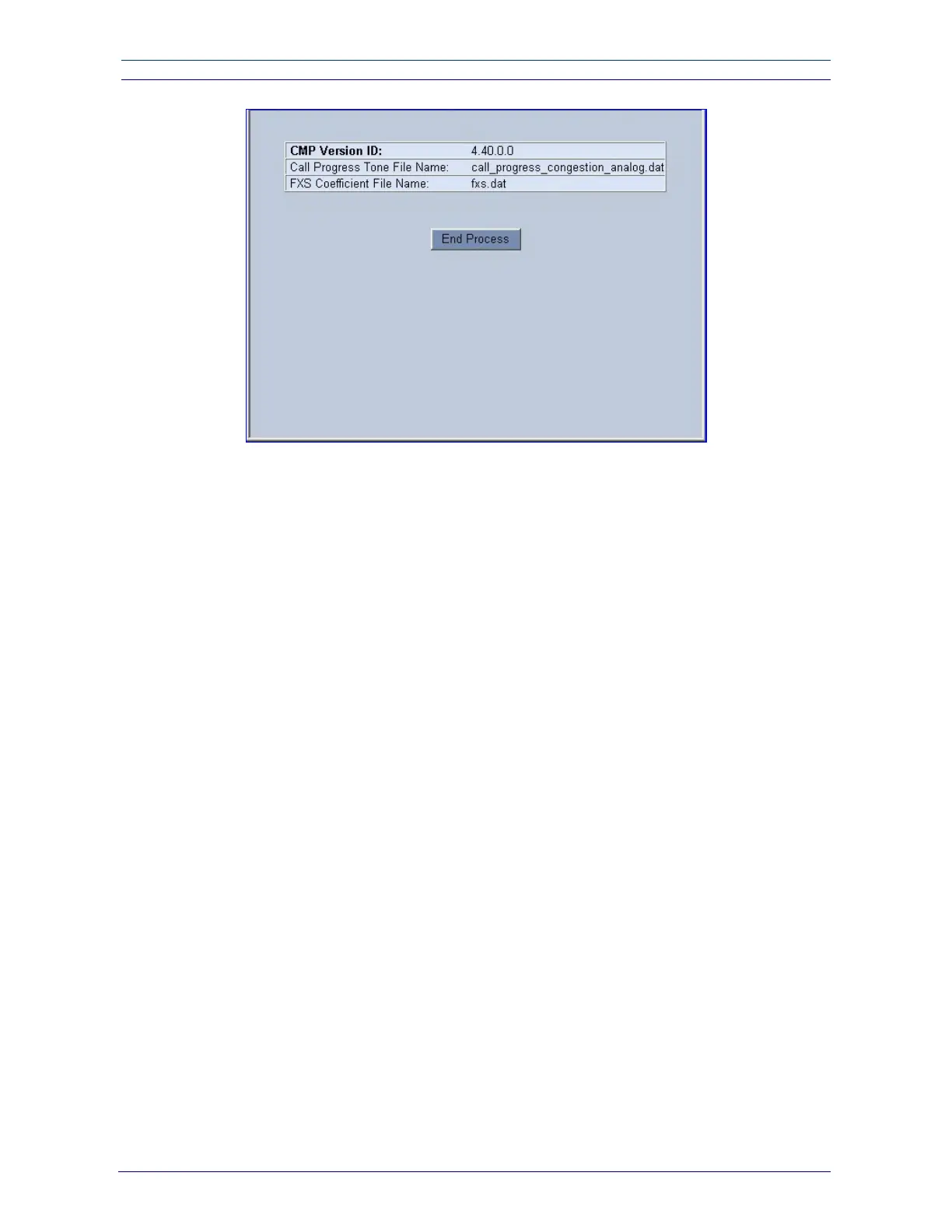

Figure 7-7: ‘End Process’ Screen
9. Click the End Process button; the ‘Quick Setup’ screen appears and the full Web application
is reactivated.

AudioCodes MediaPack MP-112 Specifications

General

Fax Support	T.38, G.711 pass-through
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Ports	2 FXS
Network Interface	10/100Base-T Ethernet
Protocols	SIP, MGCP
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Management	Web, SNMP
Power Supply	12V DC
