AudioCodes MP-504 User Manual

4. Mounting the Device
MP-504/8
- 13 -

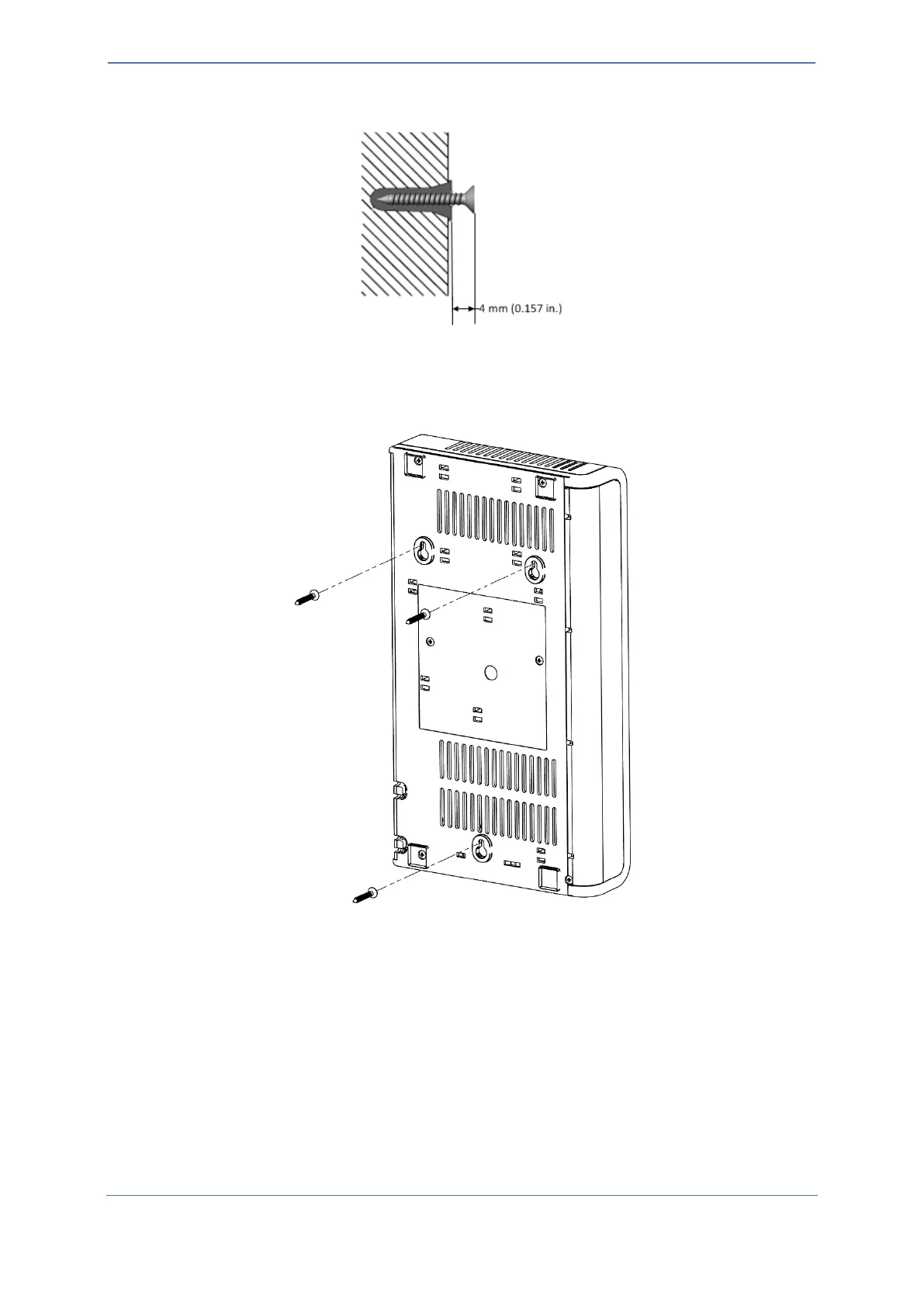

Figure 8: Protruded Screw Distance from Wall Surface
4. Hold the device so that it is orientated with the bottom panel with the keyholes facing the
wall and the rear panel with the ports facing your right.
5. Mount the device on the wall by hanging the device's keyholes on the screw heads:
Figure 9: Hanging Device on Screw Heads

AudioCodes MP-504 Specifications

General

Brand	AudioCodes
Model	MP-504
Category	Gateway
Language	English
