5. Cabling the Device
MP-504/8
- 14 -
5 Cabling the Device
This chapter describes device cabling.

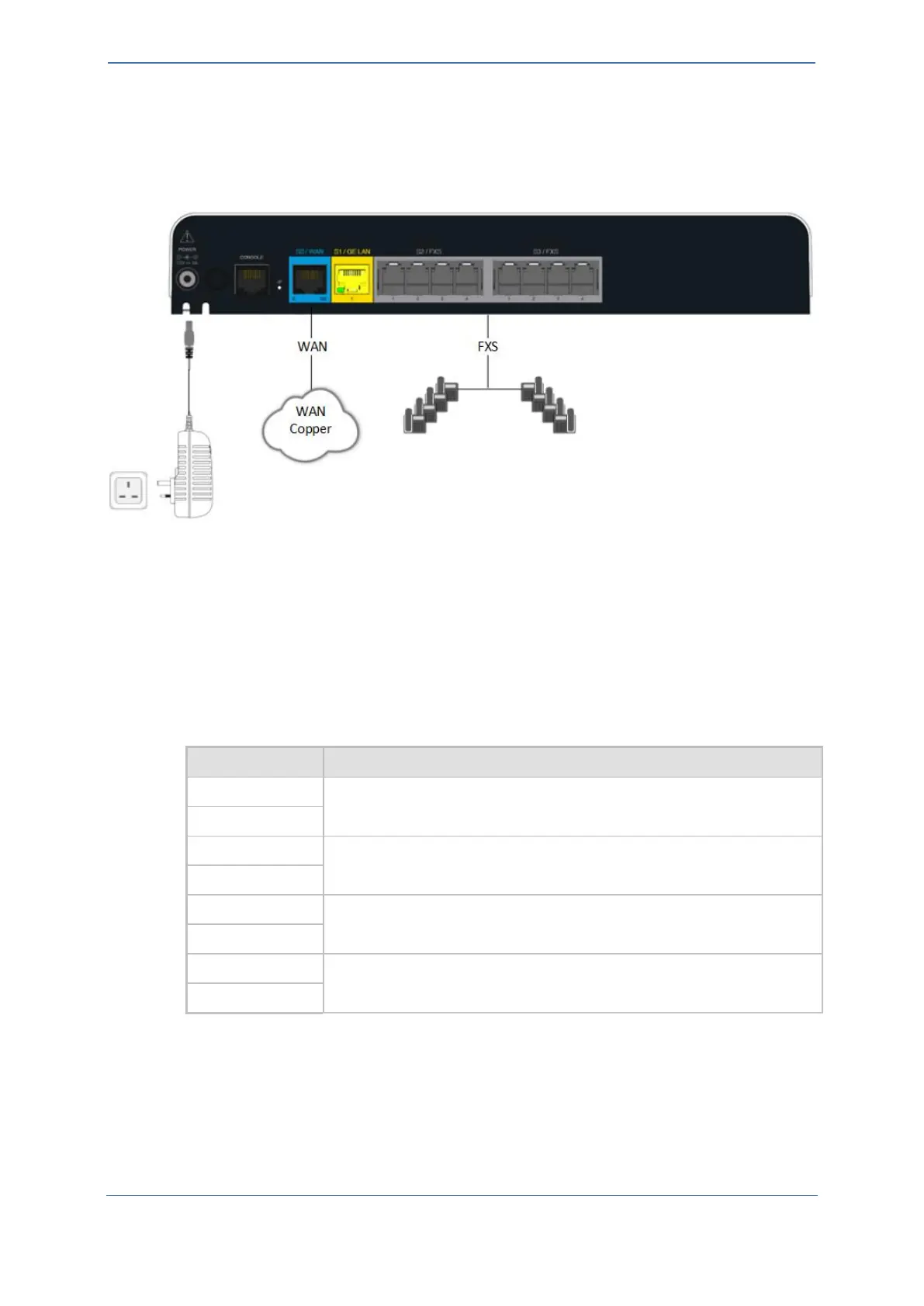

Figure 10: Cabling Overview
5.1 Cabling WAN Interface
The device provides a copper Gigabit Ethernet (GbE) port interface for connecting to the WAN.
Cable specification:
◼ Cable: straight-through Cat 5 cable
◼ Connector: RJ-45
◼ Connector Pinouts:
Table 2: RJ-45 Connector Pinouts for Copper GbE WAN
Pin
Signal Name
1
Ethernet signal pair
2
3
Ethernet signal pair
6
4
Ethernet signal pair
5
7
Ethernet signal pair
8
