AudioControl ACM-4.300 User Manual

10
Quick Start Guide

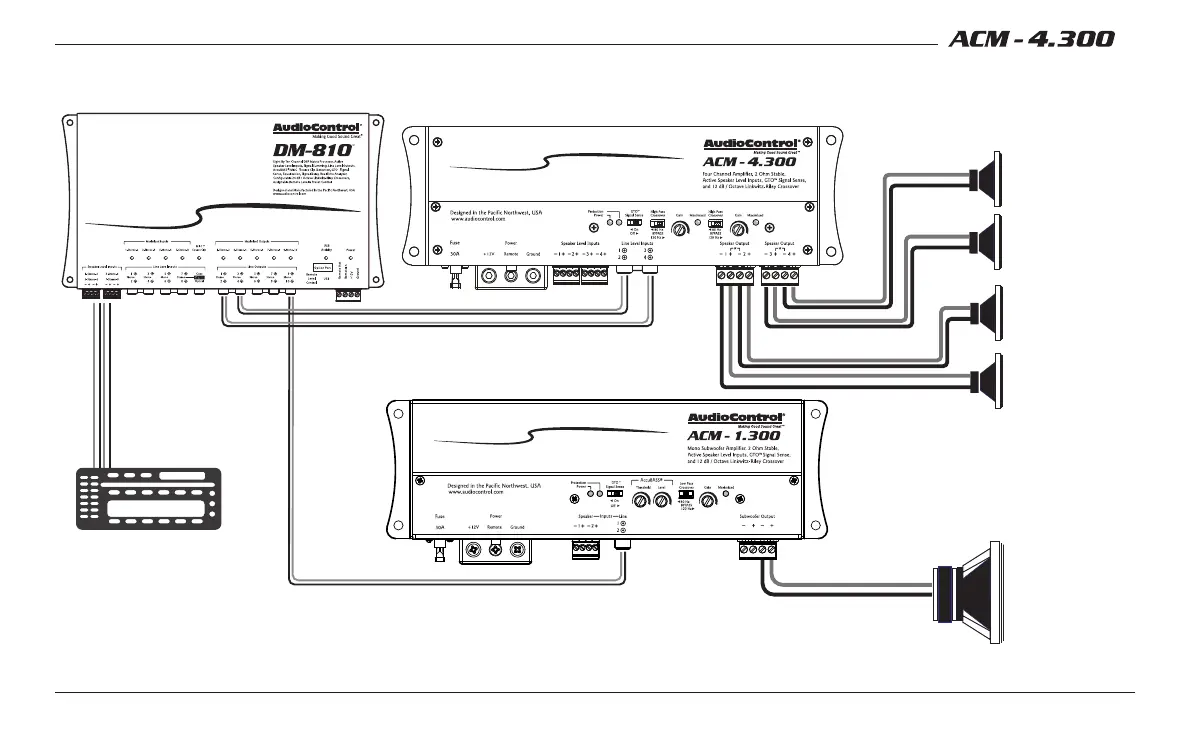

System #2: Using Line-Level Inputs
Factory
Radio
Line-level
outputs
Speaker-level
outputs
+
+
+
Subwoofer
Front Speakers
Rear Speakers
Speaker-level output
80 Hz and below
ACM-1.300
Mono Subwoofer Amplifier
ACM-4.300
+
+
+
+

AudioControl ACM-4.300 Specifications

Power Output

power output at 4 ohms	4x50 Watts
power output at 2 ohms	4x75 Watts
bridged power output at 4 ohms	2x150 Watts

Audio Performance

frequency response	10 Hz - 30 kHz
total harmonic distortion + noise	< 0.01%
signal-to-noise ratio	102 dBa, Ref 50 Watts @ 4 Ohms

Connectivity

speaker-level inputs	2x, 40V (400W) max
line-level inputs	2x, balanced RCA, 8V max
power / ground wire gauge	Between 8 and 4 AWG

Physical Specifications

weight	2.15 lbs
dimensions	9.41" W X 2.97" D X 1.75" H
fuse rating	1 X 30 Amps
