AudioControl ACM-4.300 User Manual

8
Quick Start Guide
Power Connections
Ground
Head Unit
Remote Amplifier
+12V Trigger
+12V

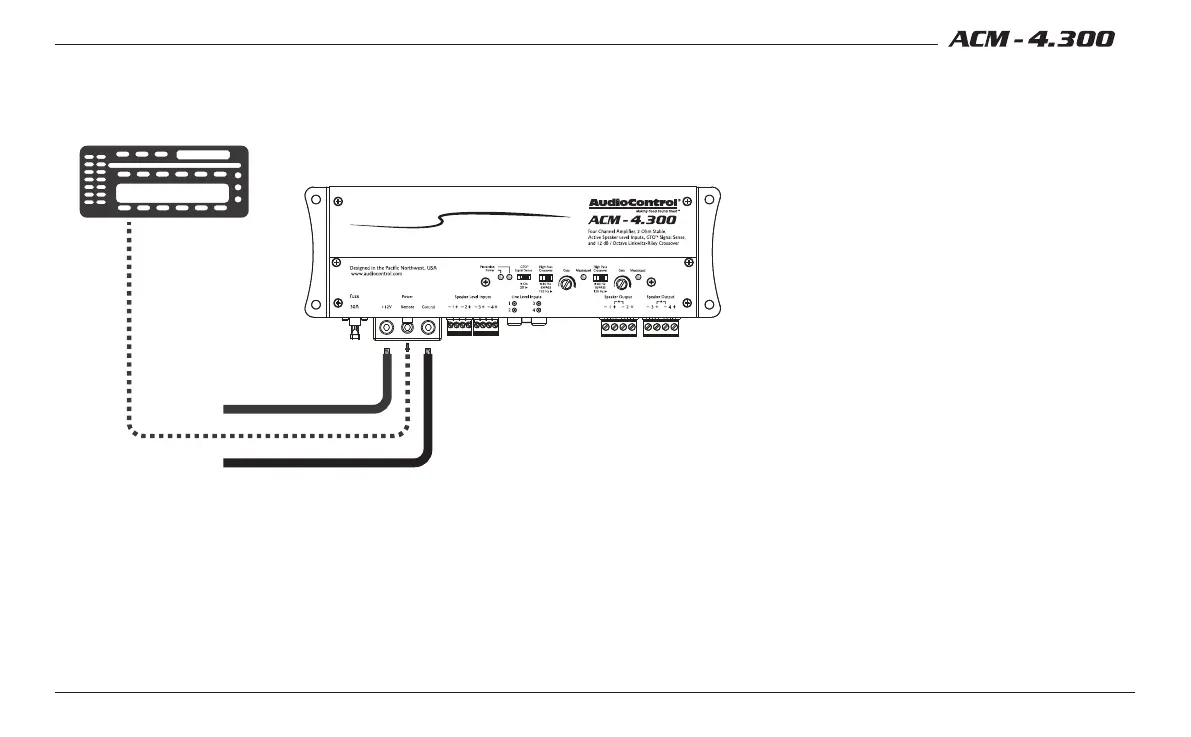

In this example, the head unit has a +12V trigger
output that is connected to the ACM-4.300 remote
input terminal. When the head unit is turned on, it
will turn on the ACM-4.300 amplier.
Alternatively, the GTO™ signal sense feature can
be used to gently turn on the ACM-4.300 amplier
when an audio input signal is detected. (The con-
nection to the ACM-4.300 remote input terminal is
not required when using the GTO™ signal sense.)

AudioControl ACM-4.300 Specifications

Power Output

power output at 4 ohms	4x50 Watts
power output at 2 ohms	4x75 Watts
bridged power output at 4 ohms	2x150 Watts

Audio Performance

frequency response	10 Hz - 30 kHz
total harmonic distortion + noise	< 0.01%
signal-to-noise ratio	102 dBa, Ref 50 Watts @ 4 Ohms

Connectivity

speaker-level inputs	2x, 40V (400W) max
line-level inputs	2x, balanced RCA, 8V max
power / ground wire gauge	Between 8 and 4 AWG

Physical Specifications

weight	2.15 lbs
dimensions	9.41" W X 2.97" D X 1.75" H
fuse rating	1 X 30 Amps
