Audiovox Rampage AXT-240 User Manual

-7-

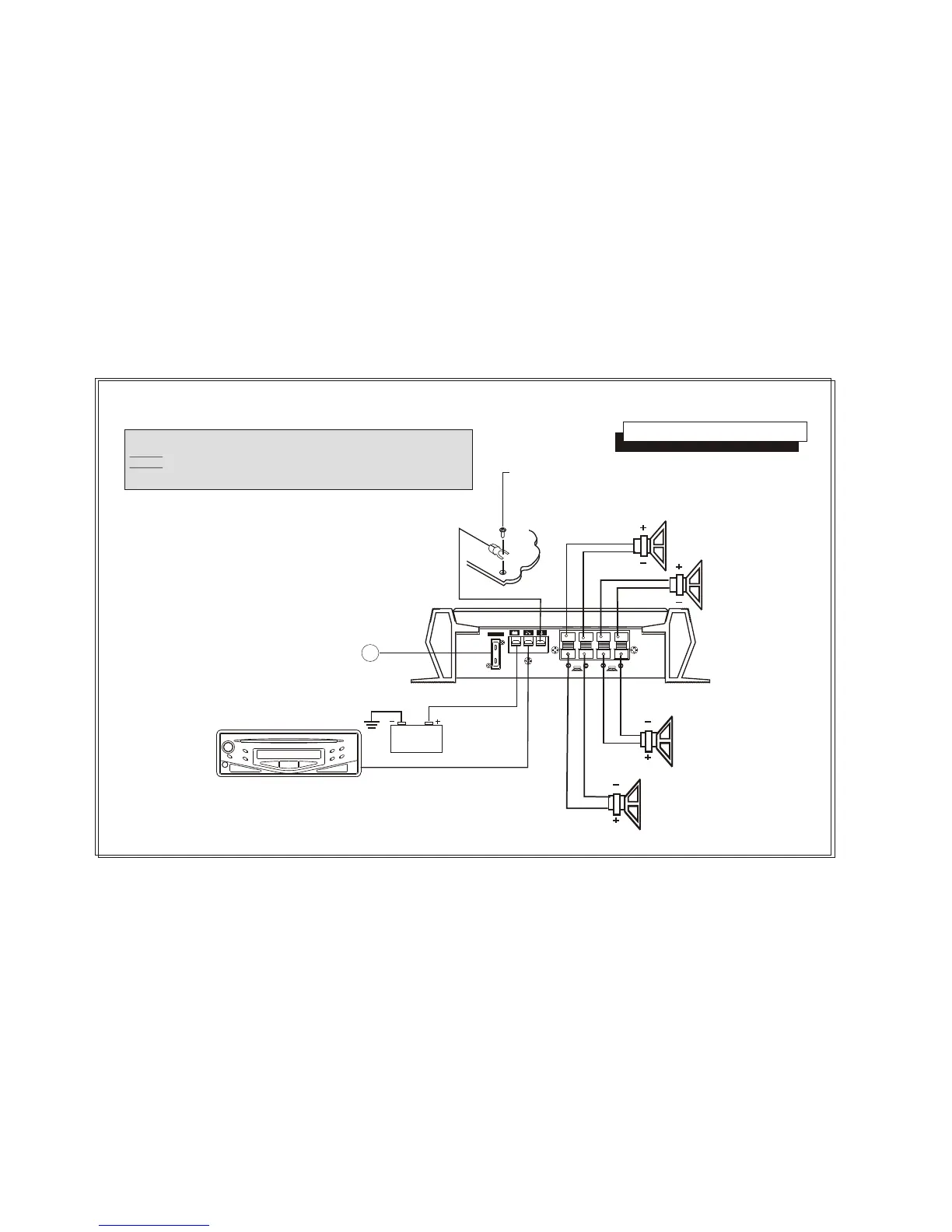

OUTPUT WIRING DIAGRAM
CAR STEREO
GROUND
FUSEFUSE
REMBATT GND
LEFT RIGHT
BATTERY
FOR 12 VOLT USE ONLY
AUTO-ANTENNA LEAD
3
GROUND METAL
SECTION OF VEHICLE
EXISTING SCREW OR BOLT CLEAN PAINT, RUST, DIRT
OR GREASE FROM AREA FOR GOOD CONNECTION.
1CH
2CH
3CH
4CH
+
+
-
-
+
+
-
-
WARNING!
NEVER COMBINE (BRIDGE ) OUTPUTS FOR USE WITH 2 SPEAKER.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE AMPLIFIER.
THIS AMPLIFIER IS DESIGNED FOR USE WITH 4 SPEAKERS
LEFT FRONT
SPEAKER
4-8 OHMS
LEFT REAR
SPEAKER
4-8 OHMS
RIGHT REAR
SPEAKER
4-8 OHMS
RIGHT FRONT
SPEAKER
4-8 OHMS
