Optional Equipment
NAV 104: Allows you to access navigation features. All installation and operating instructions are included with the navigation
module.
Rear Camera
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation.
NOTE: If the VME 9425 is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the
battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during
installation to avoid causing a short circuit.
Replacing the Fuse
When replacing the fuse, use a new 15A replacement fuse. Using a fuse with an improper rating could damage the unit and cause a
¿UH
ISO-DIN Installation
7KLVXQLWLVGHVLJQHGWR¿WLQWRD',1GDVKERDUGRSHQLQJIRXQGLQPDQ\LPSRUWHGFDUV7KHXQLWKDVWKUHDGHGKROHVLQWKH
chassis side panels which may be used with the original factory mounting brackets of some Toyota, Nissan, Mitsubishi, Isuzu,
Hyundai and Honda vehicles to mount the radio to the dashboard. Please consult with your local car stereo specialty shop for
assistance on this type of installation.
1. Remove the existing factory radio from the dashboard or center console mounting. Save all hardware and brackets as they will
be used to mount the new radio.
2. Remove the factory mounting brackets and hardware from the existing radio and attach them to the new radio.
CAUTION! Do not exceed M5 X 6MM screw size. Longer screws may damage components inside the chassis.

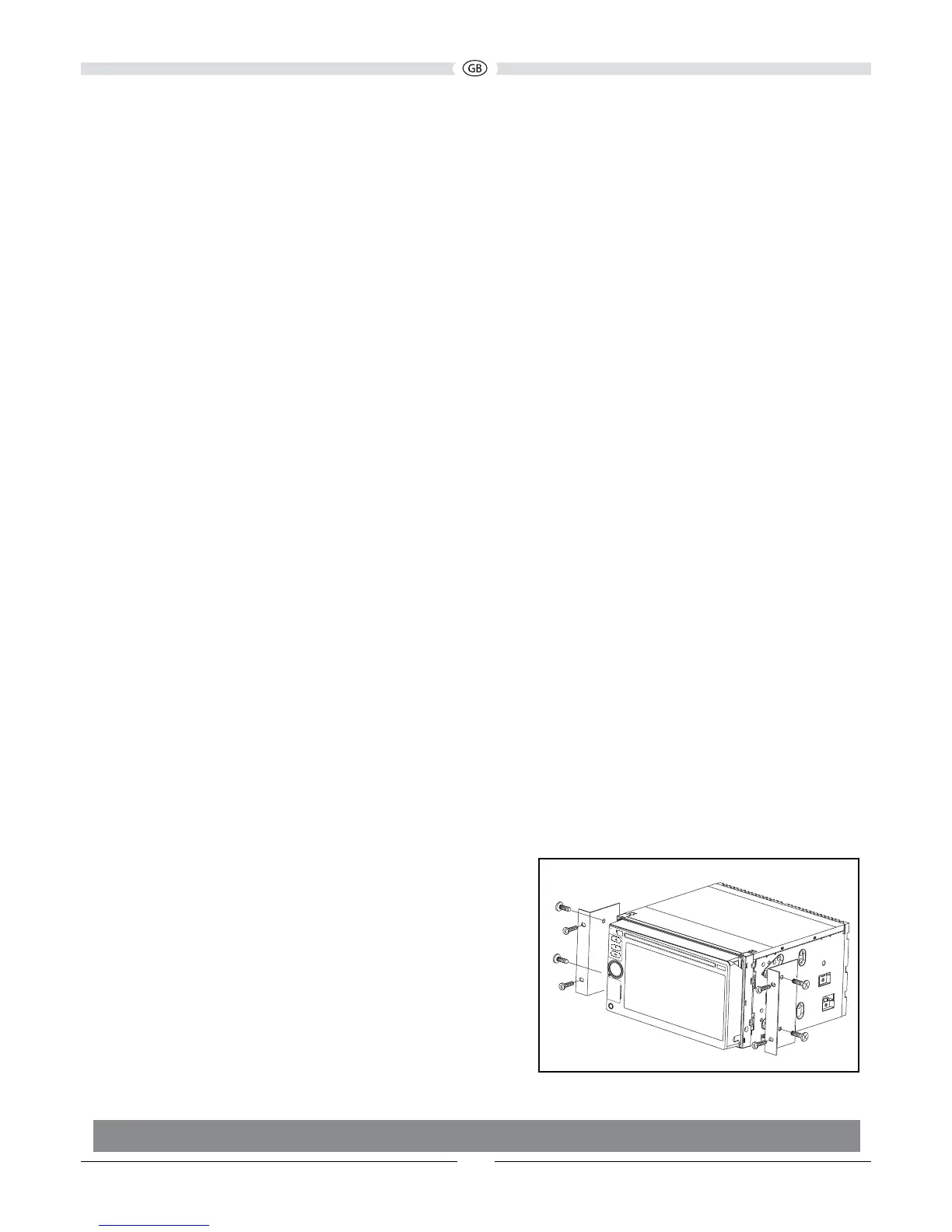

3. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. Follow the wiring
diagram carefully and make certain all connections are secure and insulated with wire nuts or electrical
tape. After completing the wiring connections, plug the
ISO connectors into the mating sockets on the rear of the
FKDVVLV7XUQWKHXQLWRQWRFRQ¿UPRSHUDWLRQYHKLFOHLJQLWLRQ
switch must be “on”). If the unit does not operate,
re-check all wiring until the problem is corrected.
4. Mount the new radio assembly to the dashboard or center
console using the reverse procedure in step 1.
CAUTION! Be careful not to damage the car wiring.
NOTE: It is the end-users responsibility to install and operate this unit in a
manner in accordance with local, state and federal laws. The PARKING
BRAKE wire MUST BE CONNECTED as directed in the manual.
CAUTION! Do not block the cooling fan exit. If blocked, the unit may overheat and become damaged.
What’s in the Box
VME 9425 Head Unit
Left and Right Double DIN Mounting Brackets
Double DIN Half Sleeve Install Bracket
Custom Cosmetic Trim Ring
Hardware Bag
Speaker Output Harness
Power Input Harness
Accessory Harness
External Microphone
Owner’s Manual
Installation Guide
NAV 104 Interface Harness
Tools and Supplies
You will need these tools and supplies for installation:
7RU[W\SHÀDWKHDGDQG3KLOLSVVFUHZGULYHUV
Wire cutters and strippers
Tools to remove existing radio (screw driver, socket wrench
set or other tools)
Electrical tape
Crimping tool
Volt meter/test light
Crimp connections
18 gauge wire for power connections
16 – 18 gauge speaker wire
WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions.
