Installation Using Half-Sleeve
1. Install half-sleeve in the dashboard.
a. Install adapter if necessary (optional).
b. Install half-sleeve into adapter or dashboard (use only the supplied
screws). Do not force the sleeve into the opening or cause it to bend
or bow.
WARNING! Only connect the unit to a 12-volt power supply with
proper grounding.
c. Locate the series of bend-tabs along the top, bottom and sides of the
mounting sleeve. With the sleeve fully inserted into the dashboard
opening, bend as many of the tabs outward as necessary so that the
VOHHYHLV¿UPO\VHFXUHGWRWKHGDVKERDUG
2. Use the M5 x 6 screws (provided) to install the mounting brackets to each
side of the radio using the holes indicated in the diagram. DO NOT USE
OTHER SCREWS.
3. Place the radio in front of the dashboard opening so the wiring can be
brought through the mounting sleeve.
4. Complete wiring as illustrated in the wiring diagram. Once the wiring is
complete, reconnect the battery negative terminal. If there is no ACC
available, connect the ACC lead to the power supply with a switch.
CAUTION! Be careful not to damage the car wiring.
5. $IWHUFRPSOHWLQJWKHZLULQJFRQQHFWLRQVWXUQWKHXQLWRQWRFRQ¿UP
operation (ignition switch must be on). If unit does not operate, recheck all
wiring until problem is corrected.
Once proper operation is achieved, turn off the ignition switch
DQGSURFHHGZLWK¿QDOPRXQWLQJRIWKHFKDVVLV
a. Connect wiring adapter to existing wiring harness.
b. Connect antenna lead.
c. Carefully slide the radio into the half-sleeve, making sure it is right-
side-up. Use the supplied screws to attach the radio to the half
sleeve.
Using the Cosmetic Trim Ring
$FRVPHWLFWULPULQJLVSDFNDJHGZLWKWKHKHDGXQLWIRULQVWDOODWLRQÀH[LELOLW\
7KLVXQLWZLOO¿WLQWRPRVWLPSRUWGDVKHVZLWKOLWWOHRUQRPRGL¿FDWLRQWRWKH
dash board/cavity. Some US domestic vehicle dashes will accept a Double-
DIN chassis, but there is usually a small gap between the radio and dash
piece after installation is complete. In this case, use the appropriate trim ring
to conceal any gaps that may be present.
NOTE: For proper operation of the CD/DVD player, the chassis must be
mounted within 30° of horizontal. Make sure the unit is mounted within this
limitation.

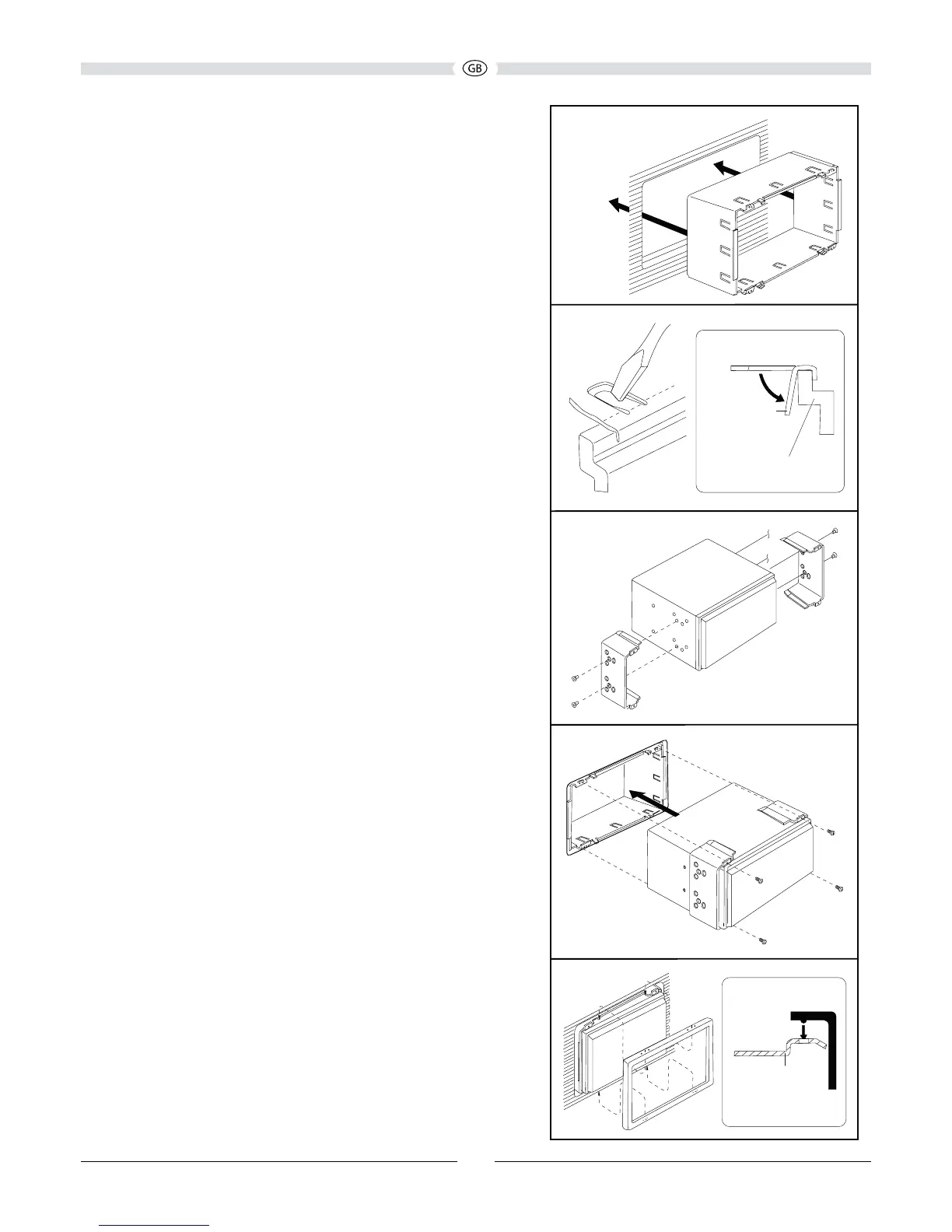

DASHBOARD
TAB
Step 1-b
Step 1-c
Step 2
Step 5-c
MOUNTING
SLEEVE
TRIM RING
