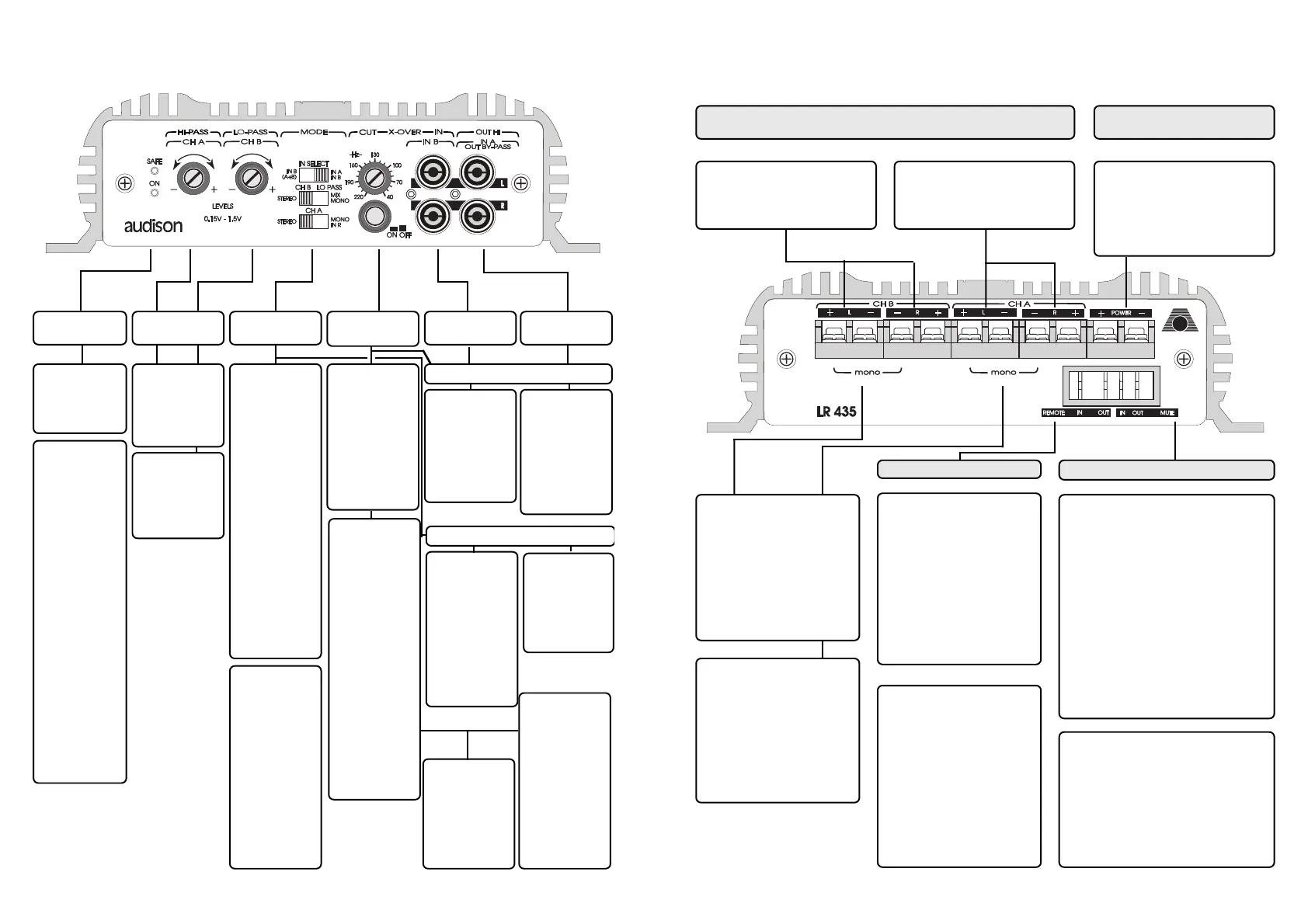

LR 435 - CONFIGURATION OF CONNECTING CLAMPS
CH B
Left and right power outputs for B
channels. Connect speakers
respecting polarity.
CH A
Left and right power outputs for A
channels. Connect speakers
respecting polarity.
POWER
Input clamps for amplifier's power
supply. Connect battery positive and
negative to respective poles as
indicated. Applied voltage must be
between 10 and 15 VDC.
POWER SUPPLY CLAMPS
POWER OUTPUT CLAMPS
REMOTE
MUTE
IN
Input control coming from radio/cas-
sette player (or any source provided
with output for amplifier's mute).
Especially intended for connection to
mute output of cellular phone to
silence amplifier for incoming calls
and reactivate it at the end of phone
conversation. Can also be connected
to MUTE OUT of a preceding
amplifier to grant simultaneous
silencing of all amplifiers in a cascade
connection. Applied voltage must be
between 3 and 16 VDC.
OUT
Output going to other amplifiers in
sound system. Is connected to MUTE
IN of successive amplifier to allow
simultaneous silencing of all
amplifiers connected in cascade.
Available voltage at this output is 12
VDC with current equal to 5 mA.
MONO
Outputs for bridged mono
configuration.
Use when B channels have
been selected for MONO IN
R mode by switch on
amplifier's front panel.
MONO
Outputs for bridge mono
configuration.
Use when A channels have
been selected for MONO IN
R mode by switch on
amplifier's front panel.
OUT
Output for connecting other
amplifiers in the sound
system.
Is connected to REMOTE IN
of the successive amplifier
to provide for its activation.
Available voltage at this
output is 12 VDC with
current equal to 250 mA.
IN
Turn-on control coming from
radio/cassette player (or any
source provited with remote
output for controlling
amplifiers).
Applied voltage must be
between 3 and 16 VDC.
