TECHNICAL FEATURES
10
POWER SUPPLY
Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ÷ 15 VDC
Idling current: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 A
Idling current when off: . . . . . . . . . . . . . . . 0.02 mA
Consumption @ 13.8 VDC
(Max Musical Power):
- A config.(see Output Power): . . . . . . . . . . . . 11 A
- B/C config.(see Output Power): . . . . . . . . . 18.5 A
AMPLIFIER STAGE
Distortion – THD (1kHz): . . . . . . . . . . . . . . . 0.009 %
Bandwidth (-3dB): . . . . . . . . . . . . . . . . 4 Hz ÷ 85 kHz
S/N ratio (A weighed @ 1V): . . . . . . . . . . . . . 105 dB
Damping factor (1 kHz, 4 Ohms): . . . . . . . . . . . 240
Input sensitivity: . . . . . . . . . . . . . . . . . 0.2 ÷ 5 VRMS
Input impedance:. . . . . . . . . . . . . . . . . . . . 15kOhms
Load impedance:
- 2 Ch. stereo: . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Ohms
- 1 Ch. mono in bridge: . . . . . . . . . . . . . . . . 4 Ohms
Nominal output power (RMS)
NP @ 12VDC; THD 0.3%: . . . . . . 70W x 2 (4 Ohms)
Output power (RMS) @ 13.8 VDC;THD 1%
- A config.: . . . . . . . . . . . . . . . . . . . 80W x 2 (4 Ohms)
- B config.: . . . . . . . . . . . . . . . . . . 110W x 2 (2 Ohms)
- C config.: . . . . . . . . . . . . . . . . . . 220W x 1 (4 Ohms)
FILTERS/INPUTS
IN L/R: Bypass/ 12dB/Oct. Hi-Pass/Lo-Pass.
(40 ÷ 500 Hz/400 ÷ 5000 Hz)
Pre Out: Bypass/ 12dB/Oct. Hi-Pass/Lo-Pass.
(40 ÷ 500 Hz/400 ÷ 5000 Hz)
Inputs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IN L-R
OTHER FUNCTIONS
Remote IN: . . . . . . . . . . . . . . . . . . 7 ÷ 15 VDC – 1 mA
Remote OUT: . . . . . . . . . . . . . . . . . . 12 VDC – 10 mA
Auxiliary power supply (PPS):. ±12 VDC – 300 mA
Fuse: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 A
MAX SIZE (L x H x D): 176X56X260 mm
WEIGHT:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 kg
119 mm
272 mm
176 mm
300 mm

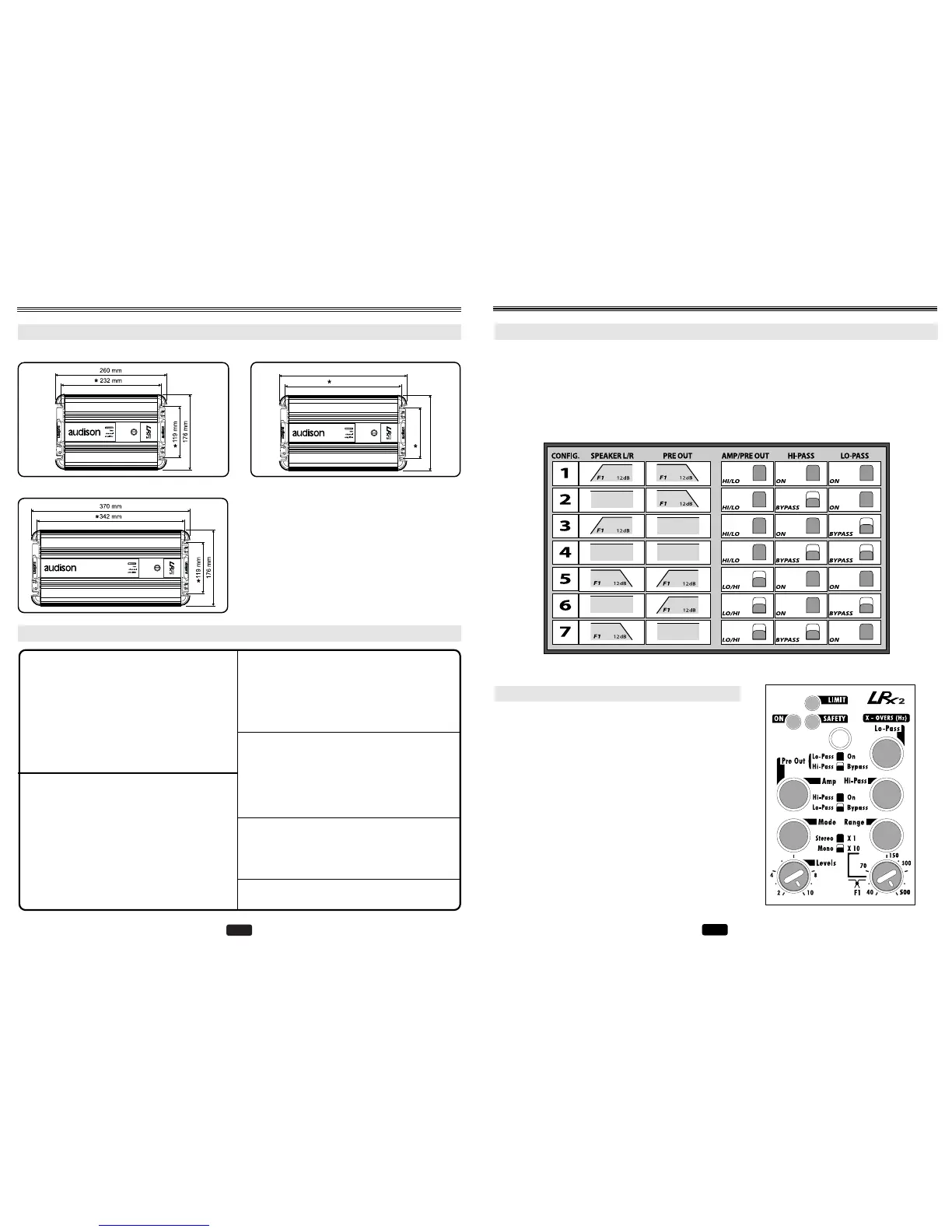

SIZE FOR FIXING
LRx 2.150 LRx 2.250
LRx 2.500
LRx 2.150
Drilling dimensions for fixing
*
15
CONFIGURATIONS
CONFIGURATIONS TABLE
CONTROLS PANEL DIAGRAM
LRX 2 models can be configured as follows:
Config. 1 = Speaker L-R (Hi 12 dB); Pre Out (Lo 12 dB)
Config. 2 = Speaker L-R (Full Range); Pre Out (Lo 12 dB)
Config. 3 = Speaker L-R (Hi 12 dB); Pre Out (Full Range)
Config. 4 = Speaker L-R (Full Range); Pre Out (Full Range)
Config. 5 = Speaker L-R (Lo 12 dB); Pre Out (Hi 12 dB)
Config. 6 = Speaker L-R (Full Range); Pre Out (Hi 12 dB)
Config. 7 = Speaker L-R (Lo 12 dB); Pre Out (Full Range)
