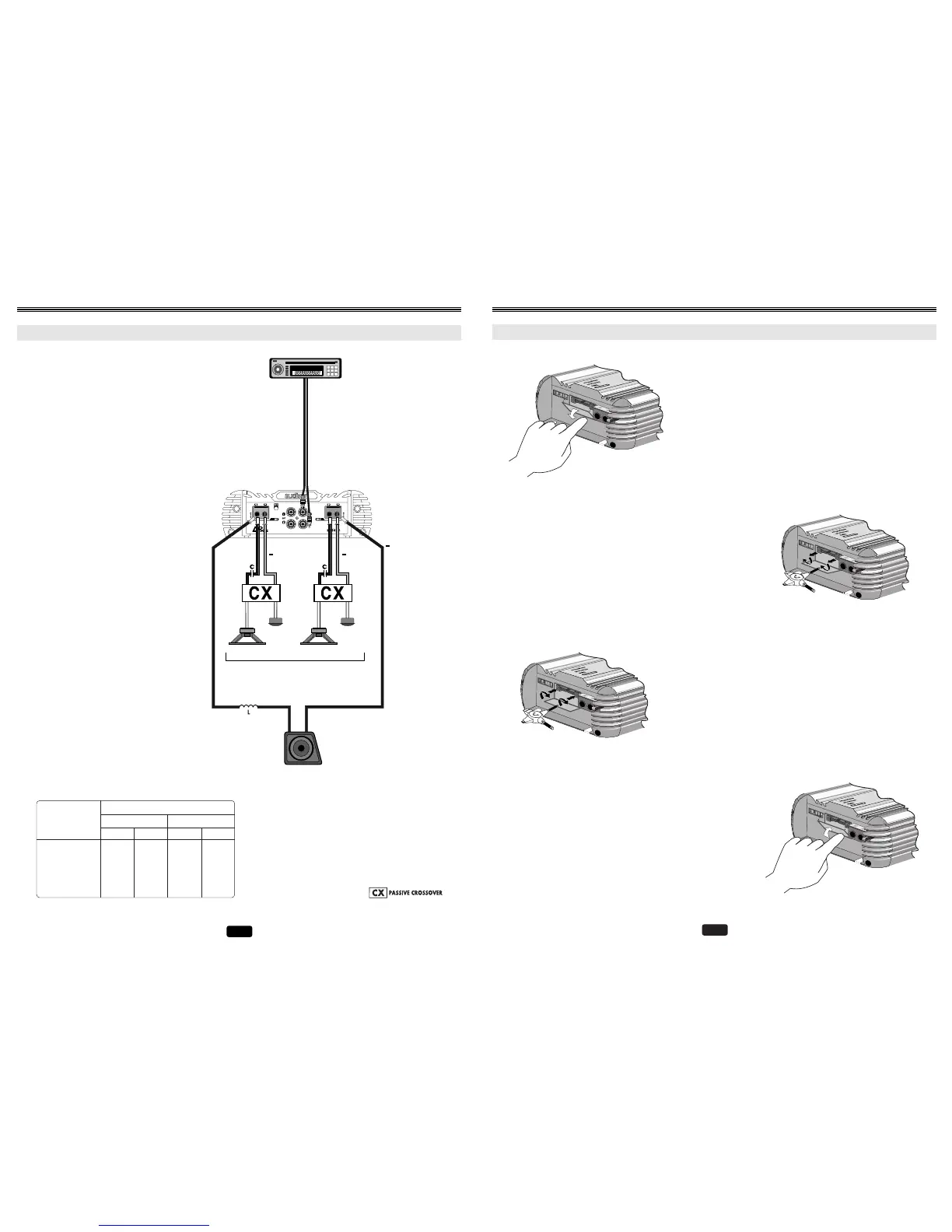

POWER SUPPLY PANEL
1 - Open the transparent cover by pushing the two teeth in
its lowest corners to the direction indicated by the arrows.
4 - Close the transparent cover.
3 - Check the value of the new fuse to assemble, then fix it by
gradually and alternately fastening the two screws. This will
avoid voltage drops along the line and will make the device
perfect functioning easier.
2 - Remove the screws which fasten the fuse to eliminate
pieces of the broken one; prevent them from going into the
device.
FUSE REPLACEMENT
18
CONFIGURATION EXAMPLES
FREQUENCY
Hertz
SPEAKERS IMPEDANCE
4 Ohms
8 Ohms
L (mH)
C (µF)
L (mH)
C (µF)
60
80
100
120
150
10.6
7.9
6.4
5.3
4.3
660
495
400
330
265
21.0
15.9
12.7
10.6
8.5
330
245
200
165
132
Pre Out
+ +
LRx 2
Config. 2/4/6
Front
Woofer
Tweeter
Woofer
Tweeter
Subwoofer
+
FRONT+SUB (TRIMODE)
