August DVB500 - Part Names and Functions; Front Panel; Left Side; Back Panel

-1-
English

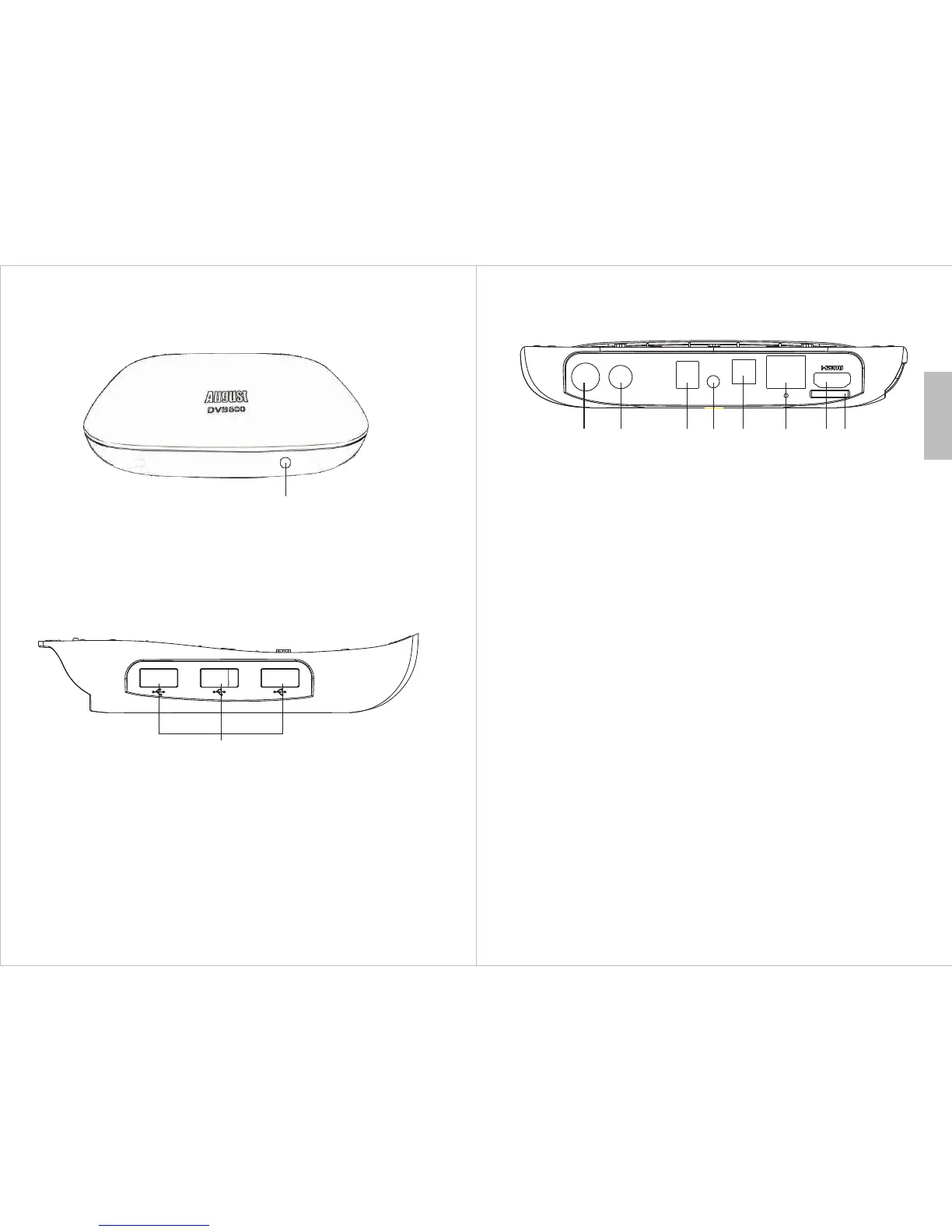

1.1 Front Panel
2
2. USB ports
1.3 Back Panel
3. RF in (antenna input)
4. RF Loop through Port
5. Power DC in
6. A/V out
1. Part Names and Functions
RF IN
RF OUT
DC IN
AV OUT OPTICAL
LAN
RESET
TF
3 4 5 6 7 8 109
7. Audio Optical out
8. Network interface
9. HDMI out
10. TF card reader
1
1. Status LED
1.2 Left Side
-2-
