Function active
<Speed profile> function activated.
8.2.2. Operation mode for speed profile: set
The speed values set at pivot points can be set identically or individually for both
operation directions (OPEN/CLOSE).
Customer settings M0041
Speed profile M2065
Speed profile mode M2116
Default value: Different profile
Setting values:
Different profile
Speed values at each pivot point can be set individually for each operation direction
(OPEN/CLOSE).
Identical profile
Identical speed values for both operation directions.This setting copies the preset
speed values in operation direction OPEN to the pivot points in operation direction
OPEN.

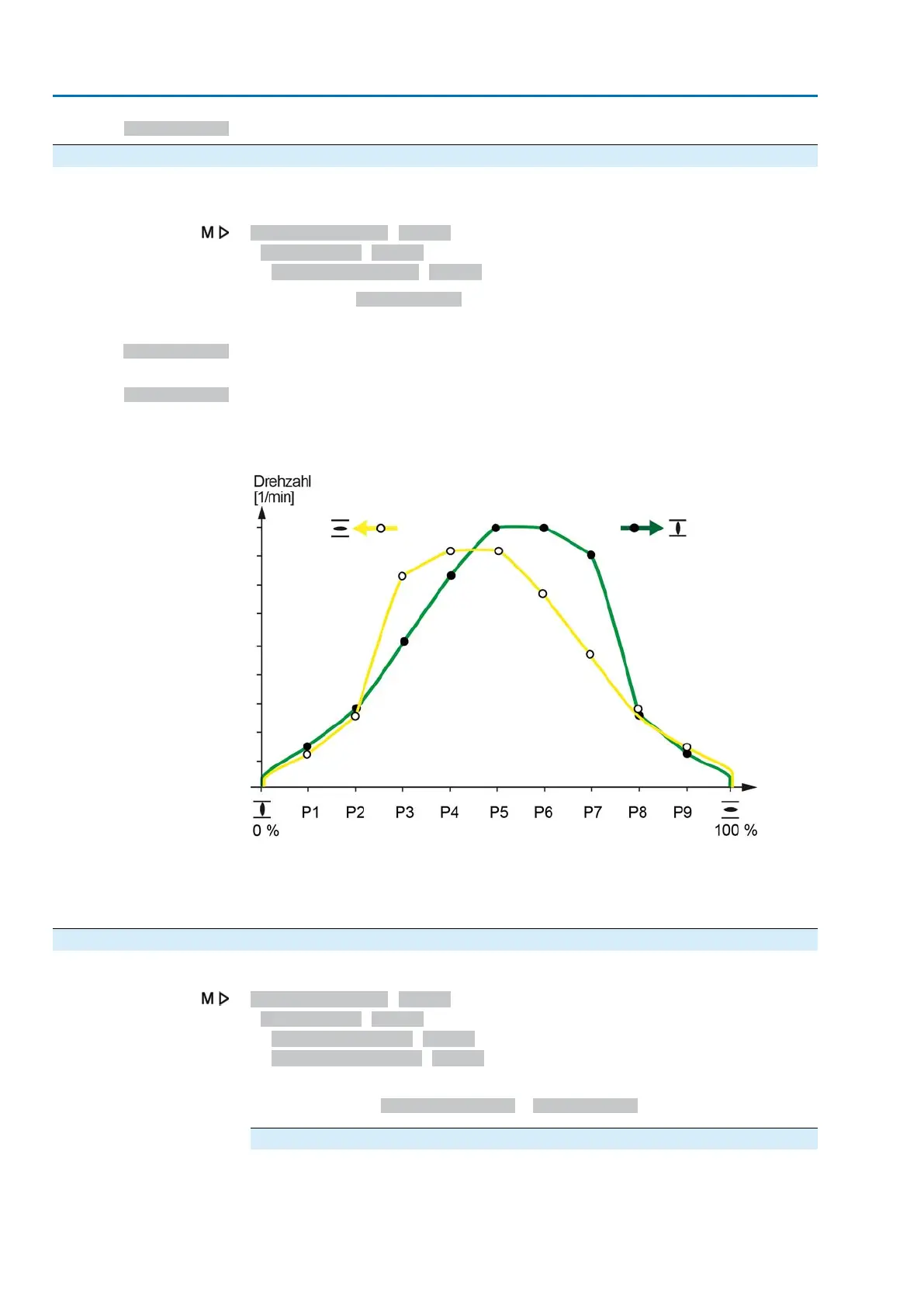

Figure 36: Example: Different speed profile for operation direction OPEN/CLOSE
[P] Pivot points (P1 – P9)
[
●
]
Speed values for operation direction OPEN
[○]
Speed values for operation direction CLOSE
8.2.3. Pivot points for speed profile: define
Up to nine pivot points can be defined for each operation direction (OPEN/CLOSE)
Customer settings M0041
Speed profile M2065
Pivot points OPEN M2067
Pivot points CLOSE M2066
Information
Pivot points in operation direction CLOSE are only visible if the profile is different
(parameter setting Speed profile mode = Different profile).
Activate pivot points
At least one pivot point must be activated to use the speed profile.
54
Actuator controls
Application functions ACV 01.2/ACVExC 01.2 Profibus DP
