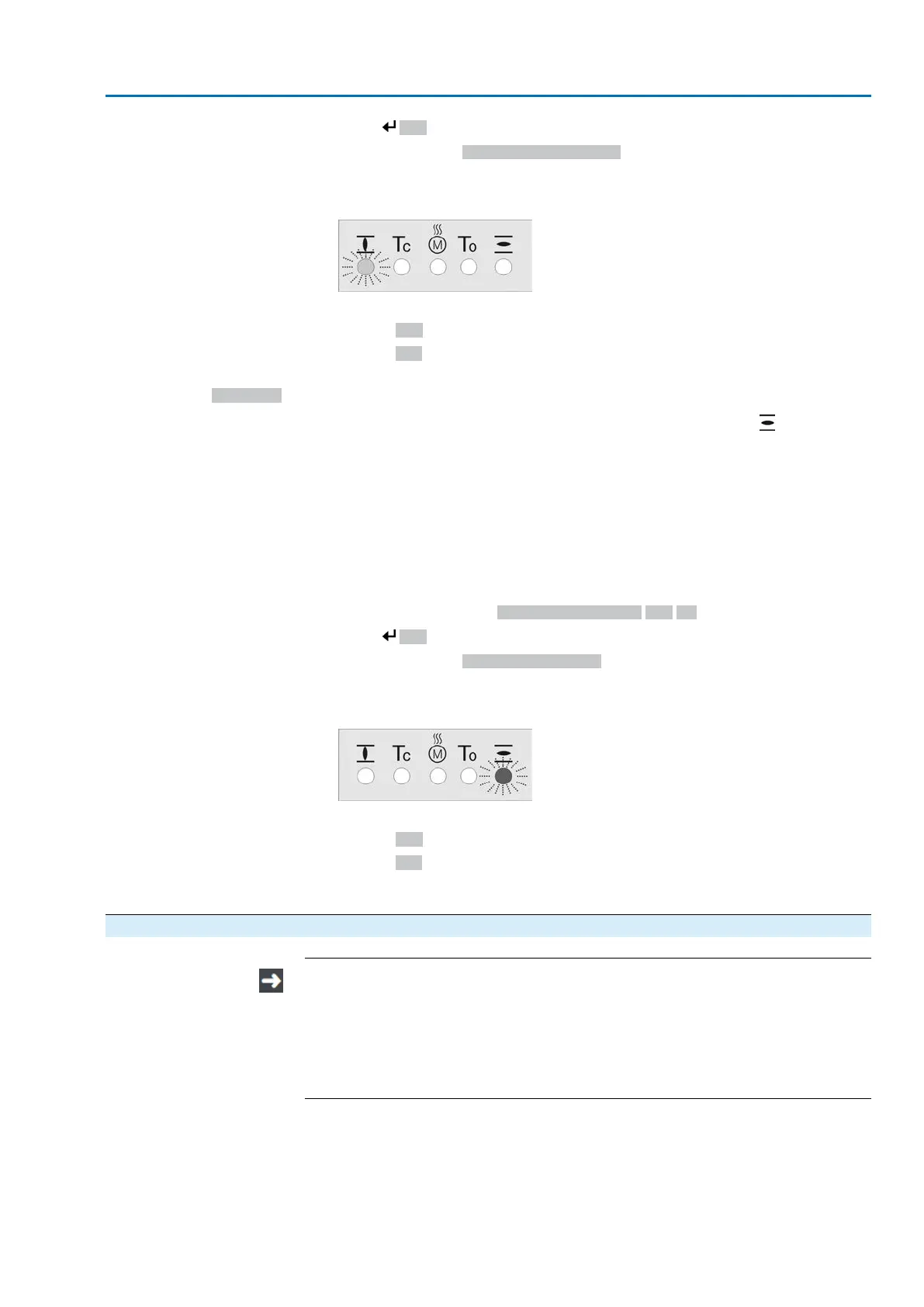

Confirm new end posi-
tion
10.
Press Yes to confirm new end position.
➥
Display indicates: End pos. CLOSED set!
➥
The left LED is illuminated (standard version) and thus indicates that the end
position CLOSED setting is complete.
11. Make selection:
→
Edit → back to step 9: Set end position CLOSED "once again"
→
Esc → back to step 4; either set end position OPEN or exit the menu.
Set end position OPEN
CMD0010
12. Re-set end position OPEN:
12.1 For large strokes: Set selector switch in position Local control (LOCAL)
and operate actuator in motor operation via push button (OPEN) in
direction of the end position.
Information: Stop actuator before reaching end of travel (press STOP
push button to avoid damage.
12.2 Engage manual operation.
12.3 Turn handwheel until valve is open.
12.4 Turn back the handwheel by an amount equal to the overrun.
12.5 Set selector switch to position 0 (OFF).
➥
Display indicates: Set end pos. OPEN? Yes No
Confirm new end posi-
tion
13.
Press Yes to confirm new end position.
➥
Display indicates: End pos. OPEN set!
➥
The right LED is illuminated (standard version) and thus indicates that the end
position OPEN setting is complete.
14. Make selection:
→
Edit → back to step 12: Set end position OPEN "once again"
→
Esc → back to step 4; either set end position CLOSED or exit the menu.
Information
If an end position cannot be set: Check the type of control unit in actuator.
7.3.2. End position setting via stroke
For all applications not allowing to operate the valve during commissioning,
the second end position can be set via the stroke.
→
The basics are the MWG incremental values shown in this chapter.
→
The first end position either OPEN or CLOSED, depending on the valve position
during commissioning, can be set as usual using the limit switching. For this,
refer to page 39, Limit switching: set.
41
Actuator controls
ACV 01.2/ACVExC 01.2 Profibus DP Basic settings for commissioning
